Декодер SBUS в PWM/PPM с поддержкой 16 каналов для настройки через ПК приемников Frsky X8R и RXSR системы управления радиоуправления - купить

Купить SBUS to PWM PPM Decoder 16CH Supporting the PC Settings For Frsky X8R RXSR Receiver Remote Control Radio |

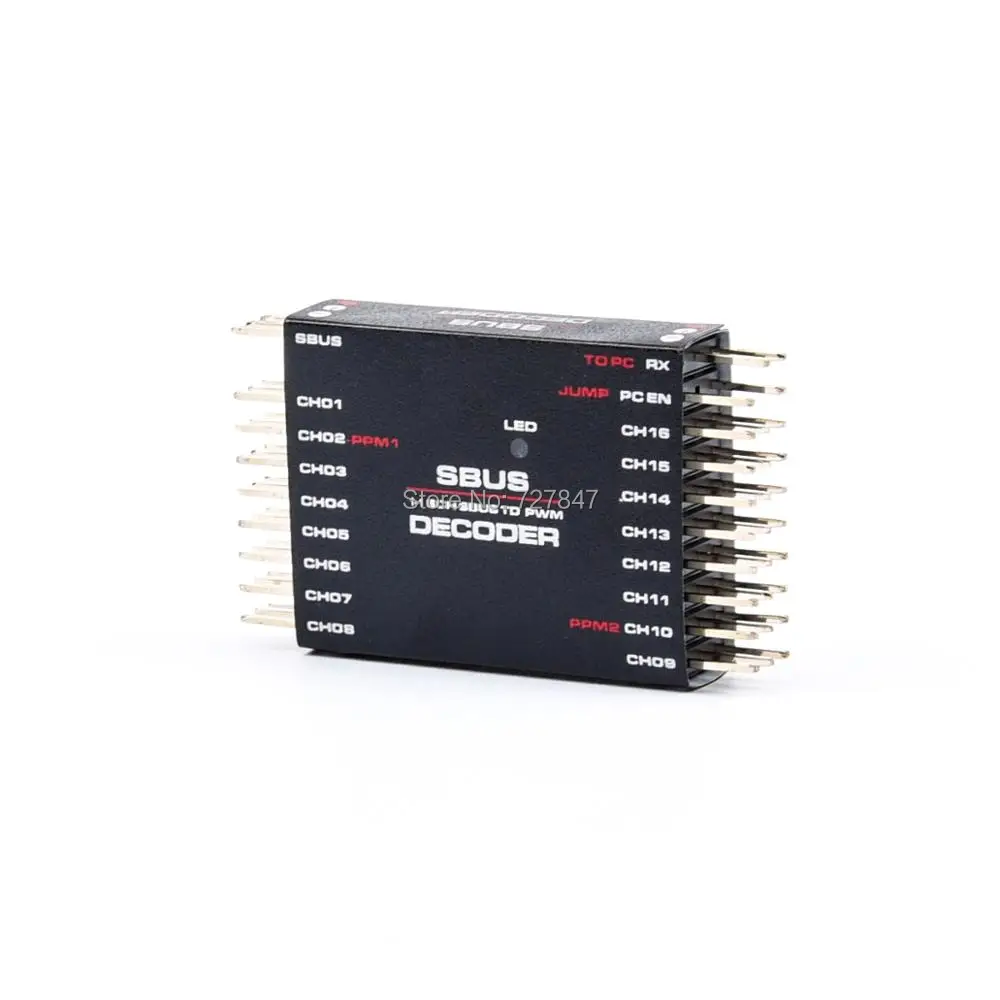

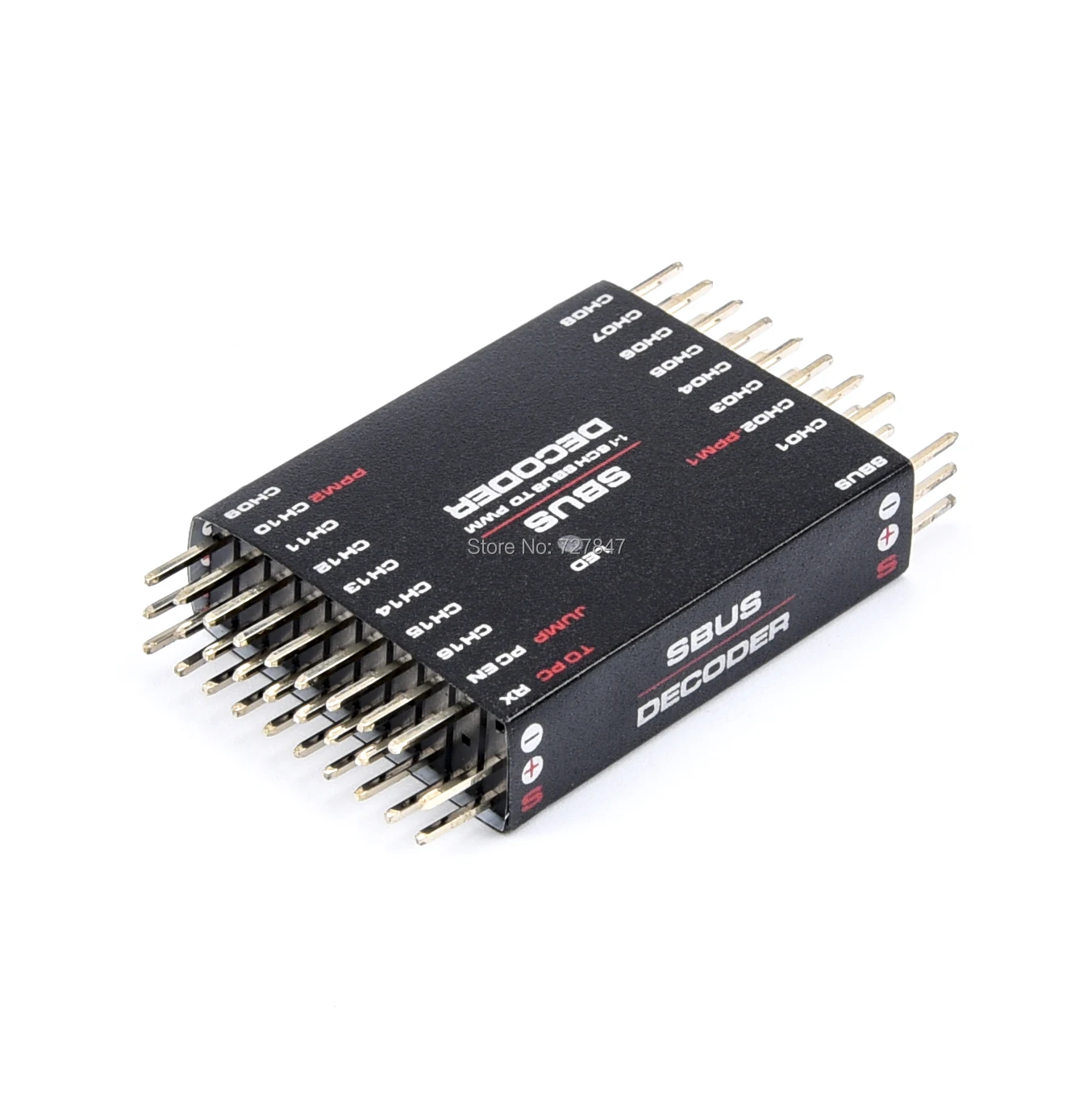

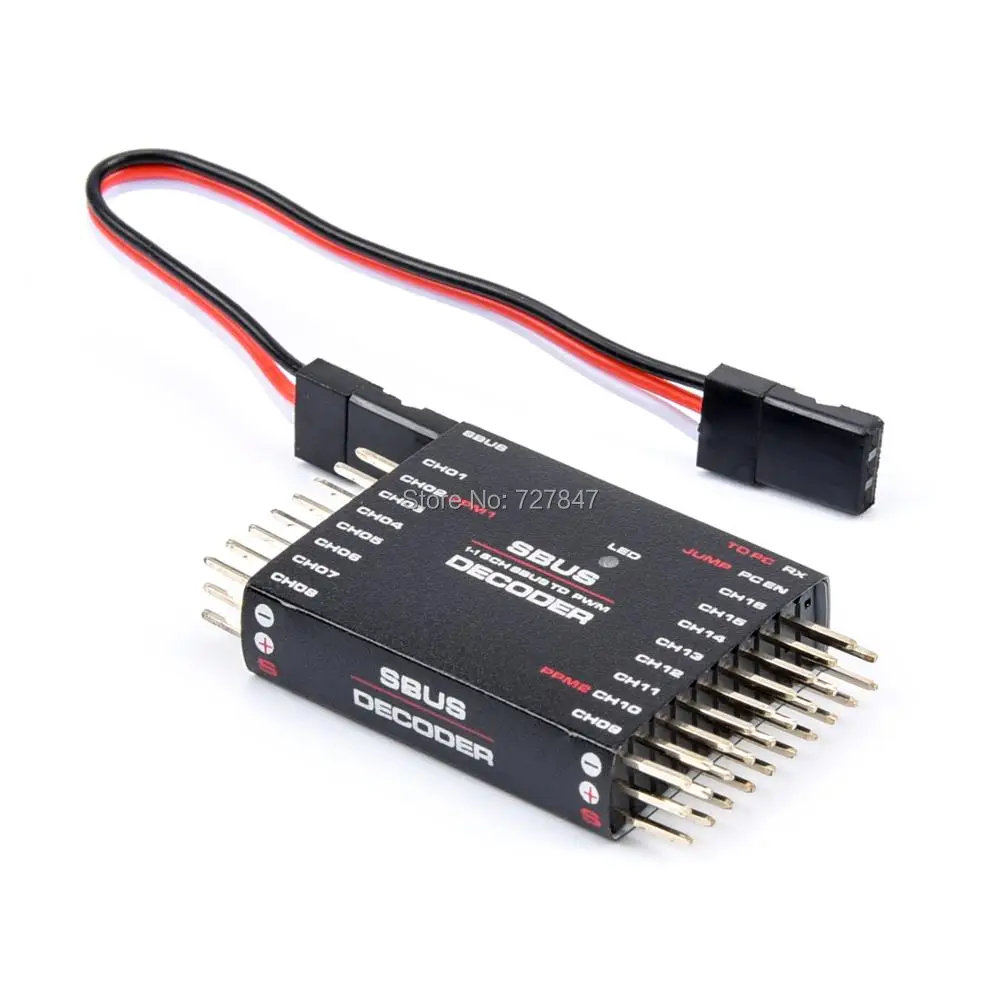

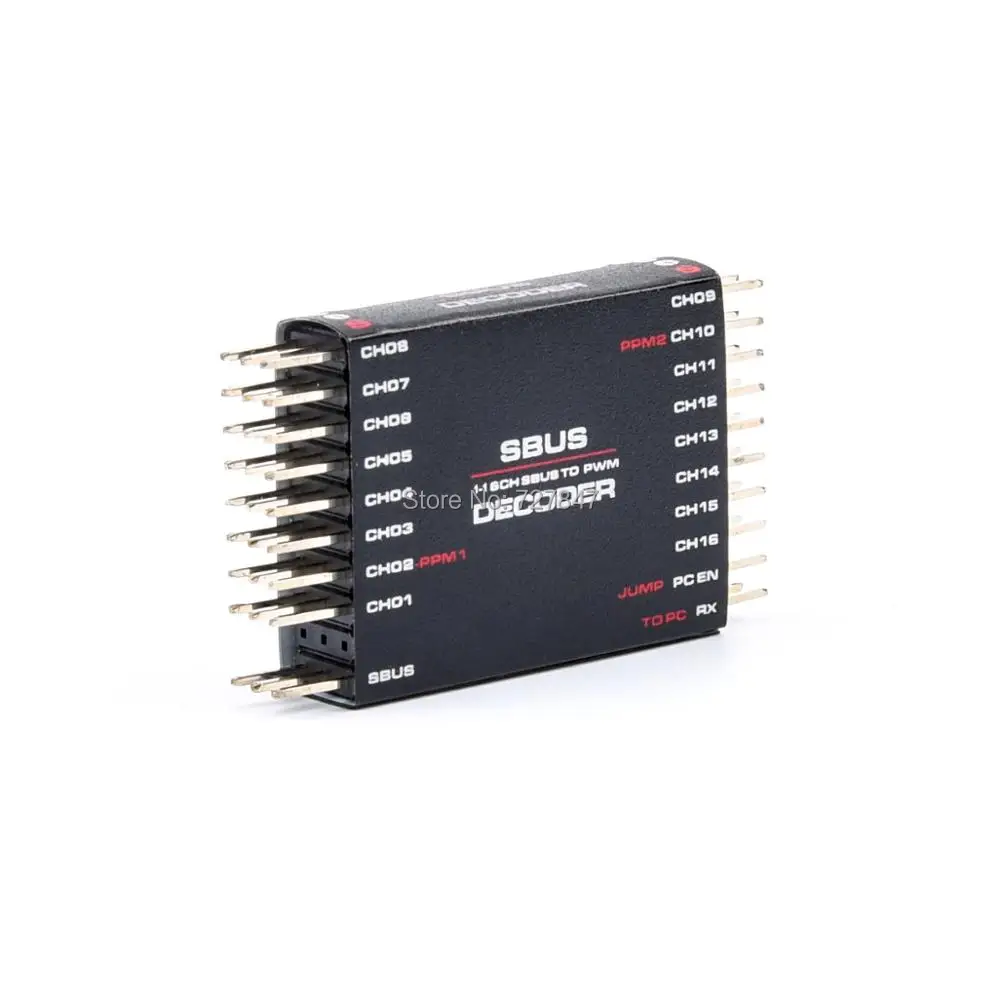

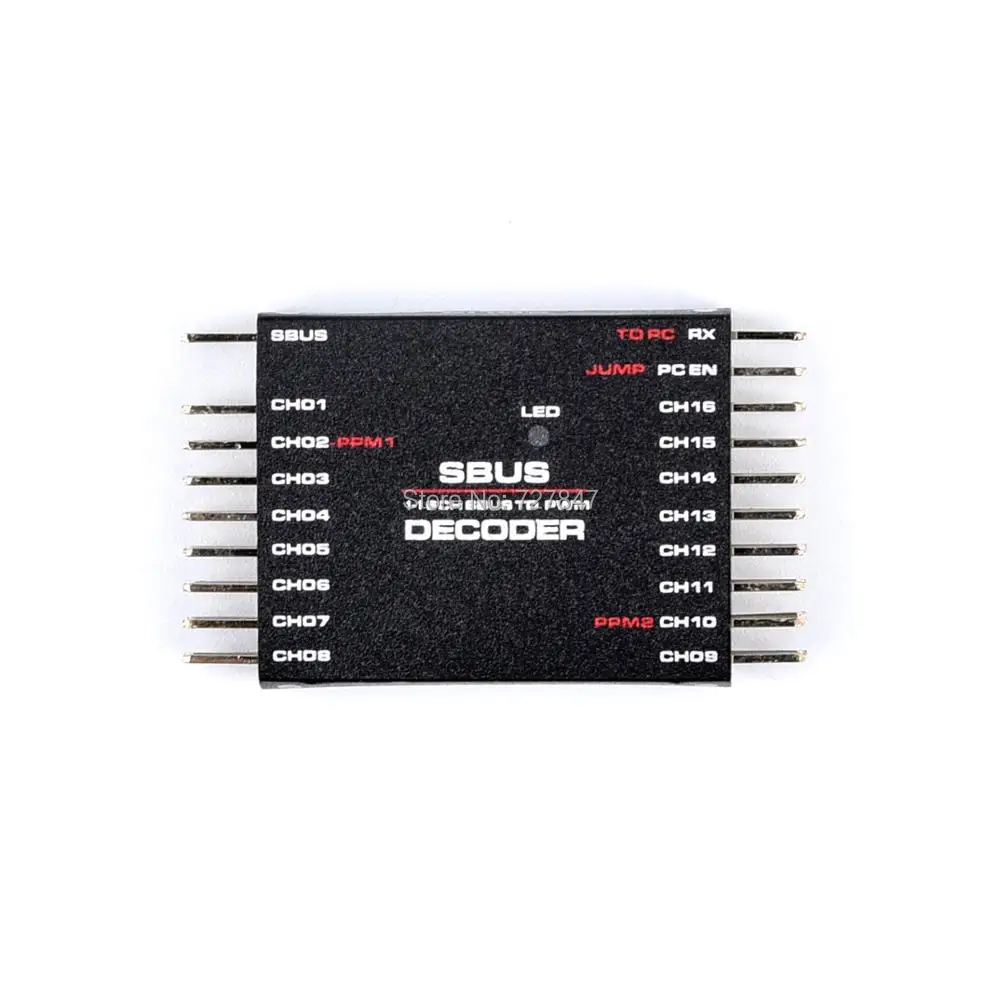

SBUS to PWM/PPM decoder, 16 channel output, supporting the PC Settings.Any port output and any channel data ,can be more ports output 1 or more road signals,  customize all channel output sequence , super perfect SBUS decoder, perfectly supporting decoding futaba, orange, frsky SBUS signal.

Note: You can download the file version from the link below, thank you.

https://www.dropbox.com/s/dom63jjn2z3w44a/SBUS%E8%BD%AC%E6%8D%A2%E5%99%A8%E5%AE%A2%E6%88%B7%E6%96%87%E4%BB%B6.zip?dl=0

Before using this software, please make sure that the PC-EN pin on the decoder is short-

connected with any negative pole (GND), and restart the software Settings after connecting with

FTDI. Pin connection FTDI -- -- SBUS decoder TX -- --RX, VCC -- any positive +, GND - any

negative -.

After CH1-CHB is configured in block A: If PPM is selected, CH2 outputs the whole-channel

PPM.

CH9-CH16 ports are configured in block B. If PPM is selected, the CH10 outputs the whole-

channel PPM.
