Купить 110 Series 500w High power bldc motor high torque brushless 24v BLDC Strong dc 1500rpm | Обустройство дома
42 series 24v 50w 3000rpm bldc motor 57 series 24v 60w 3000rpm bldc motor
|
Item |
Specification |
|
Winding type |
STAR |
|
Hall effect angle/电角度 |
|
|
Shaft runout |
0.025mm |
|
Radial play |
0.05mm/50g |
|
End play |
0.04mm/50g |
|
Max radial force |
30N/20mm from the flange |
|
Max axial force |
20N |
|
Insulation class |
Class B |
|
IP class |
IP40 |
|
Dielectric strength |
500VDC for one minute |
|
Insulation resistance |
100MΩmin 500VDC |
|
Lead No. 序号 |
Lead color 引线颜色 |
Lead gauge 线规 |
Function 功能 |
Description 详细描述 |
|
1 |
Red/红 |
UL3266/28AWG |
VCC +5VDC |
SUPPLY VOLTAGE FOR HALL SENSORS |
|
2 |
Black/黑 |
GND |
GROUND FOR HALL SENSORS |
|
|
3 |
Yellow/黄 |
HALL A |
SIGNAL OF HALL A |
|
|
4 |
Green/绿 |
HALL B |
SIGNAL OF HALL B |
|
|
5 |
Blue/蓝 |
UL3266/20AWG |
HALL C |
SIGNAL OF HALL C |
|
1 |
Yellow/黄 |
PHASE U |
MOTOR PAHSE U |
|
|
2 |
Green/绿 |
PHASE V |
MOTOR PHASE V |
|
|
3 |
Blue/蓝 |
PHASE W |
MOTOR PHASE W |
Electrical Specification
|
型号(Motor Model) |
LK110BL11024 |
LK110BL11031 |
LK110BL14024 |
LK110BL14031 |
LK110BL17031 |
LK110BL23031 |
|
|
极数(Number of Phases) |
|
8 |
8 |
8 |
8 |
8 |
8 |
|
电压(voltage) |
VDC |
24 |
310 |
24 |
310 |
310 |
310 |
|
额定转速(Rated speed) |
rpm |
1500 |
3000 |
1500 |
3000 |
3000 |
3000 |
|
额定转短(Rated torque) |
N.m |
3.2 |
3.2 |
4.8 |
4.8 |
6.4 |
9.6 |
|
额定电流(Rated current) |
Amps |
28 |
4.2 |
42 |
6.3 |
8.4 |
12.6 |
|
额定功率(Rated power) |
Watt |
500 |
1000 |
750 |
1500 |
2000 |
3000 |
|
蜂值转距(Maxtorque) |
N.m |
9.6 |
9.6 |
14.4 |
14.4 |
19.2 |
28.8 |
|
转短常数(Torque constant) |
N.m/Amps |
0.12 |
0.79 |
0.12 |
0.79 |
0.79 |
0.76 |
|
反电势常数(Back EMF) |
V/Krpm |
8.4 |
55 |
8.5 |
55 |
55 |
55 |
|
转子惯量(Rotor inertia) |
Kg.mm2 |
730 |
730 |
1100 |
1100 |
1460 |
2200 |
|

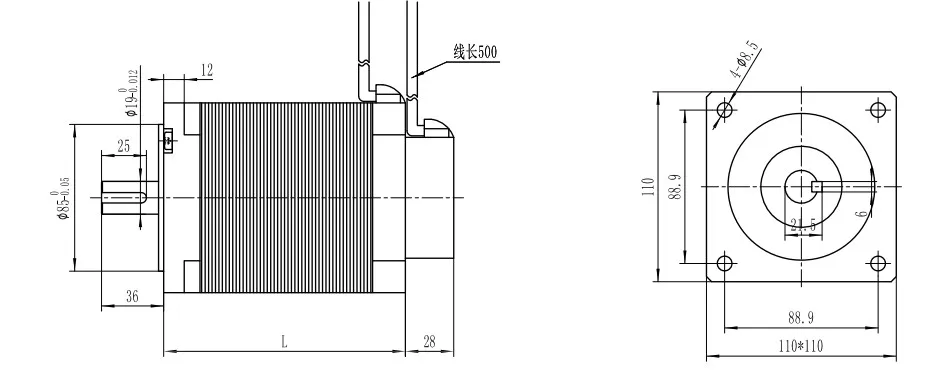

机身长L |
mm |
110 |
110 |
140 |
140 |
170 |
230 |
|
重量(Weight) |
Kg |
4.5 |
4.5 |
5.5 |
5.5 |
7 |
9 |
