Купить CKT10000A CKT8000 LCR Meter with High Frequency Digital RLC Component Tester ESR | Инструменты

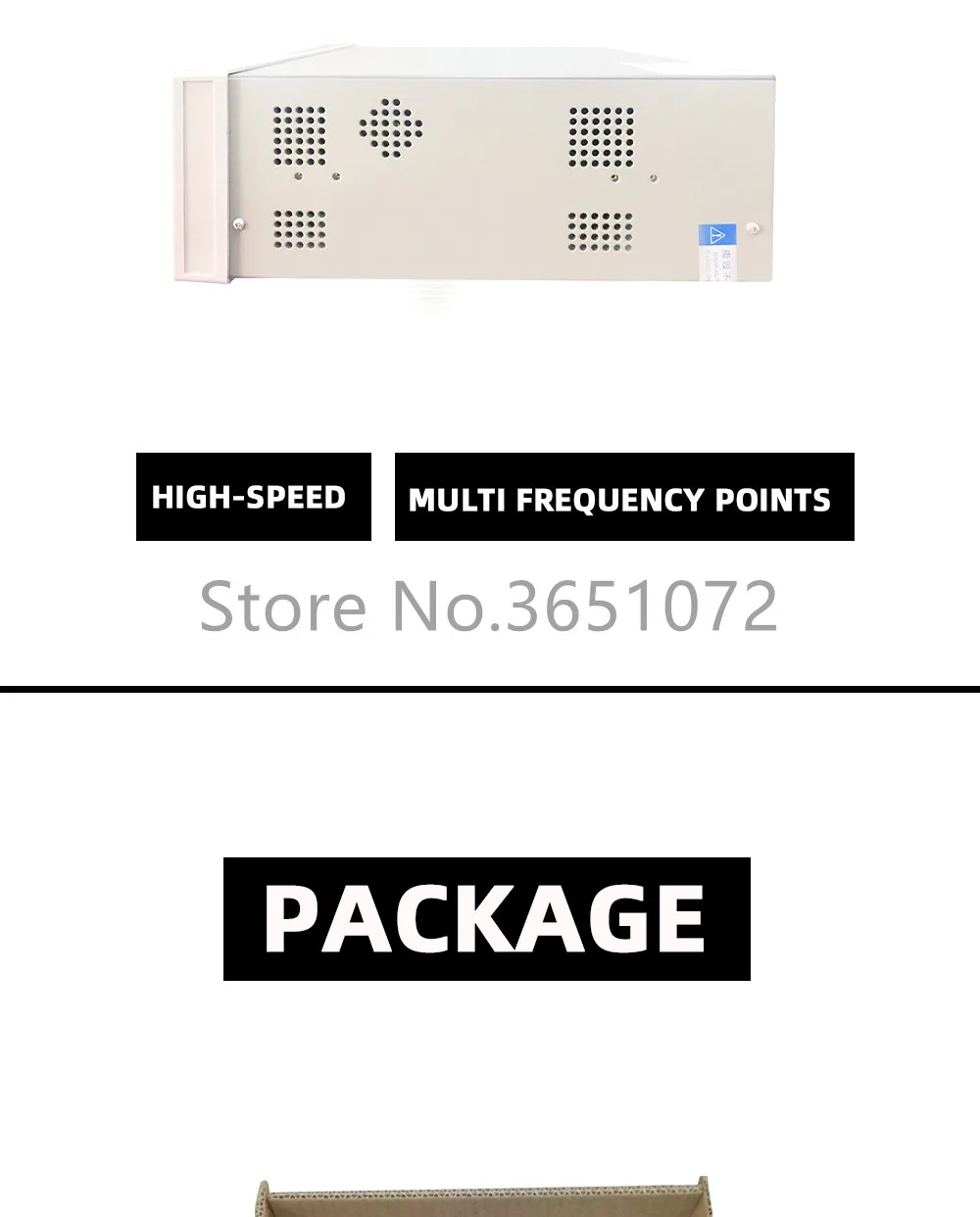

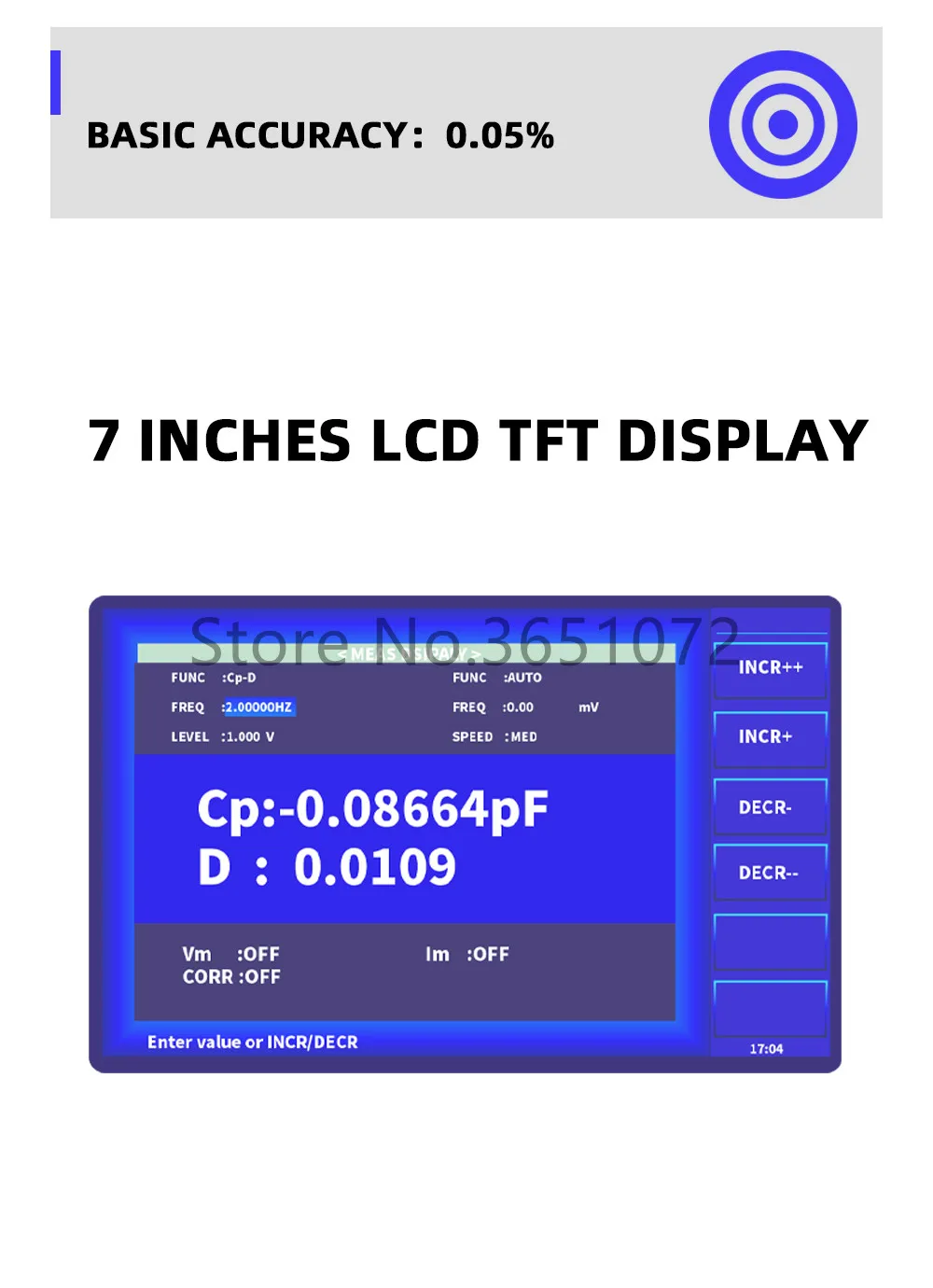

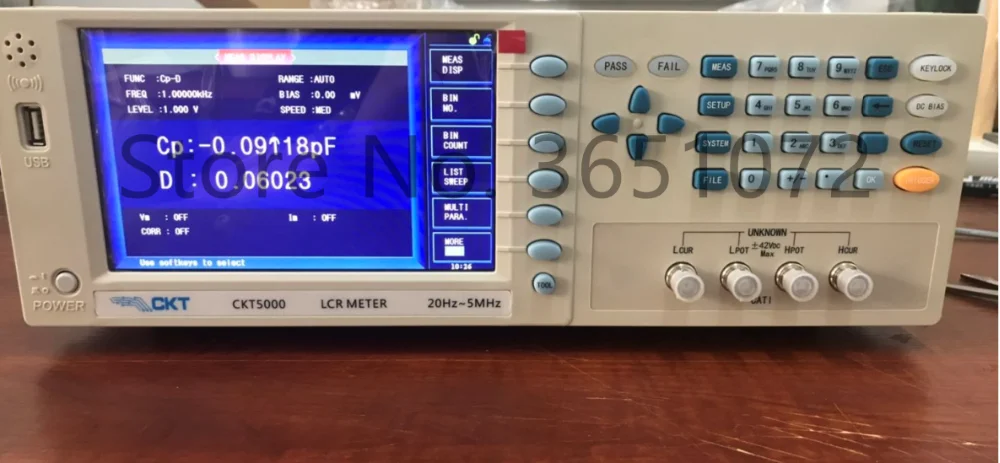

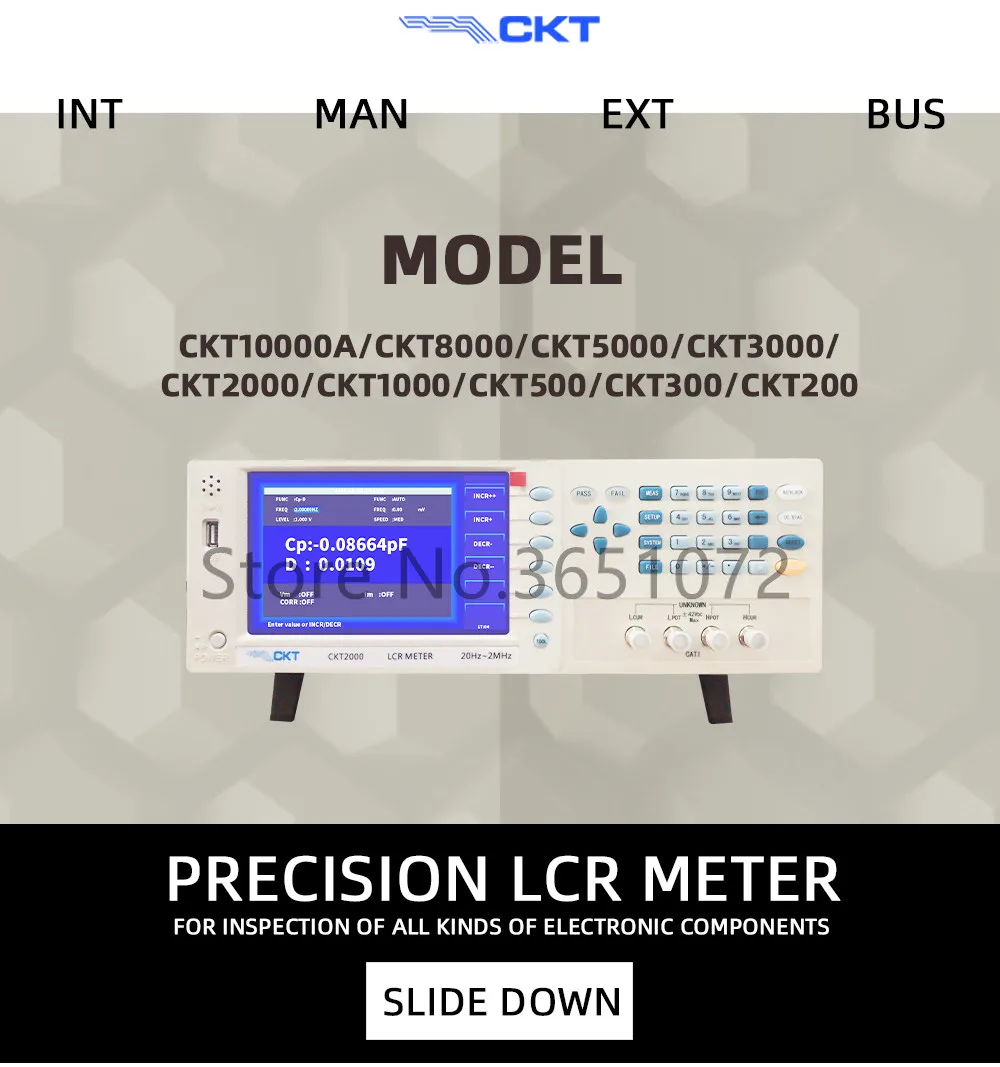

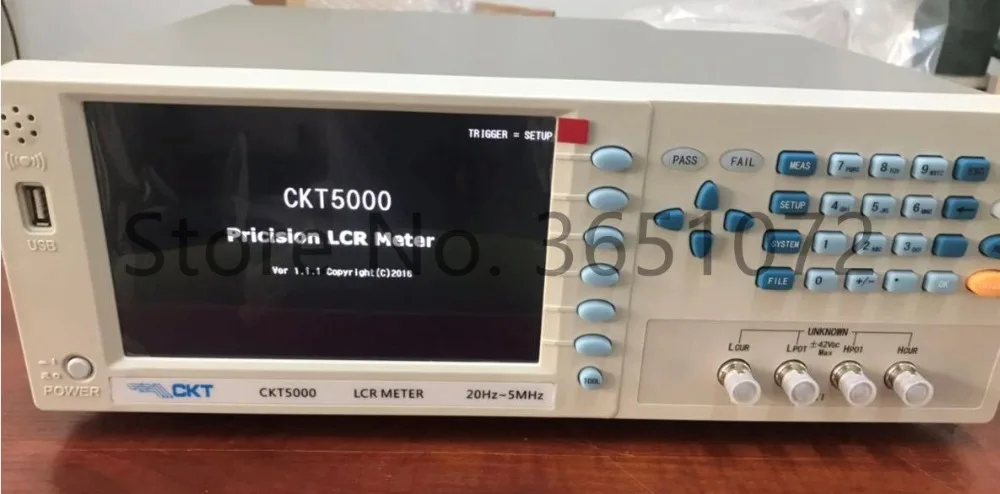

CKT10000A/CKT8000/CKT5000/CKT3000/CKT2000/CKT1000/CKT500/CKT300/CKT200 is precision LCR meter for inspection of all kinds of electronic components. Using 7 inches LCD TFT display. It is a high-speed, broadband, 6-bit test resolution of the impedance measuring instrument, multi frequency points and 0.05% accuracy can meet the requirements of various occasions’ component parameters detection. It is a high cost of quality testing equipment.

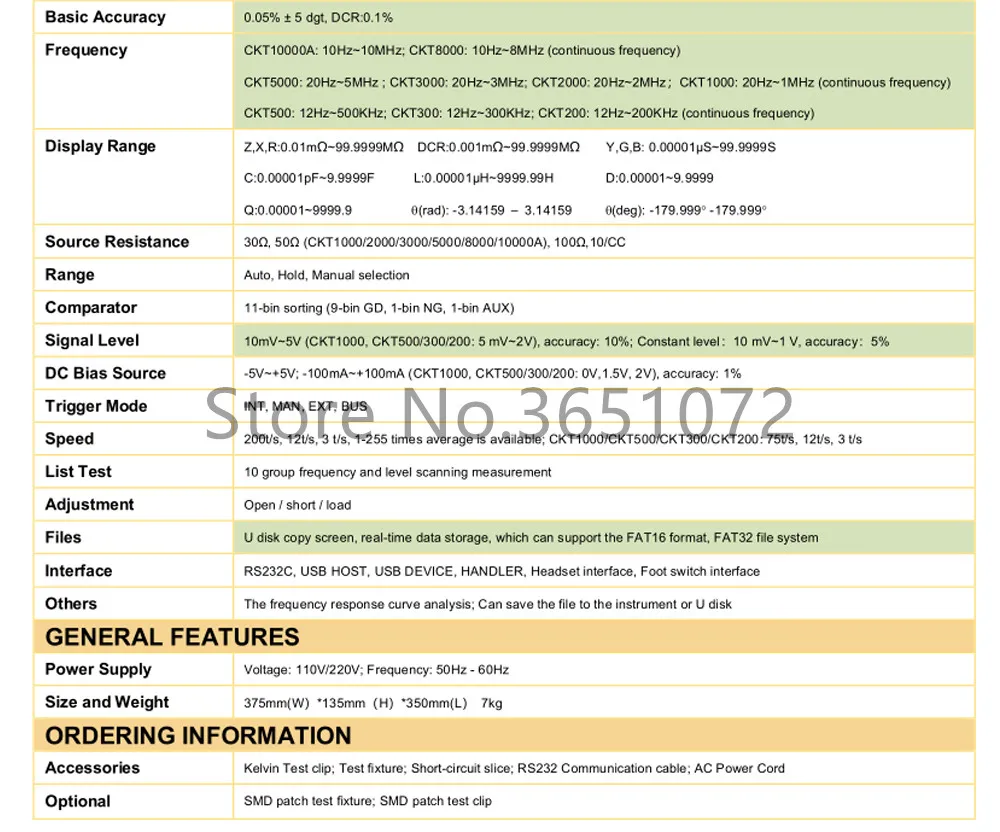

SPECIFICATIONS
	CKT10000A/CKT8000/CKT5000/CKT3000/CKT2000/CKT1000/CKT500/CKT300/CKT200 Precision Digital LCR Meter
Parameters	\| Z\|, \|Y\|, C, L, X, B, R, G, D, Q, θ, DCR
Display Mode	Direct，Δ，Δ%，V/I
Basic Accuracy	0.05% ± 5 dgt, DCR:0.1%
Frequency	CKT10000A: 10Hz~10MHz; CKT8000: 10Hz~8MHz(continuous frequency) CKT5000: 20Hz~5MHz; CKT3000:20Hz~3MHz; CKT2000: 20Hz~2MHz；CKT1000: 20Hz~1MHz (continuous frequency) CKT500: 12Hz~500KHz; CKT300: 12Hz~300KHz; CKT200: 12Hz~200KHz (continuous frequency)
Display Range	Z,X,R:0.01mΩ~99.9999MΩDCR:0.001mΩ~99.9999MΩY,G,B: 0.00001µS~99.9999S C:0.00001pF~9.9999FL:0.00001µH~9999.99HD:0.00001~9.9999 Q:0.00001~9999.9q(rad): -3.14159 – 3.14159q(deg): -179.999° -179.999°
Source Resistance	30Ω, 50Ω (CKT1000/2000/3000/5000/8000/10000A), 100Ω,10/CC
Range	Auto, Hold, Manual selection
Comparator	11-bin sorting (9-bin GD, 1-bin NG, 1-bin AUX)
Signal Level	10mV~5V (CKT1000, CKT500/300/200: 5 mV~2V), accuracy:10%; Constant level：10 mV~1 V, accuracy：5%
DC Bias Source	-5V~+5V; -100mA~+100mA (CKT1000, CKT500/300/200: 0V,1.5V, 2V), accuracy: 1%
Trigger Mode	INT, MAN, EXT, BUS
Speed	200t/s, 12t/s, 3 t/s, 1-255 times average is available; CKT1000/CKT500/CKT300/CKT200: 75t/s, 12t/s, 3 t/s
List Test	10 group frequency and level scanning measurement
Adjustment	Open / short / load
Files	U disk copy screen, real-time data storage, which can support the FAT16 format, FAT32 file system

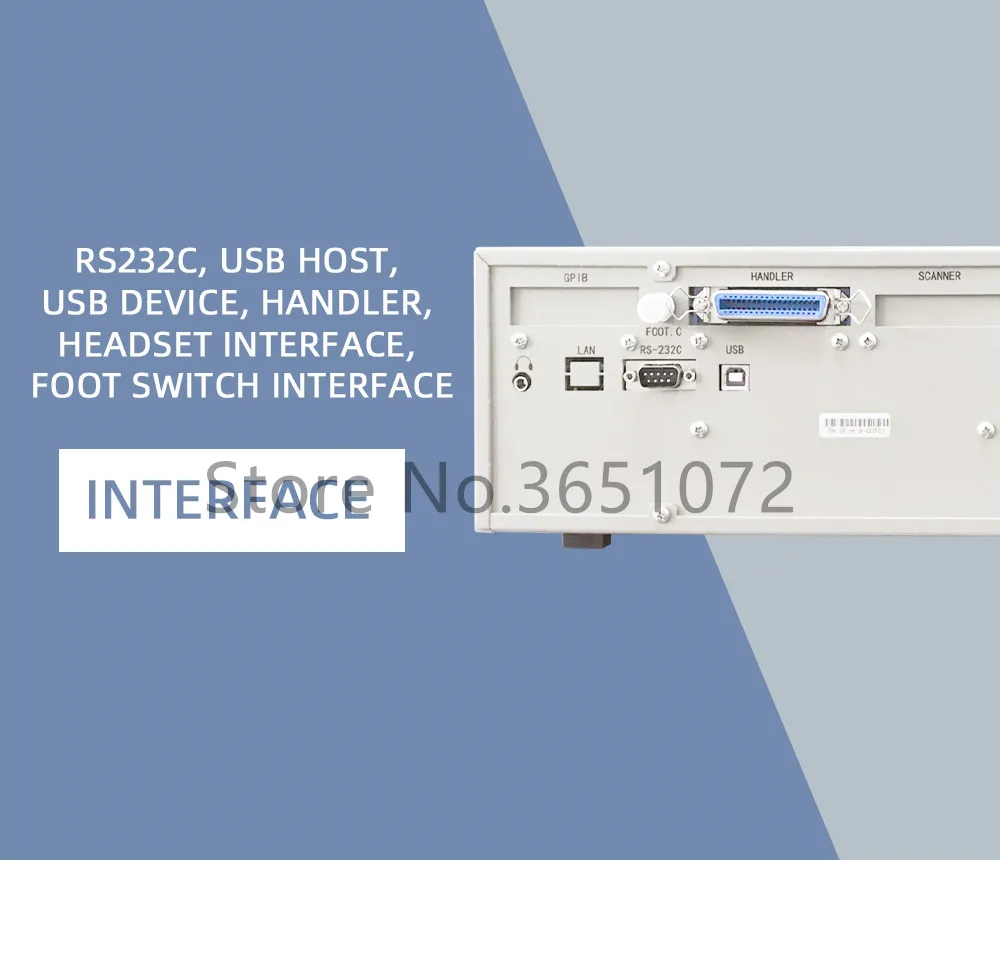

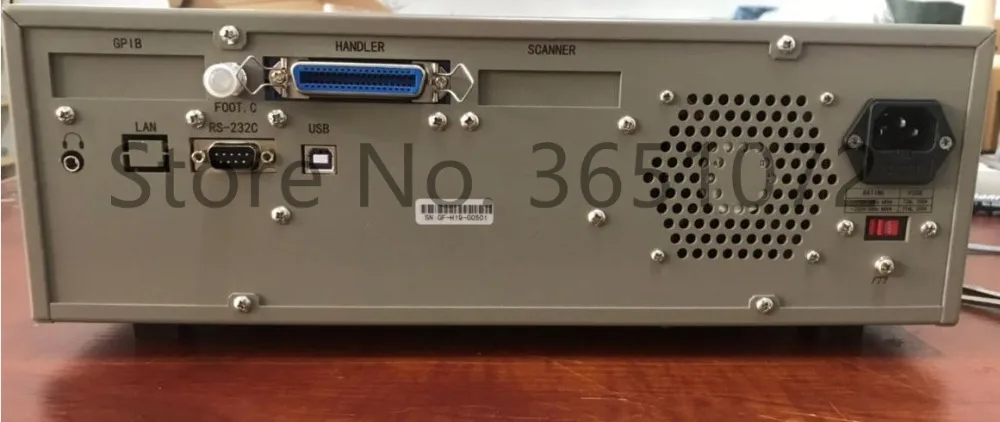

Interface	RS232C, USB HOST, USB DEVICE, HANDLER, Headset interface, Foot switch interface
Others	The frequency response curve analysis; Can save the file to the instrument or U disk
GENERAL FEATURES
Power Supply	Voltage: 110V/220V; Frequency: 50Hz - 60Hz
Size and Weight	375mm (W) 135mm (H) 350mm (L); 7kg
ORDERING INFORMATION

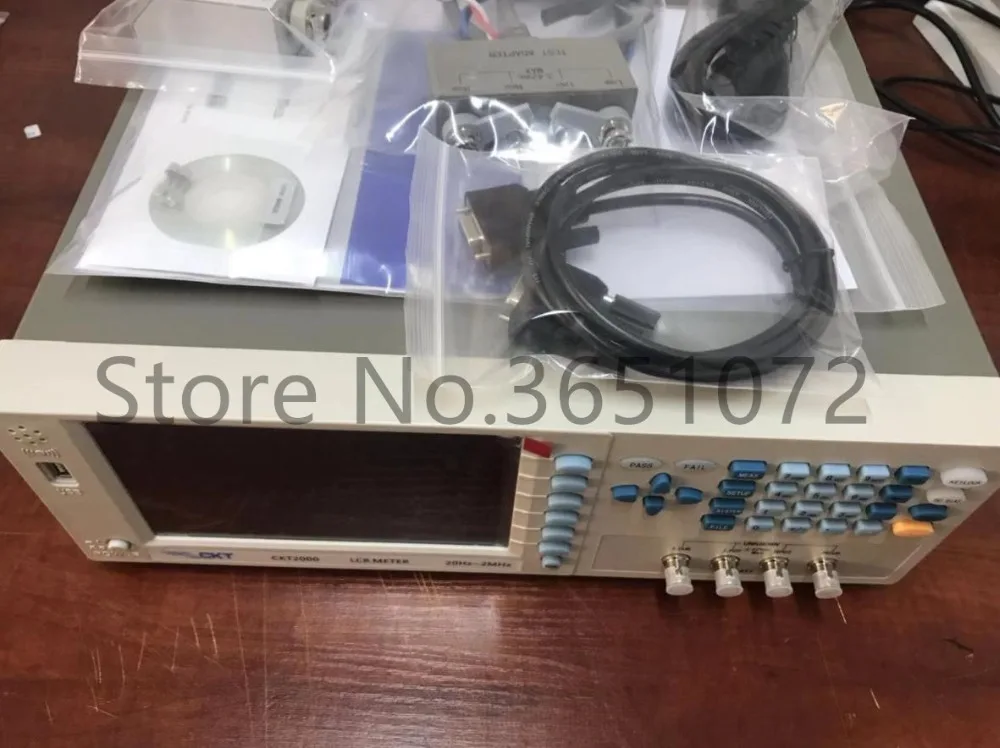

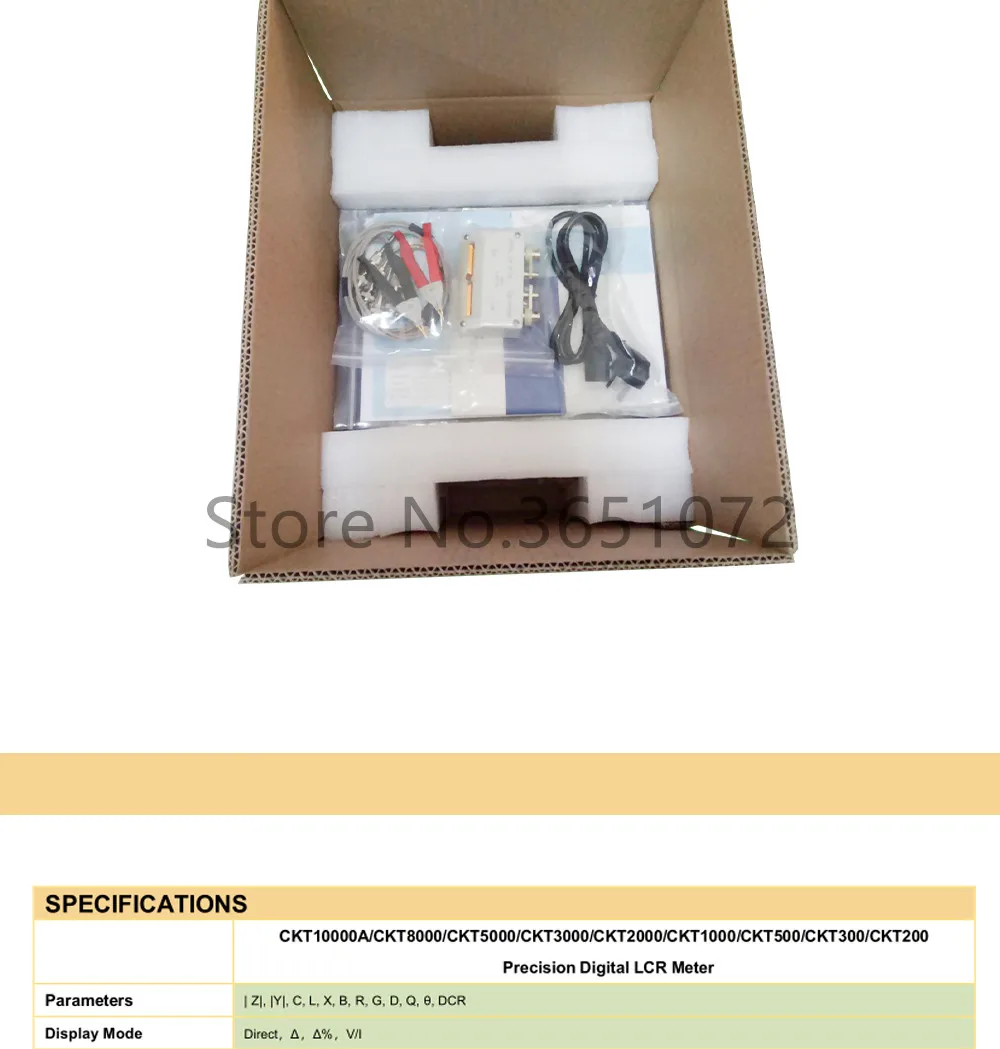

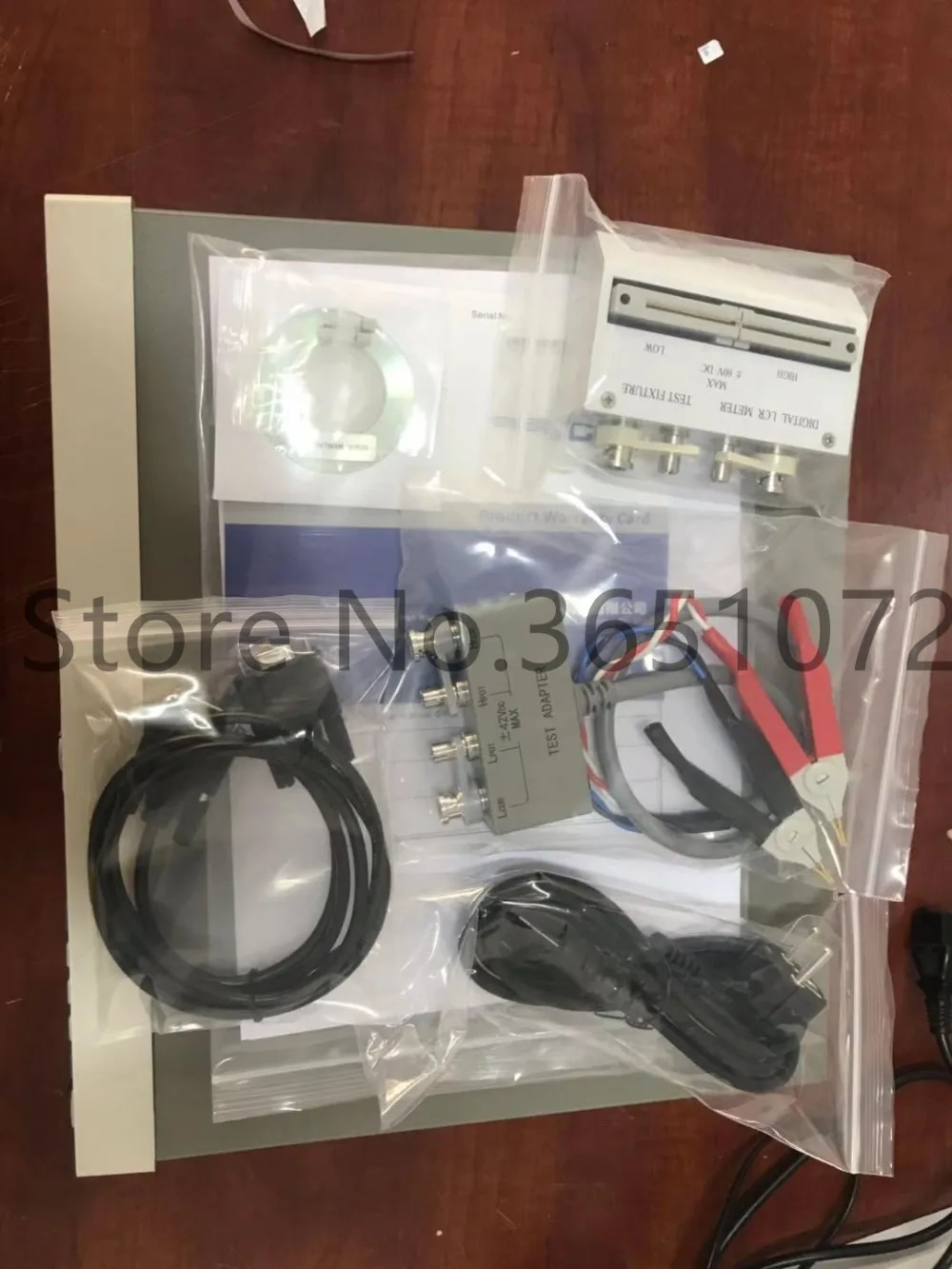

Accessories	Kelvin Test clip; Test fixture; Short-circuit slice; RS232 Communication cable; AC Power Cord
Optional	SMD patch test fixture; SMD patch test clip
