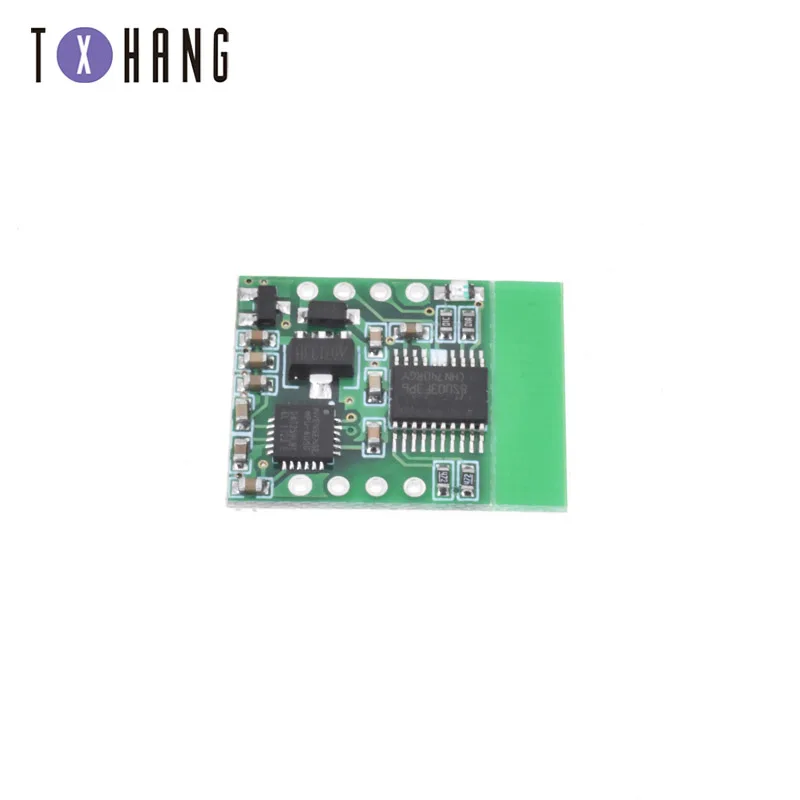

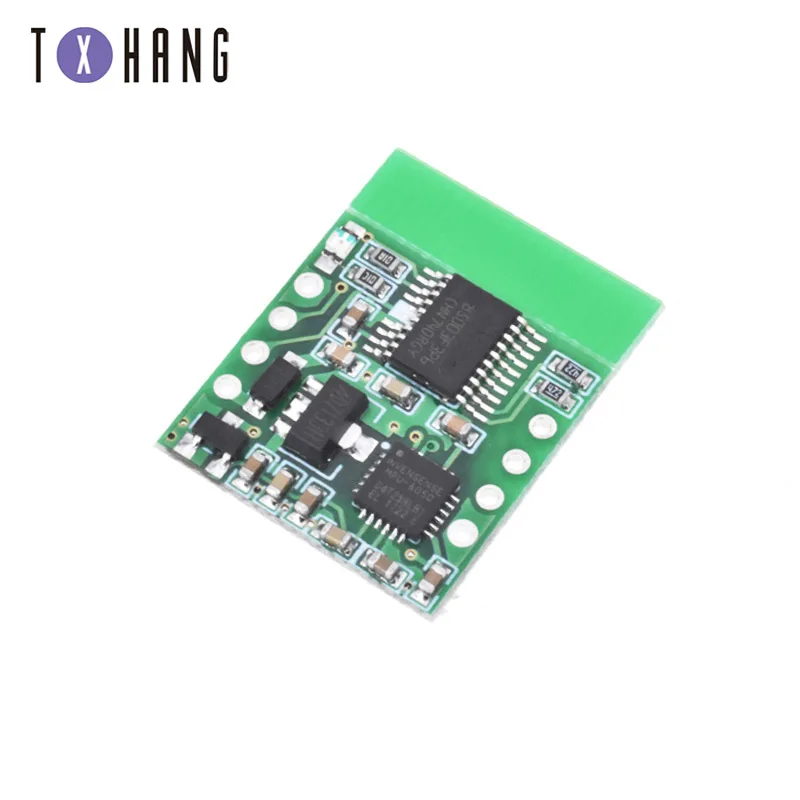

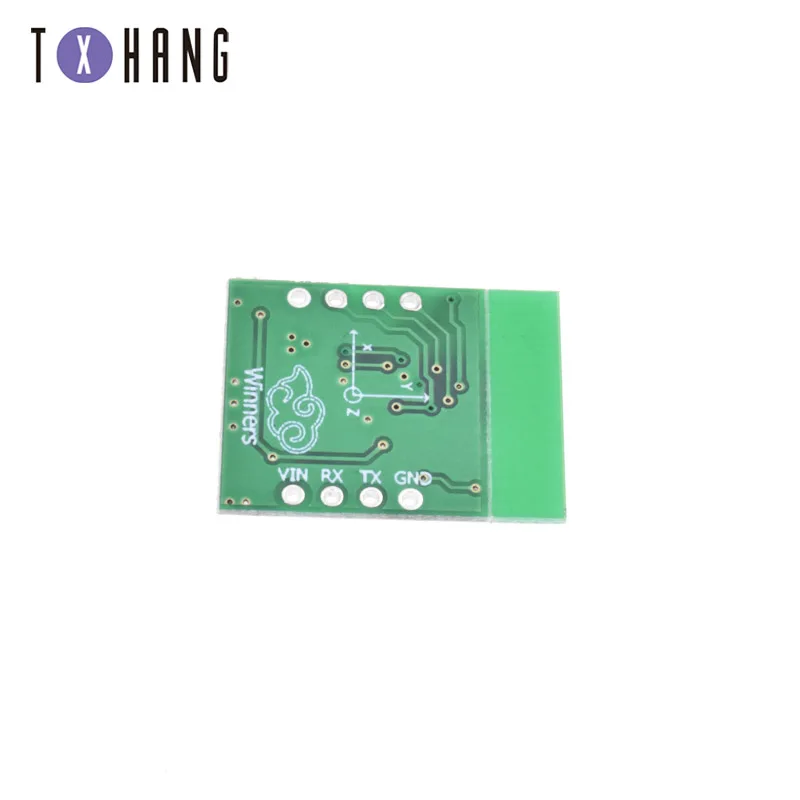

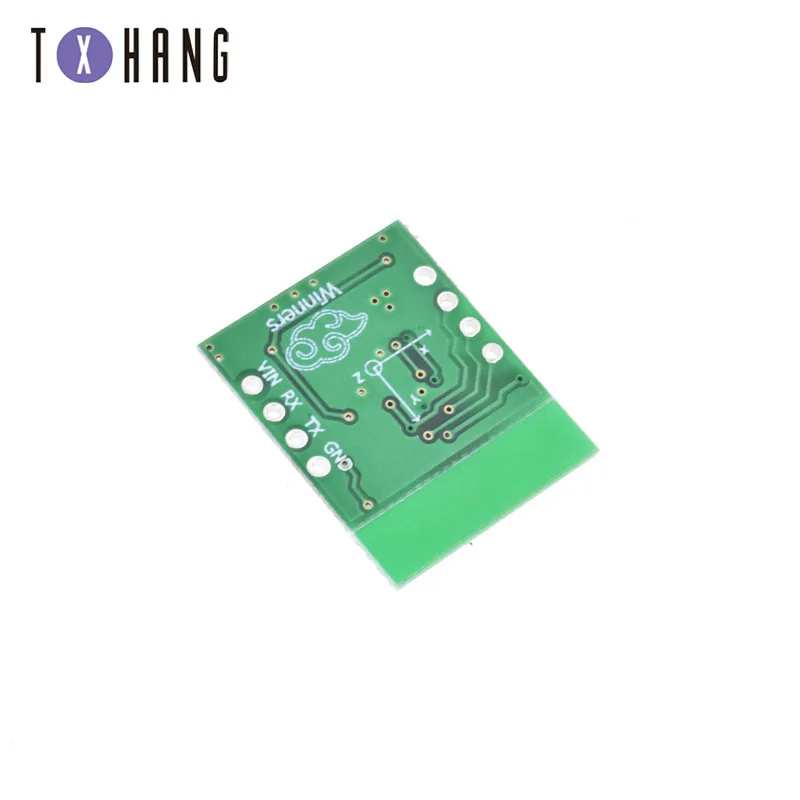

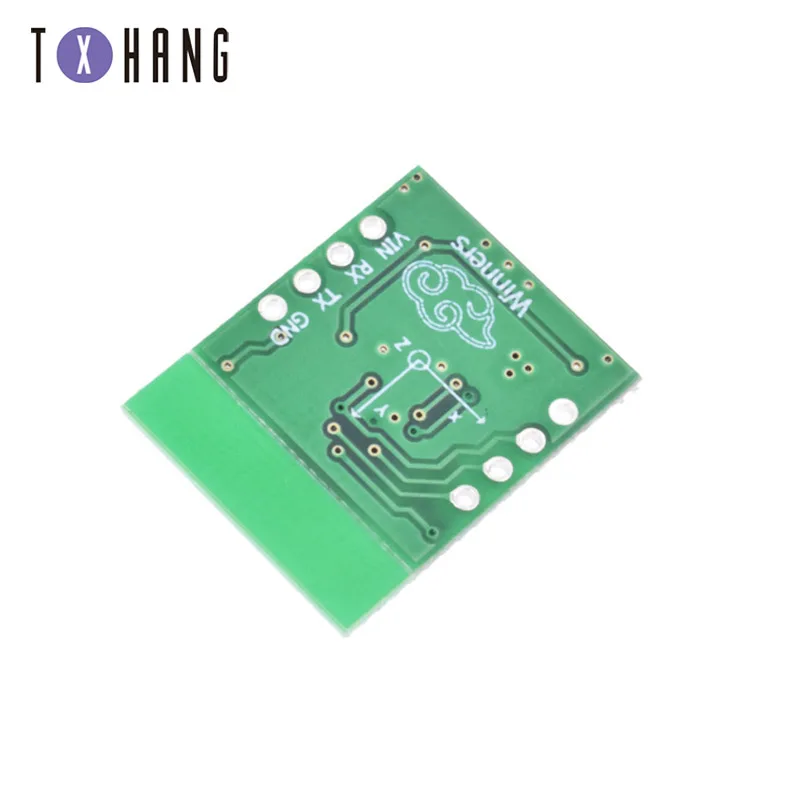

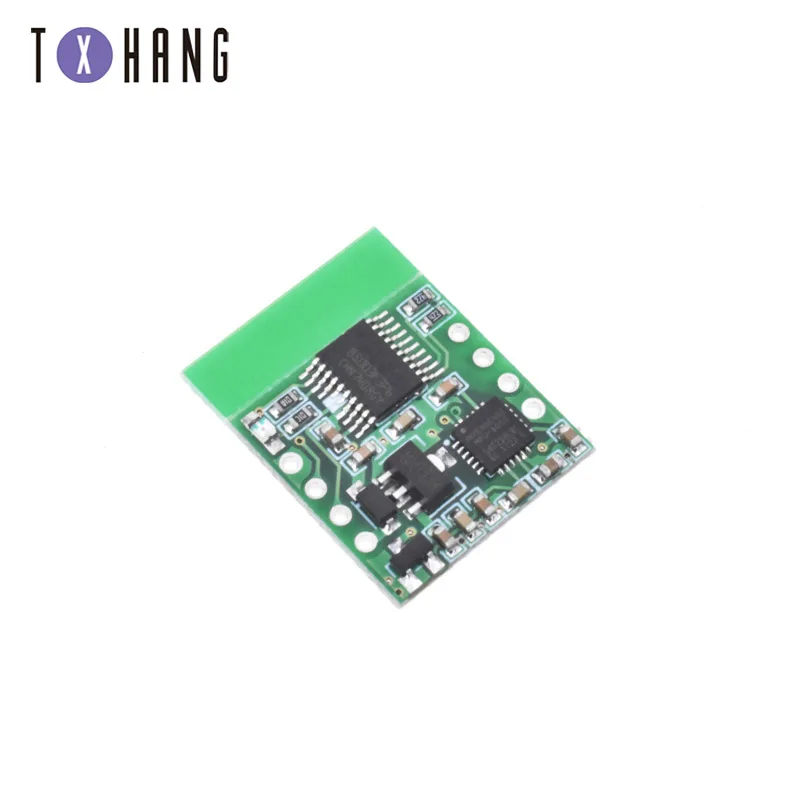

6-axis MPU6050 Module Gyro DMP Engine Kalman Accelerometer STM32 Inclinometer

This six-axis module uses advanced digital filtering techniques (Kalman filter), can effectively reduce the measurement noise and improve measurement accuracy. Internal module integrates motion engine DMP, get quaternion to get current stance. Attitude measurement precision 0.01 degrees, high stability, performance is even better than some professional inclinometers!

Technical Parameters:

1.Voltage: 3.3V ~ 24V (widening voltage)
2.Current: <10mA
3.Volume: 17.8mm X 17.8mm Weight: 1.1g
4.pin pitch: 2.54mm
5.measuring dimensions:
acceleration: 3-dimensional
angular velocity: 3-dimensional,
attitude angle: 3-dimensional
6.range: Acceleration: ± 16g, angular velocity: ± 2000 ° / s.
7.Resolution: Acceleration: 6.1e-5g, the angular velocity: 7.6e-3 ° / s.
8.Stability: Acceleration: 0.001g, angular speed 0.02 ° / s.
9.attitude stabilization measurement: 0.01 °.
10.the data output frequency 100Hz (baud rate 115200) / 20Hz (9600 baud).
11.data interface: Serial (TTL level)
12.baud rate 115200kps / 9600kps.

Package included:

1*STM32MPU6050 6 Axis Analog Gyro Accelerometer DMP Engine Kalman Inclinometer
