Digital Audio Amplifier 24bit 192khz for Analog Audio Converter 3.5mm Headphone Output LHB99 Description:

Description:

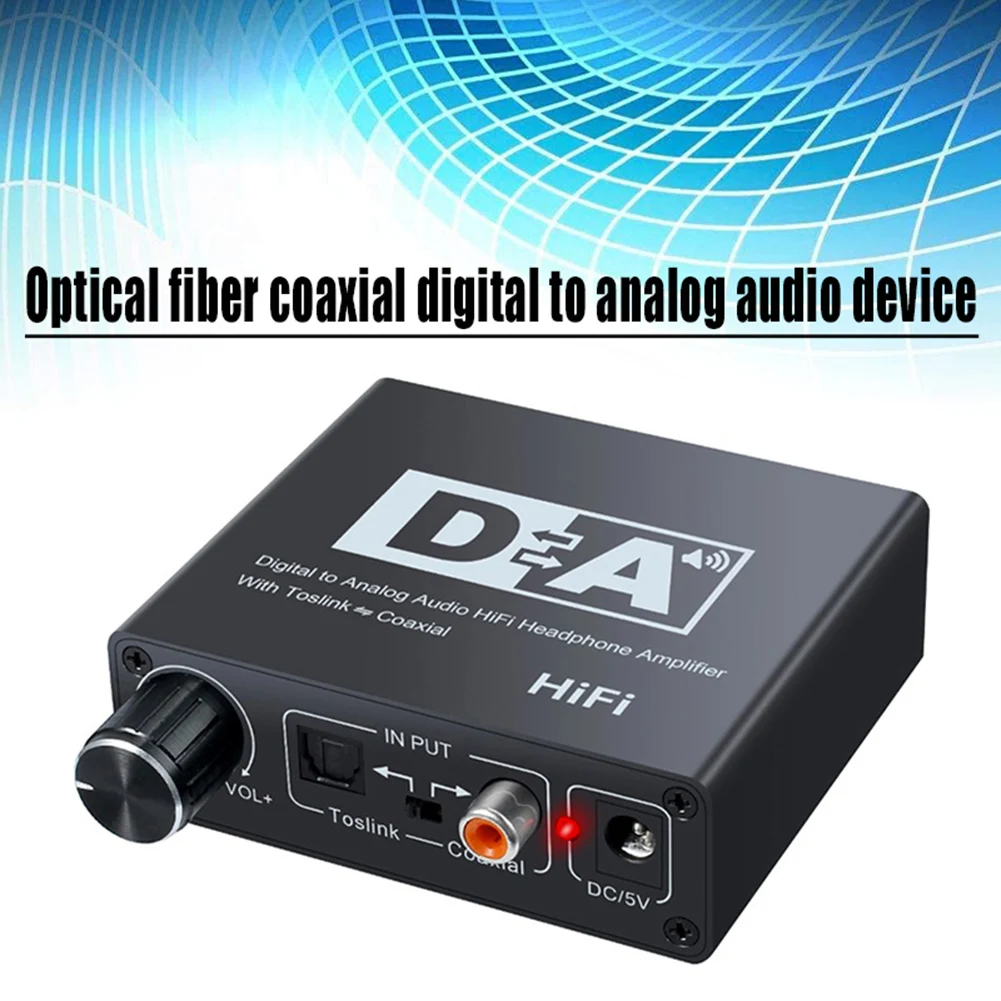

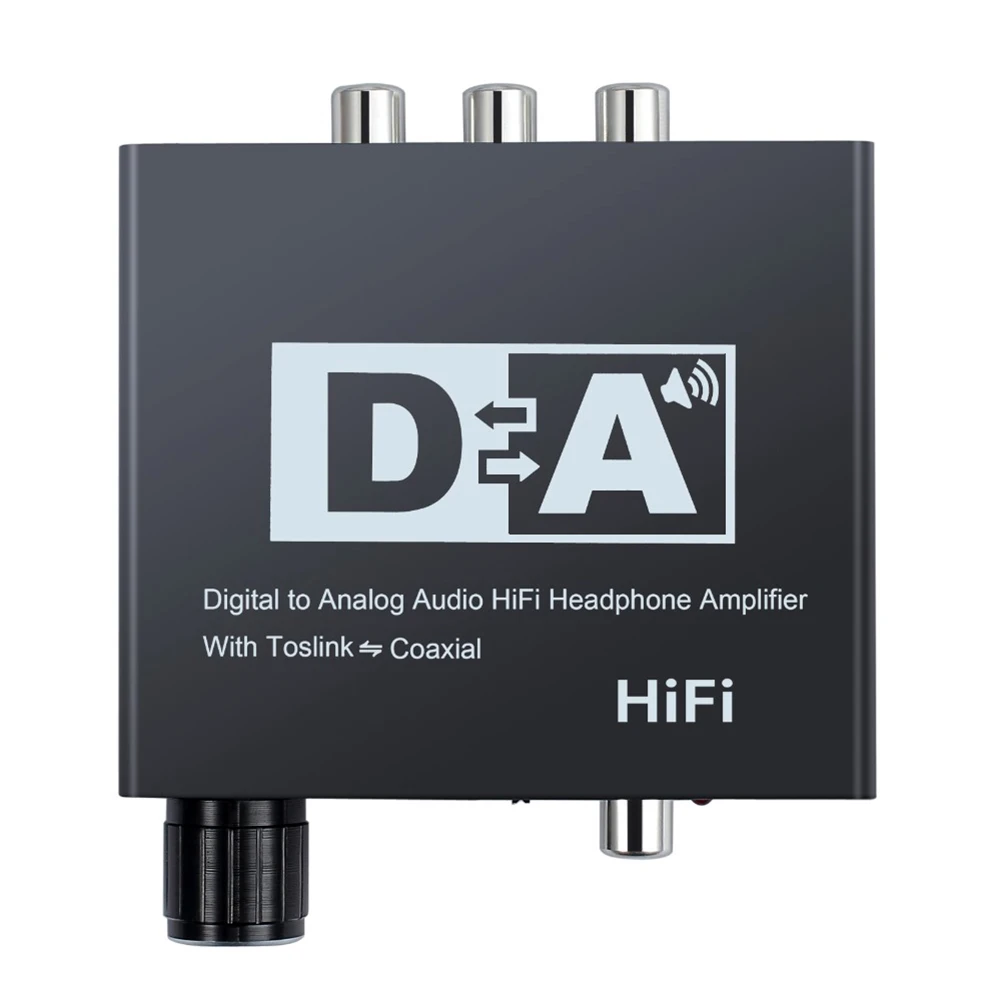

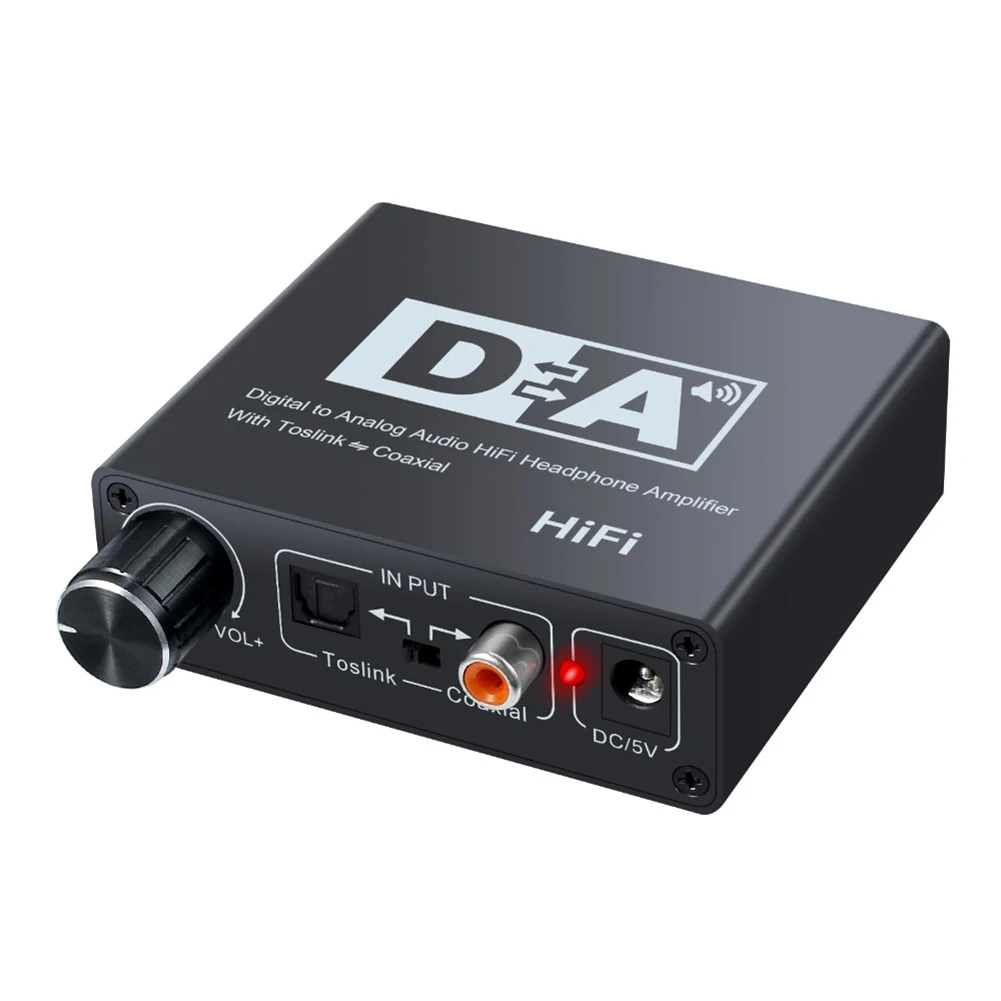

This digital to analog audio converter is designed for home or professional audio switch, converts coaxial or digital audio signals to analog audio l / r and can be connected to external devices such as amplifiers via a standard rca-type jack, you can also 3.5mm headphone output, connect high fidelity headphones, the converter is small and easy to install, built-in high fidelity amplifier chips, headp-hones and rca output port can easily push 16-300 ohm high fidelity headphones, product support volume size adjustment.
Features:
Converts digital coaxial or tosink audio signals to analog L / R audio
Supports supports sample rate at 32 kHz, 44.1 kHz, 48 kHz, 96 kHz and 192 kHz, up to 24-bit resolution
24-bit incoming bit stream s / pdif on the left and right channels
Headphones supports 16-300 ohm high fidelity headphones
Power off support
Support the size of the sound to adjust at will
Provides provides electromagnetic-noise-free transmission
Easy easy to install and simple to operate
Specification:
Input audio: coaxial or digital audio
Output audio: L/R, headphones

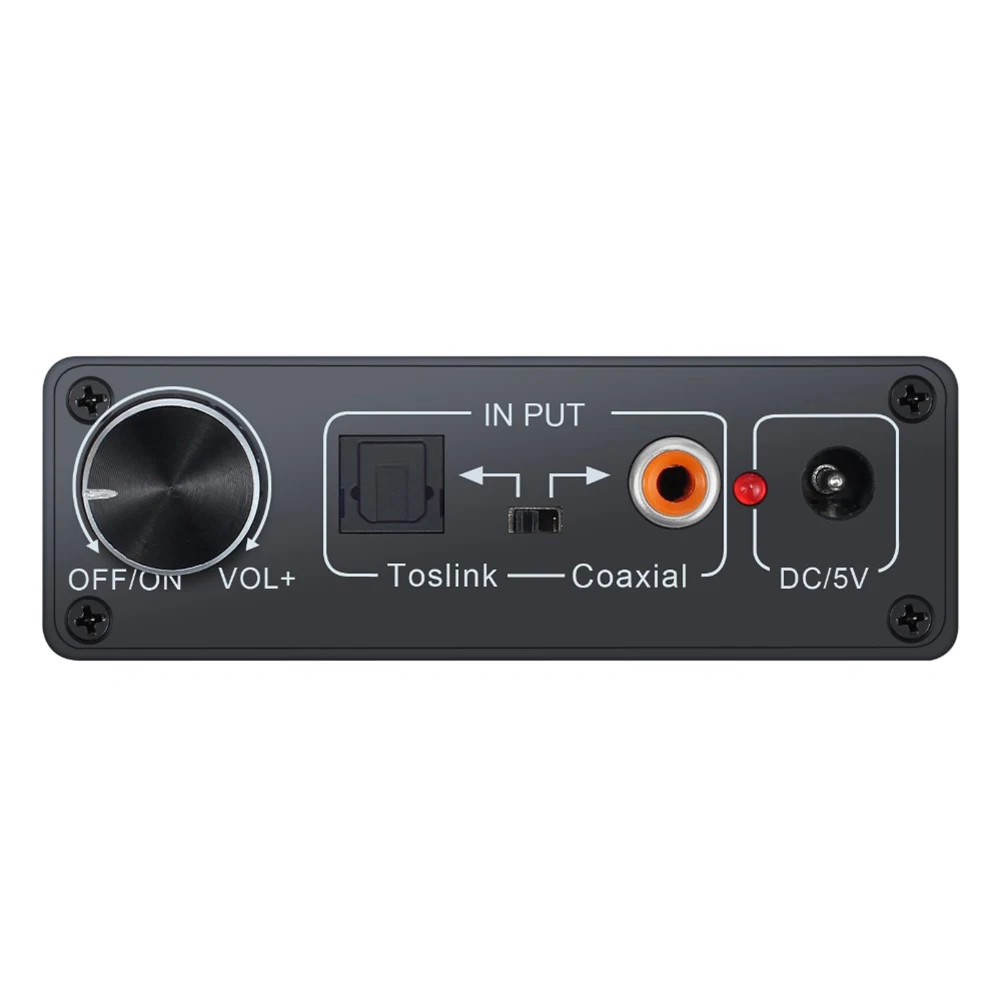

Input audio connector: 1xRCA (coaxial)

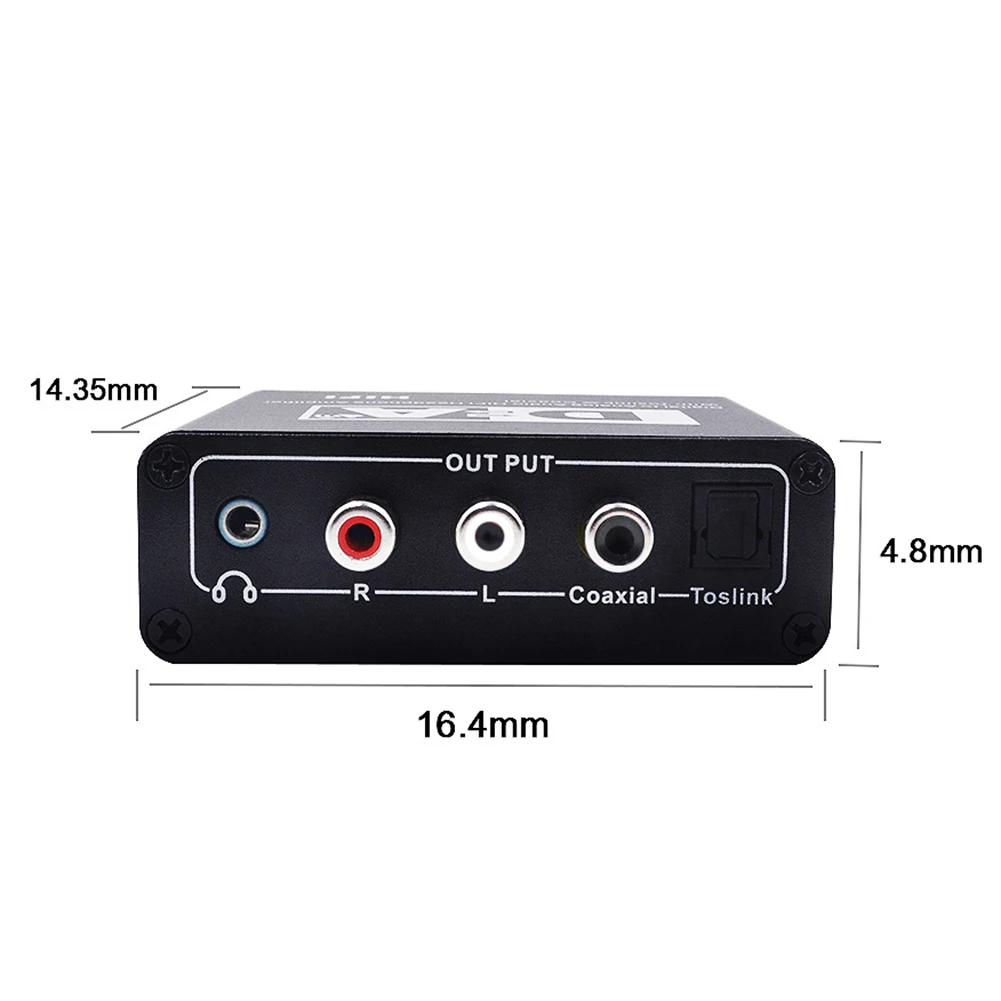

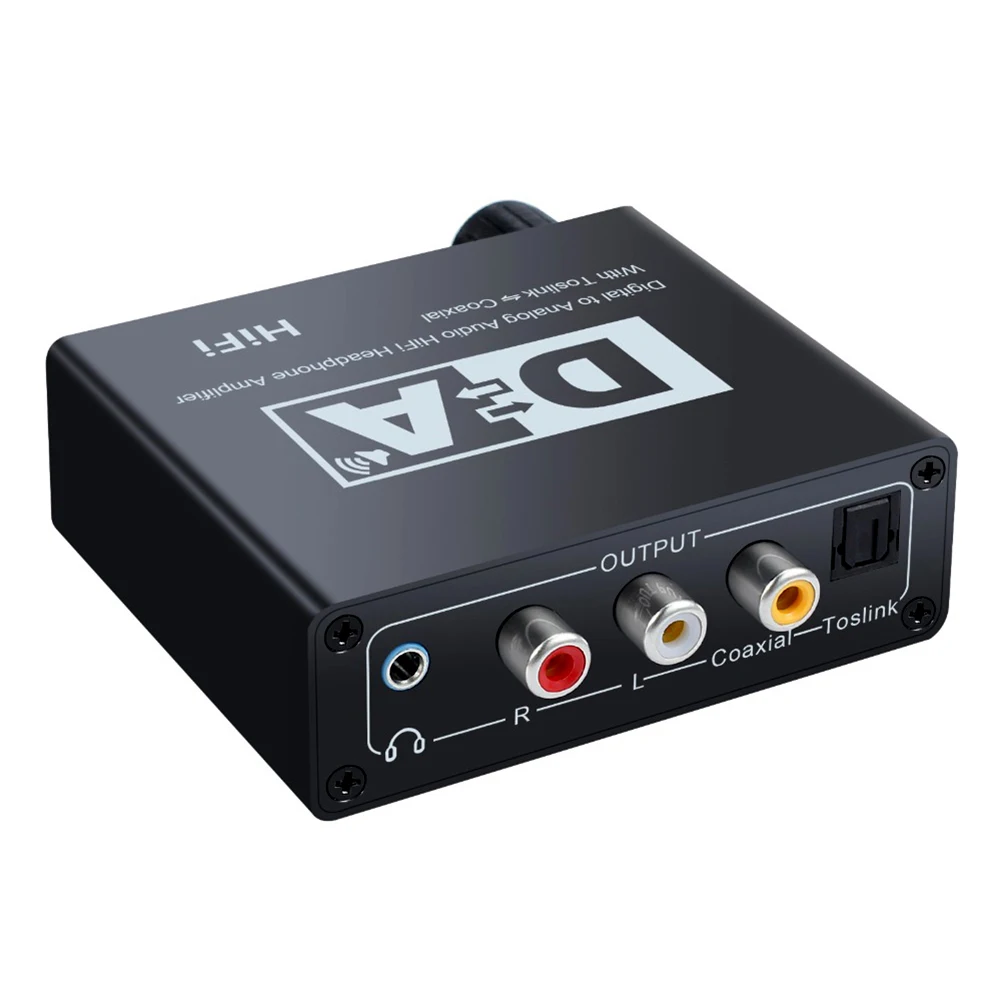

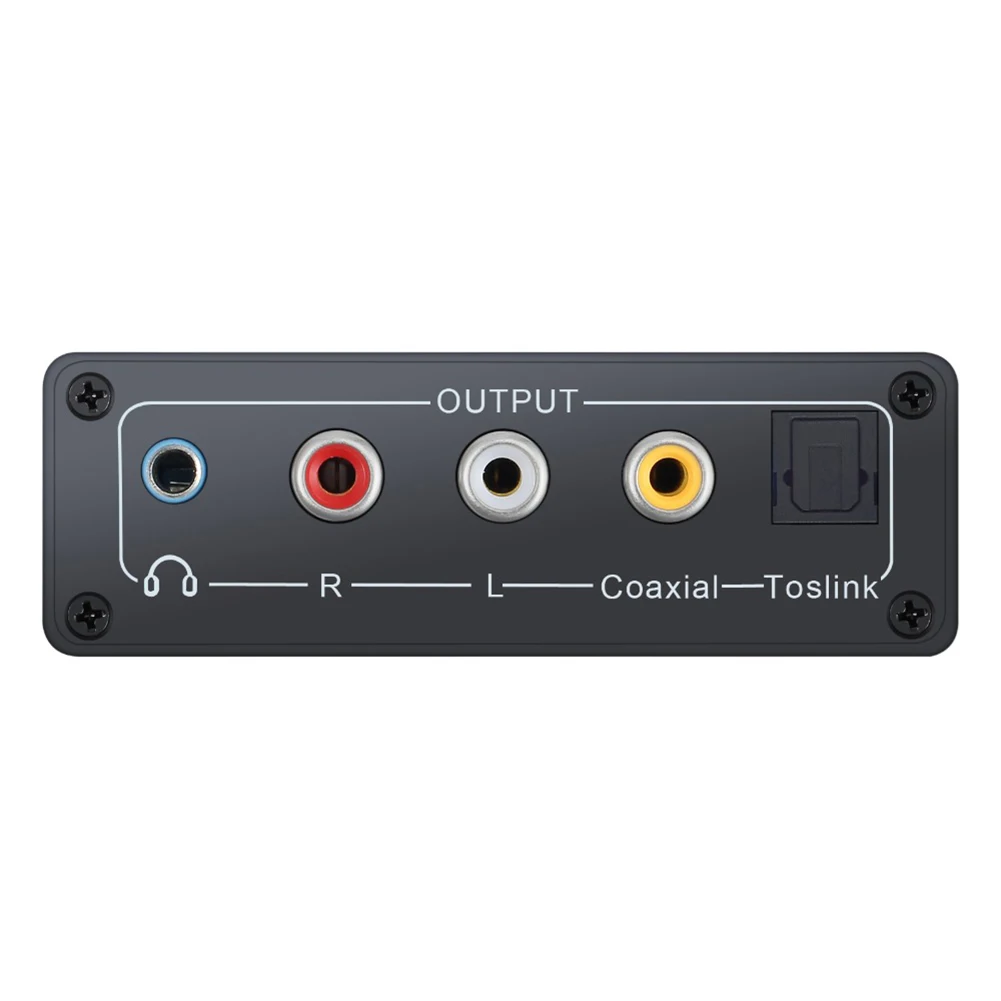

Output analog audio connector: 2xRCA (R/L) and 3.5mm headphones
Output digital audio connector: 1xRCA (coaxial)
Sampling rate: 32, 44.1, 48, 96 and 192Khz, up to 24-bit resolution
Maximum output power:
16Ω: 200mW
300Ω: 20mW
Distortion:<0.01% (10 mW)
Headphone impedance: 16Ω-300Ω
Frequency response: 10Hz-48KHz
Working temperature: 0-70 C
Operating humidity: 10% to 85% RH (no condensation)
Storage temperature: -10-+ 80 C
Storage humidity: 5% to 90% RH (no condensation)
External power supply: 5V DC＠500mA
Power consumption: 0.5 watts (maximum)
Product size: 81 x 71 x 25mm


  Package Includes:

1x Digital to analog converter
1x Power supply
1x Manual
