5K: преобразователь привода 6F6 6P14 6N11 12AU7 и других электронных ламп могут пройти DC 25mA на выбор два железных ядра - купить

Купить 5K: преобразователь привода 6F6 6P14 6N11 12AU7 и других электронных ламп могут пройти DC 25mA, на выбор два железных ядра.

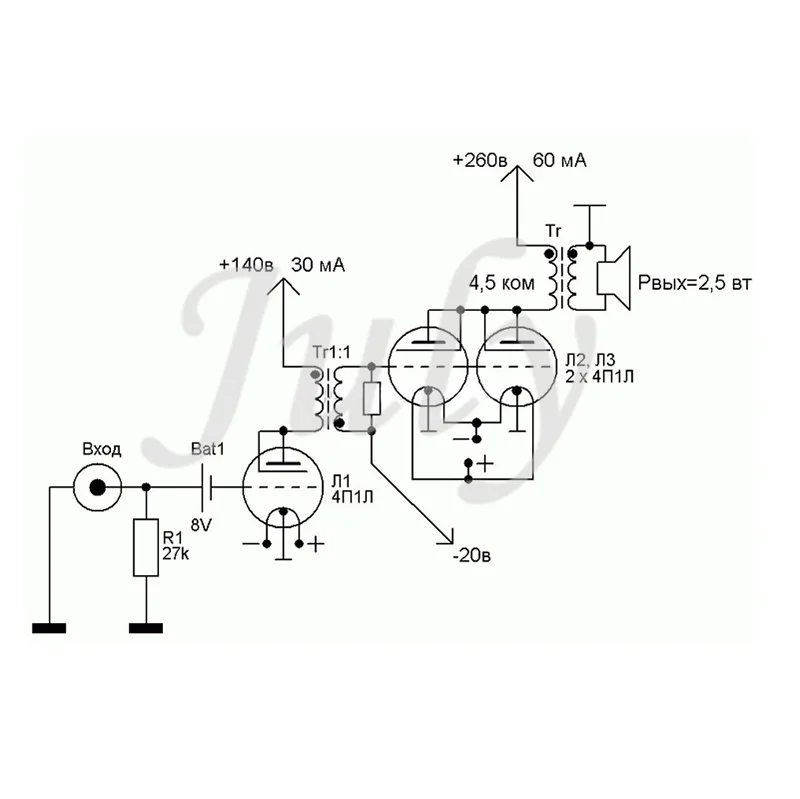

Electron tube 5K: 5K single-ended drive transformer, suitable for 6F6, 6P14, 6N11, 12AU7 parallel and other electronic tubes to promote the use of high power tubes in the later stage. The primary can pass DC 25mA.

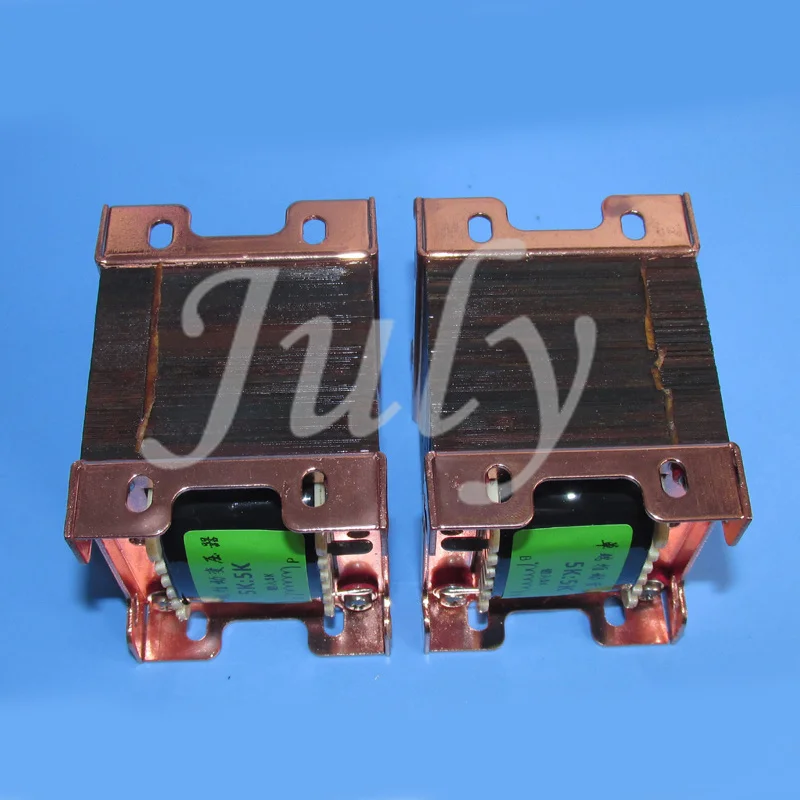

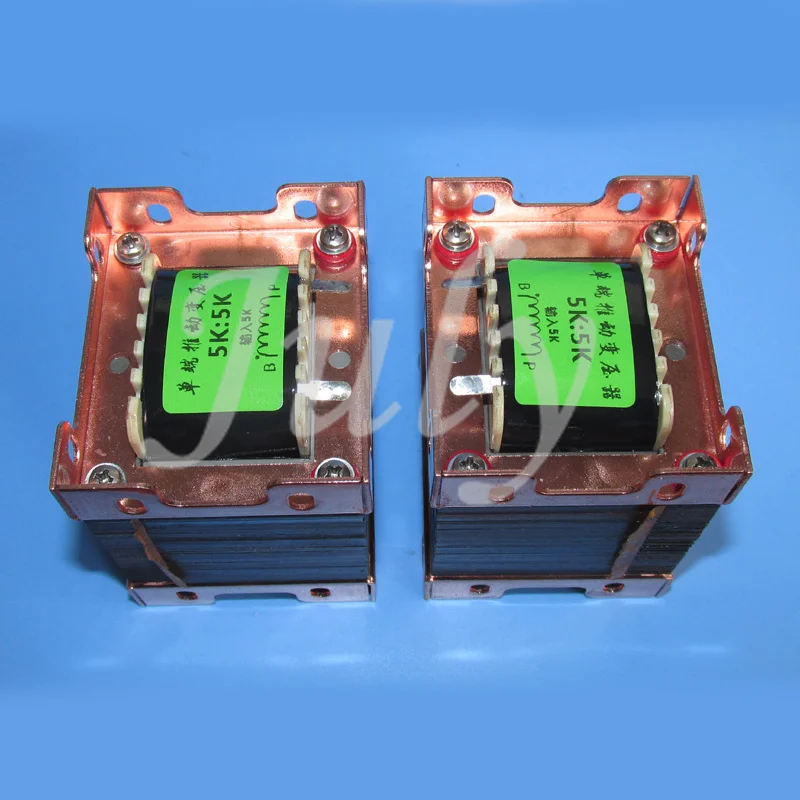

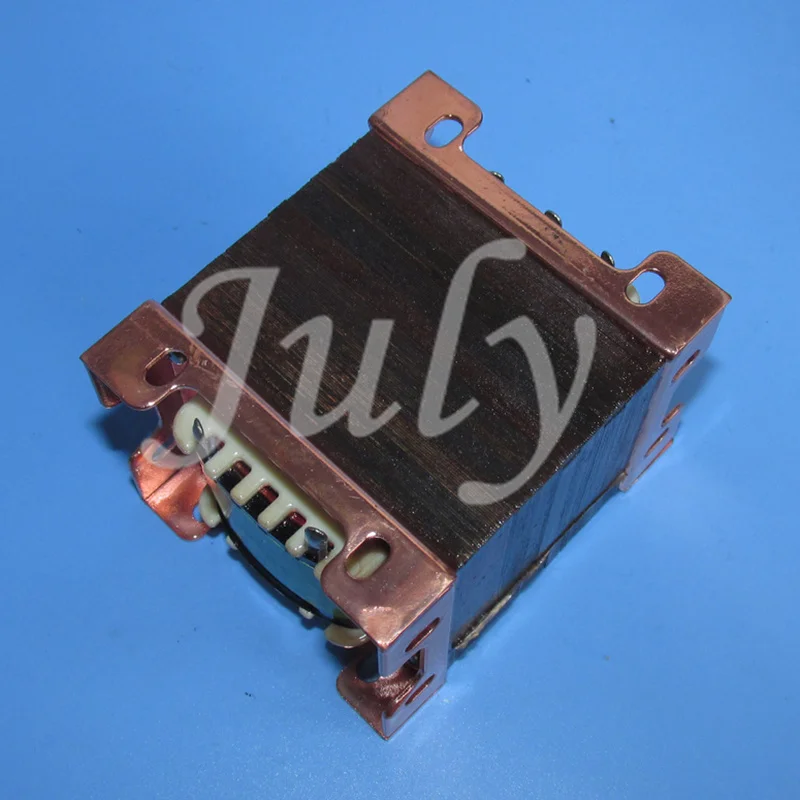

2 terminals for primary 5K and 2 terminals for secondary 5K, can be customized according to requirements! Imported second-hand EI57 Z11 iron core is wound, with two thicknesses of 38mm and 43mm, each with a thickness of 0.35mm, fixed by the British Red Bull clip. High-quality oxygen-free copper enameled wire winding, nylon frame, using fever winding method, expand the frequency response and improve the quality of parameters. Secondary winding reduces internal resistance to improve driving force.

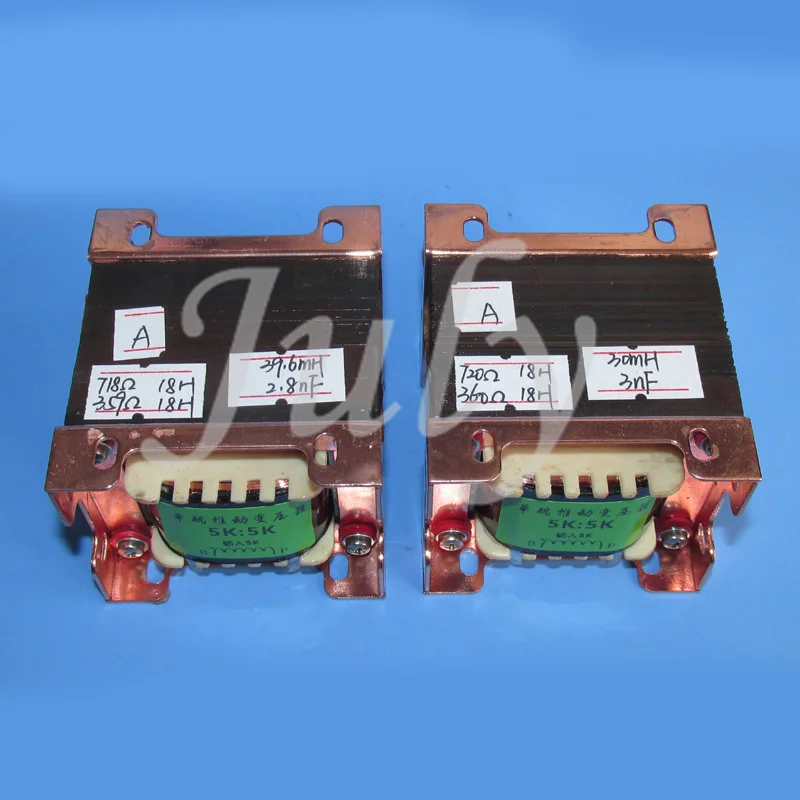

The first transformer EI57 stack thickness 38mm

parameter: Power 4W. The average primary inductance is about 18H, the average copper resistance is about 720 ohms, measured at 100HZ The secondary average inductance is about 18H, the average copper resistance is about 360 ohms, measured at 100HZ Average leakage inductance: 30mH 100HZ Average distributed capacitance: 3000P 2000HZ Appearance size: 60X64X53mm transformer weight 1.58KG/pair, Measured frequency response on the machine: 10HZ-92KHZ -2.5DB 20HZ-87KHZ -1DB

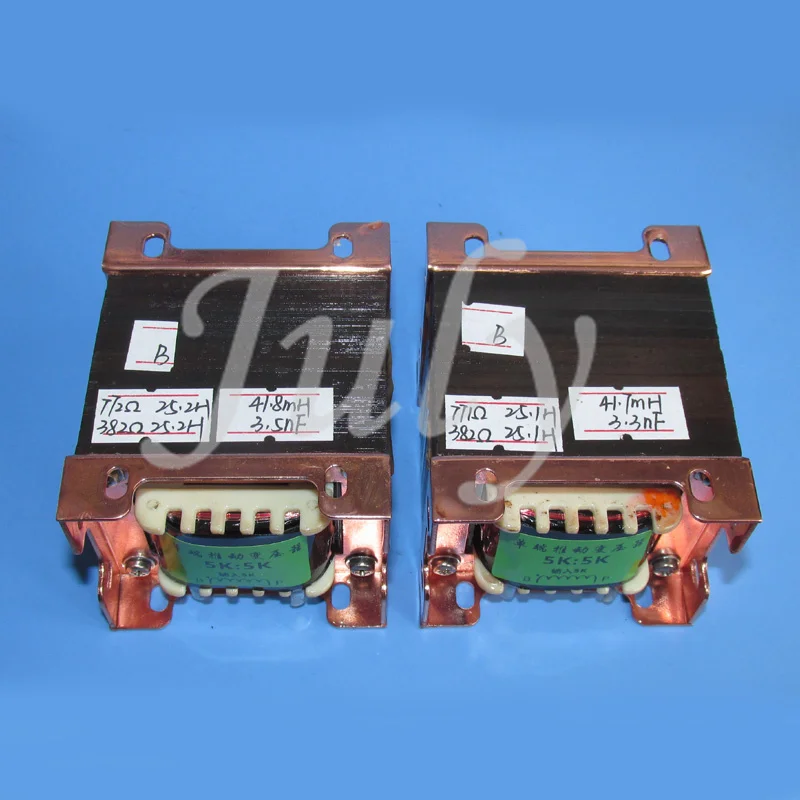

The second transformer EI57 stack thickness 43mm

Parameters: Power 5W. The average primary inductance is about 25H, the average copper resistance is about 772 ohms, measured at 100HZ The average secondary inductance is about 25H, the average copper resistance is about 382 ohms, measured at 100HZ Average leakage inductance: 42mH 100HZ Average distributed capacitance: 3300P 2000HZ Appearance size: 60X64X58mm transformer weighs 1.75KG/pair, Measured frequency response on the machine: 10HZ-83KHZ -1.5DB 20HZ-78KHZ -0.6DB
