Model: NXK7A1 T8








Performance and quality first    Pursuit  the  security  and  reliability  of  DATA

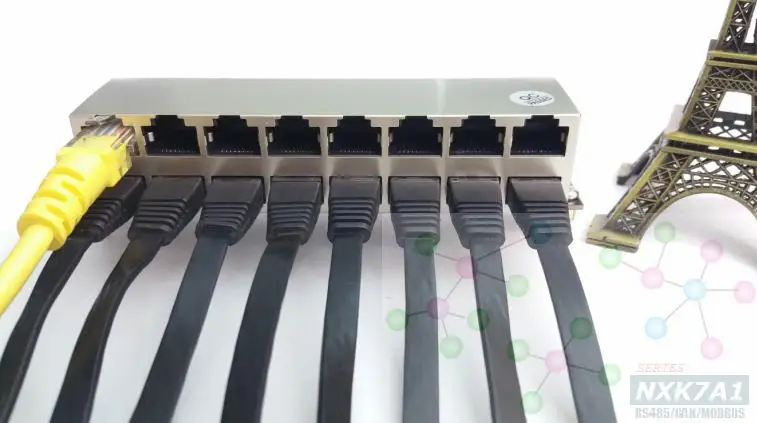

Ultra small volume Eight way portP1-P8 Eight way interconnection convenientIn the light ofOne control seven applications And can be expanded by cascading sites among groups

NXK7The series assembly lines are allImmunity special wiring design Communication performanceAndsubjectstructureAll areElaborate design

resistIndustrial electromagnetic environment interference and signal crosstalk Provide safe and reliable plug-in and interconnection guarantee for high-speed serial communication link

Supportfull duplex、Half duplex serial bus linkCommunication connection and interconnection

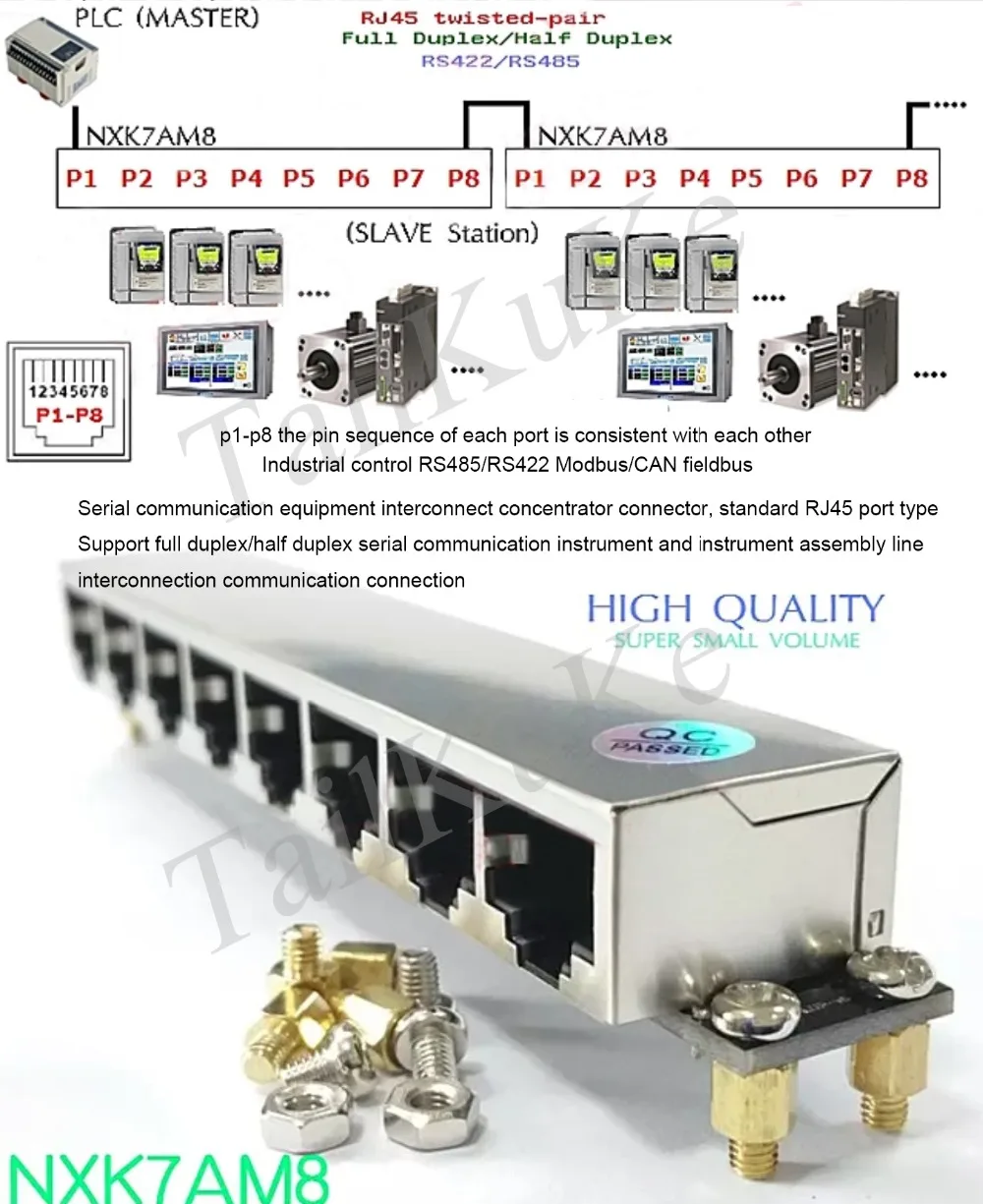

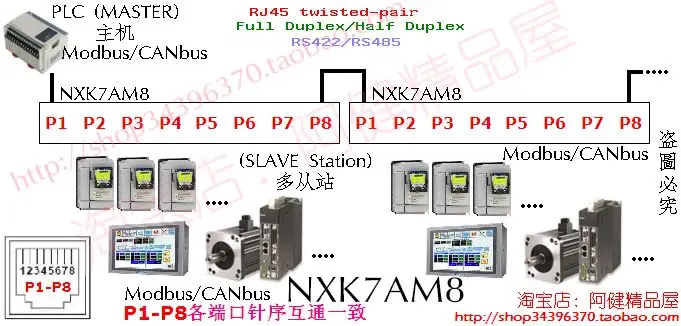

Transducer array or servo array andPLCInterconnection And most of themRS485orCANBus serial portcommunicationInstruments and ApparatusesequipmentInterconnection

May carry outIn one8In core twisted pairRS485、RS422、CANCommunication connection of differential balance signal

Applications are more than that Interworking connection can be used for more electrical connection and parallel connection of other equipment

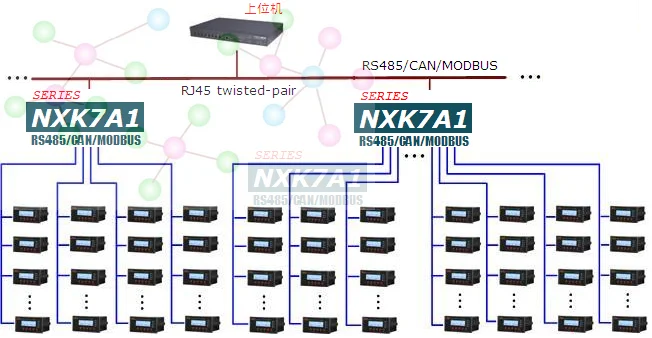

The post network port is a special multiplexing port For cascade or upper computer connection orLong-rangematchingNode impedanceConnect crystal terminal resistor applications, etc

Copper shell metal shield Multilayer cascadeLow attenuation NXK7Both support high-speed baud rate communication interconnection qualityExquisiteTechnologyrigorous

Excellent quality Bus interconnection

RS422/RS485 Modbus-RTU/ASCII (Full Duplex / Half Duplex)

CANbus/CANopenControl the interconnection between LAN devices

Long distance application of series assembly line Convenient connection at the endRJ45Crystal terminal resistor(In store)



  Serial bus communication and docking module The connection and interconnection of multi node data link

RJ45 Hub connector module  Ultra small space occupation、Support cascade combination and port number expansion

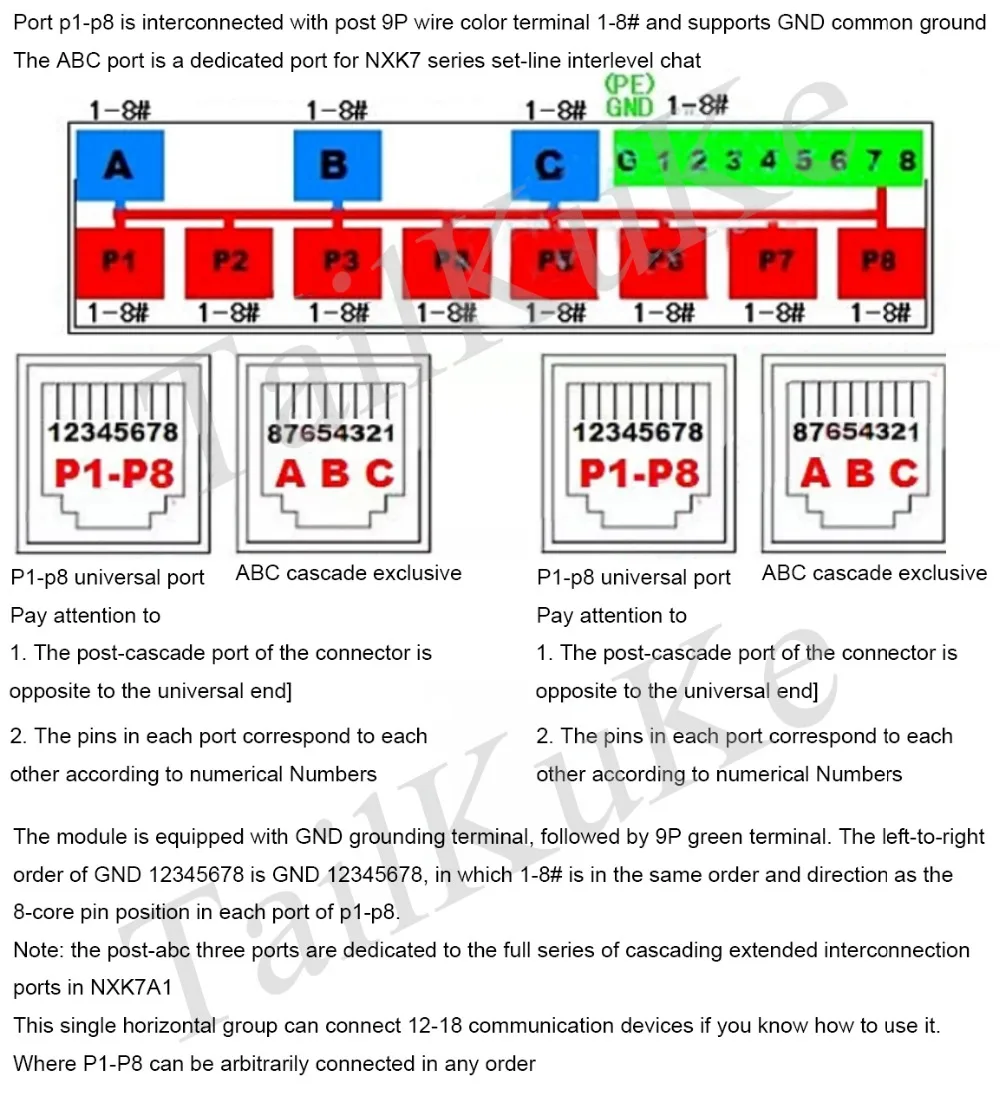

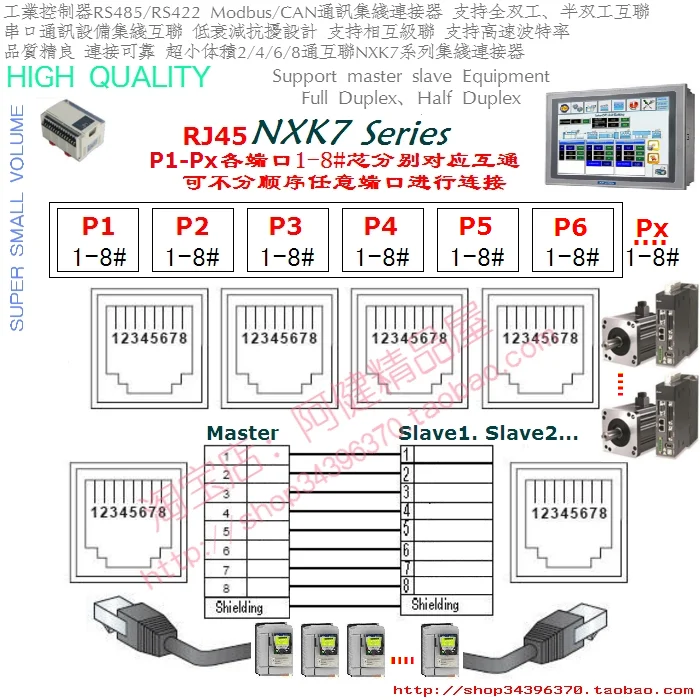

New versionNXK7series 8Each in the road portParallel interworking corresponding to pin sequence number

RS485/CAN/MODBUSHub connector Industrial controller serial bus docking module

  Art-Products  Ultra small space occupying volume

Ultra small volumeNXK7A1T8  Shop collection connector!

Multiple frequency converters、servo、Program controlled mechanical equipment of multi axis motion system such as CNC machine toolRS485/422、CANbusSerial communication optimization

Modbus-RTU、CANbus CANopen  Support half duplex and full duplex communicationBus interconnection

 The product is very convenient for serial bus communication network equipment.Industrial automation control of cabinet、Programmable device、Numerical control machine、High speed program controlled multi axis motion system、Network security video monitoring、Analog and digital telephone voice、NetworkingwisdomGeneric cabling that can be used at home、Building centralized cabling、Various vehicles and ships、Water conservancy、Panel network port and post network port of power and other network equipmentI/OBridge crossing、Rationale、Field generic cabling and most othersRS485/CAN/MODBUSThe connection and interconnection of serial protocol communication equipment.Ensure the independent modularization and integrity of the equipment! Boutique shopCollector series!

 This link isSingle mode groupNXT8manyWay node hub connectorMulti panel design, steady and low tone style All series of connectors areAnti interference wiring design to eliminate the inter layerparasiticcouplingCapacitance aggregation anti-interference anti signal crosstalk Rigorous structural design and exquisite workmanship High quality direct and intercommunication lineConnectormodule



Boutique quality:

The particularity of the relative welding time and temperature requirements of the flexible connectors and plastic parts for communication:

All in storeHigh qualityRJ45The assembly line connectors are all automatically welded by precision program-controlled equipment Non high temperature bath hot wave immersion welding

Strict process to ensure its quality, deformation and defect free integrity、Uniformity、reliabilityas well asOriginal performance of device design!

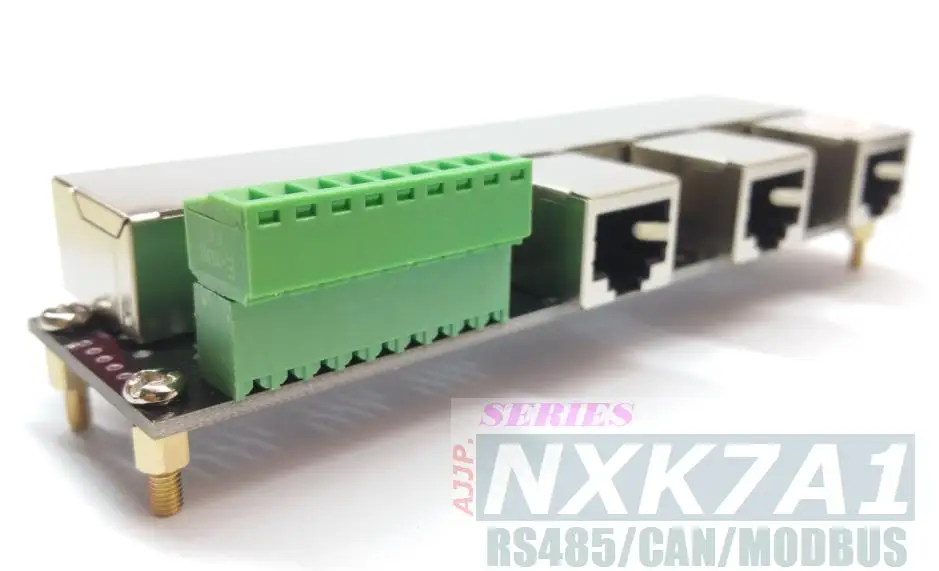

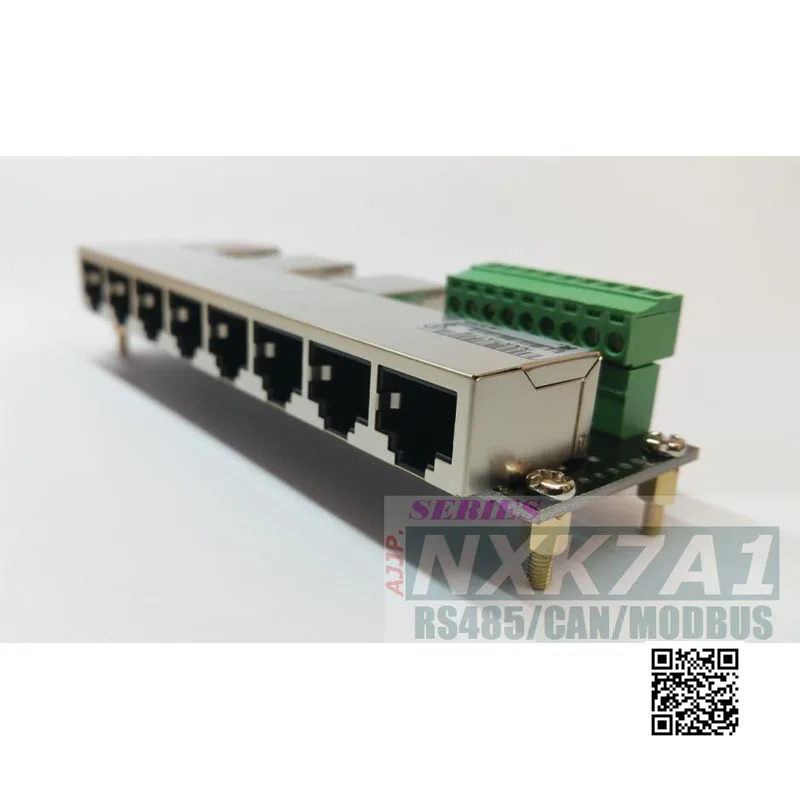

Front face of module8node(Substation) The rear green terminal is the multiplexing port(Multipurpose)

moduleSupportTerminal resistance access Terminal resistance can be matched according to equipment cable distance and node impedance)



Overall occupation size:126 x 37 x17 mm (Length, width and height Subject to material object)

Fixed hole inch center distance:121 x 22 mm  (accurate)

Net size of protruding port:115x14 mm   (Recommended panel opening size is increased respectively0.5-0.8mm)

 Front8Road portConvex extension:5 mm

  Terminal electrical parameters: 125V   1.5AMP RMS  Support copper shell metal shield and common ground!

       heavy   amount:50g
