Медный прямой радиаторный клапан без термостатической головки для системы HVAC DN15 DN20 DN25 DN30 регулятор температуры включен - купить

Купить Медный прямой радиаторный клапан без термостатической головки для системы HVAC DN15 DN20 DN25 DN30 регулятор температуры включен.

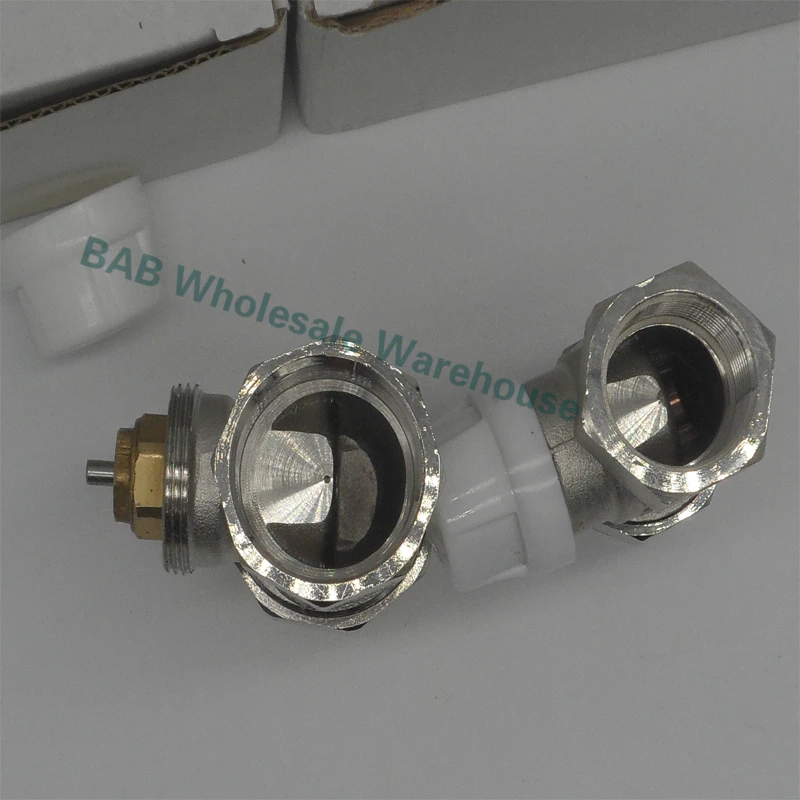

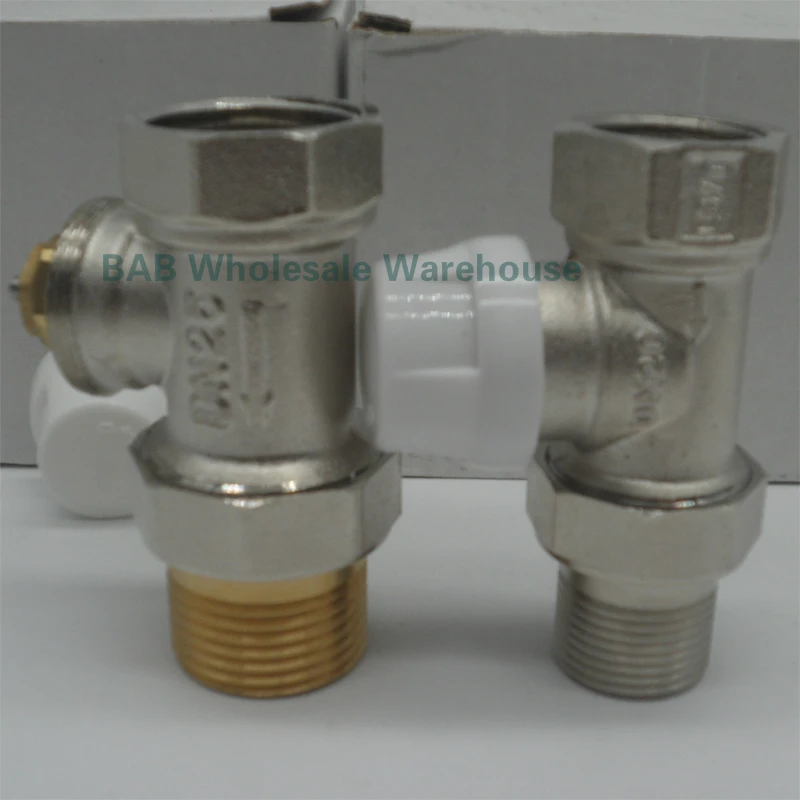

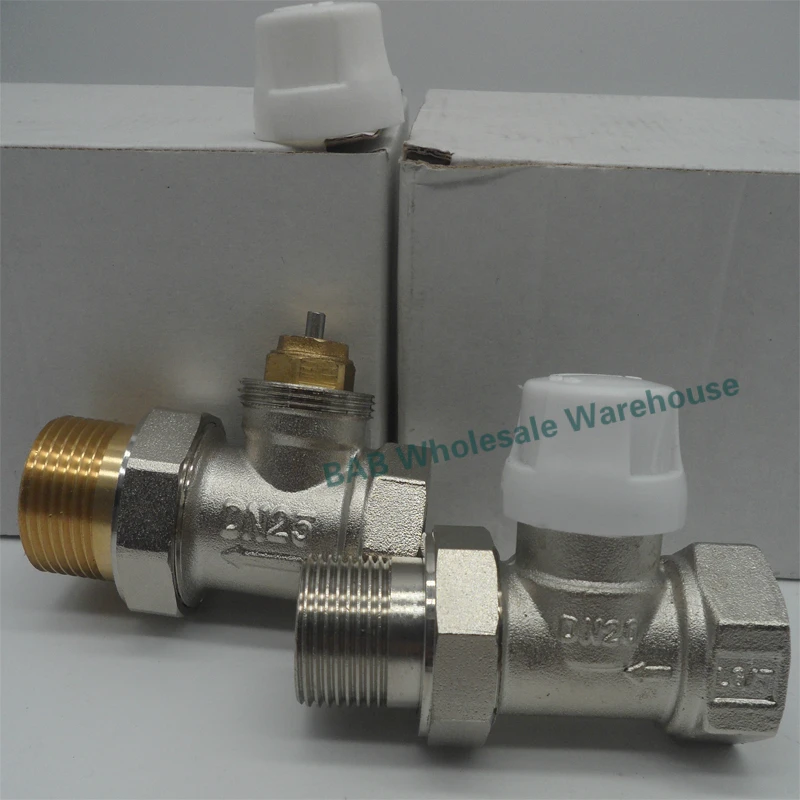

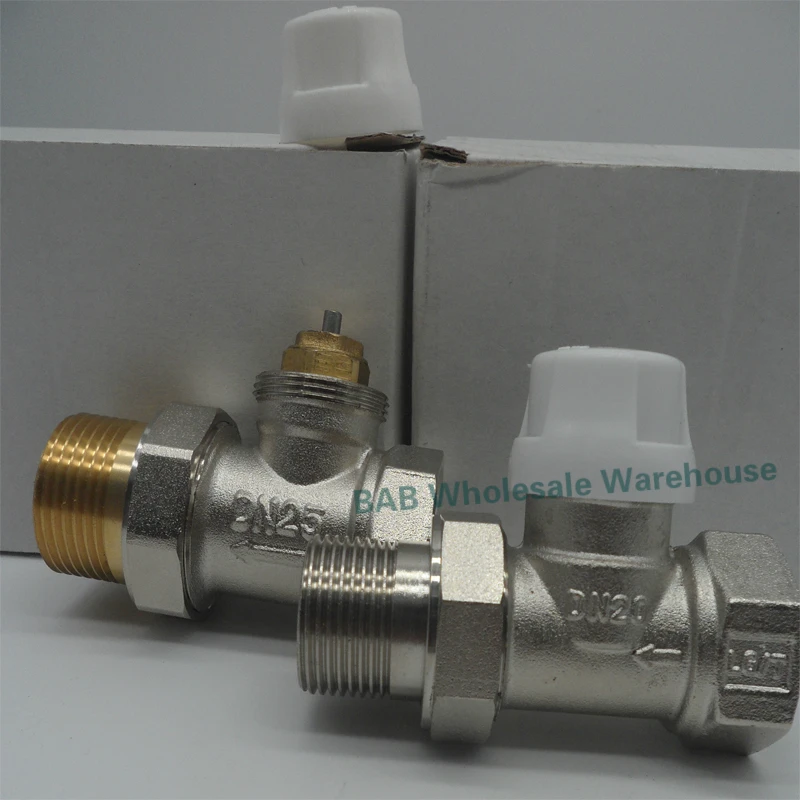

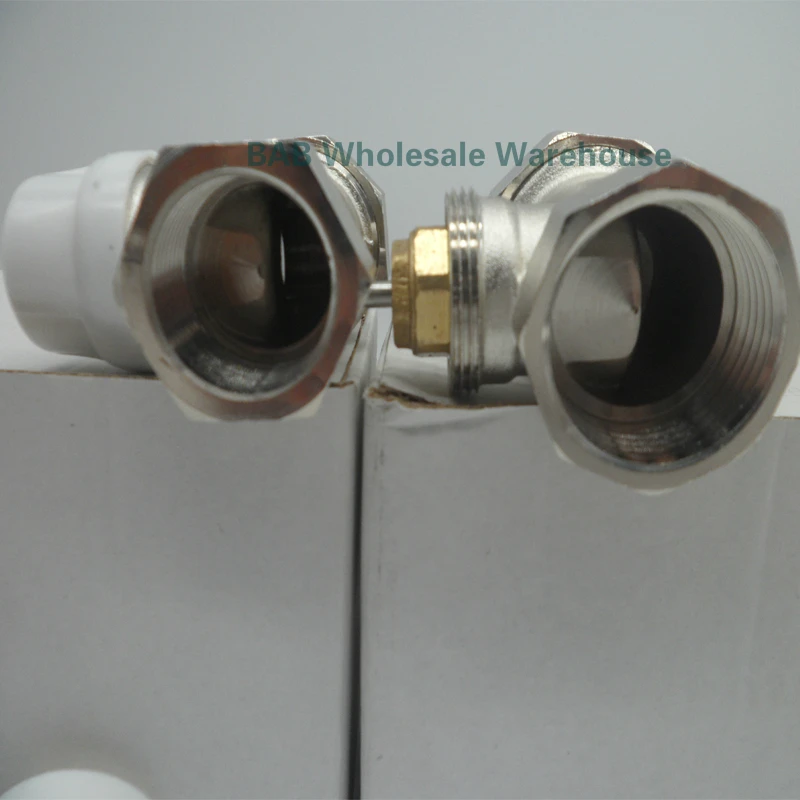

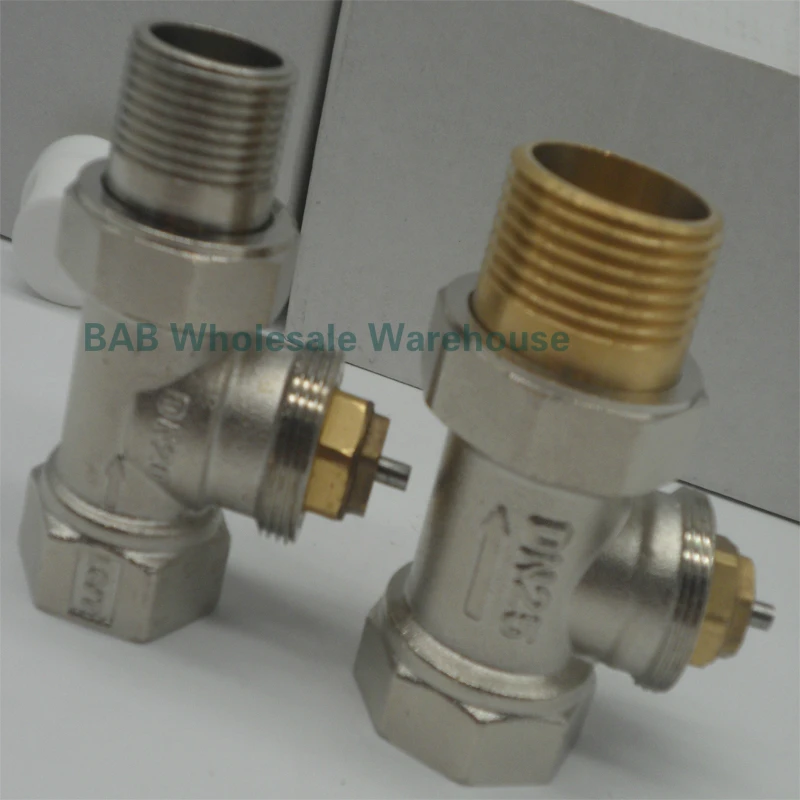

Description Brass straight radiator valve without thermostatic head for HVAC System DN15 DN20 DN25 DN30 temperature controller valve

Product's detials:

Material:Brass body,EPDM Seal Material: Max Pressure:16 bar Working medium: water, charge corrosive liquid Control Temperature range: -50 degrees to 70 degrees Thread: M30X1.5 Stroke:3mm Power Consumption: 2VA Mounting Position: Vertical position to 85 ° decline Easy to be installed   Description: Thermostatic radiator valve in this design is the self-adjustable control valve without needs of external energy , it can be adjusted independently for temperature in each room. And thereby maintaining a constant room temperature required. It features energy-saving and easy to use and so on.   The working principle of this design of valve is: the liquid temperature sensing element thermostatic valve head is to feel the room air temperature , and thereby changing the heating water flow , so as to regulate and control room temperature :i.e., when the indoor temperature rises , the thermal expansion of the temperature sensing material shall compress to the valve stem to close down the valve up to shut up ,and on the contrary ,the stem shall rebound to open up the valve. In this way, a more comfortable temperature environment for people is achieved.   Meanwhile, if there is other auxiliary heat source(such as sunshine or other heater etc) in the room, the valve shall close down a little to reduce the water flow into the radiator, and achieve the target of energy-saving in the end. Other Related product links are as belowing:





---
