3G Vector Network Analyzer S-A-A-2 NanoVNA V2 2.8 Inch Screen Antenna Shortwave HF VHF UHF with Iron Housing Swr Meter - купить

Купить 3G Vector Network Analyzer S-A-A-2 NanoVNA V2 2.8 Inch Screen Antenna Shortwave HF VHF UHF with Iron Housing Swr Meter |

Made of fine quality material, practical, easy to operate and use, has a long service life.

Features:
Made of fine quality material, practical, has a long service life.
Portable and compact, easy to operate and carry.

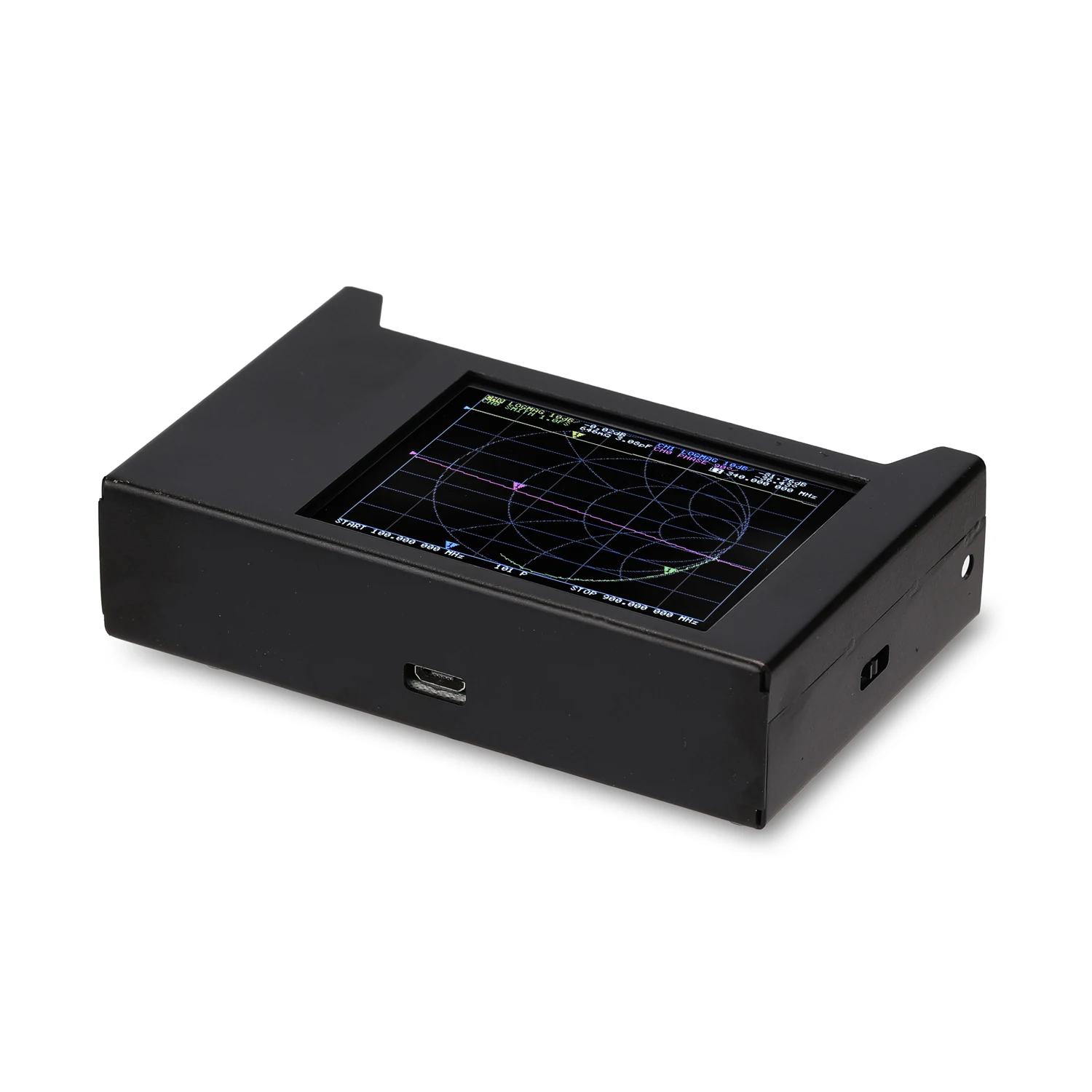

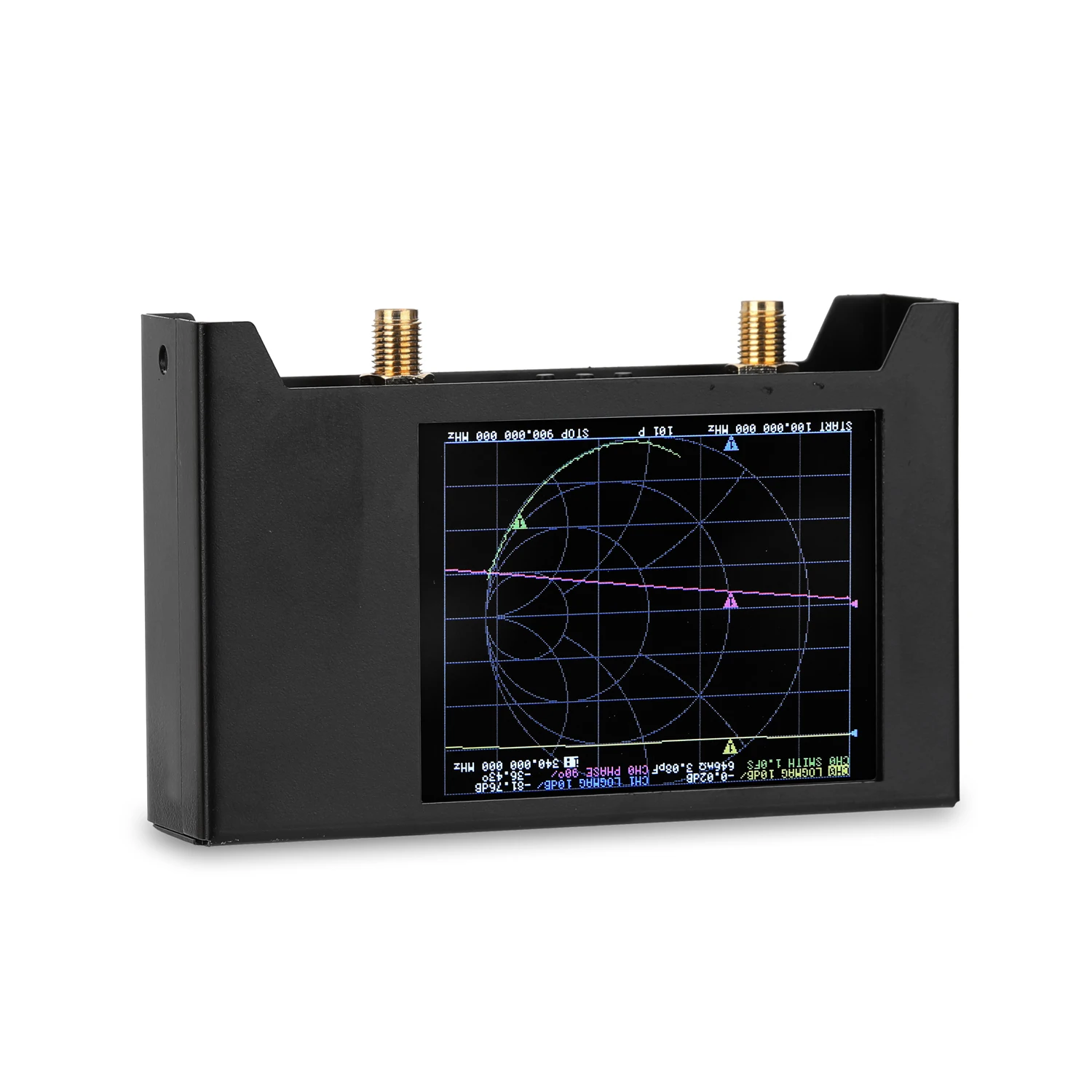

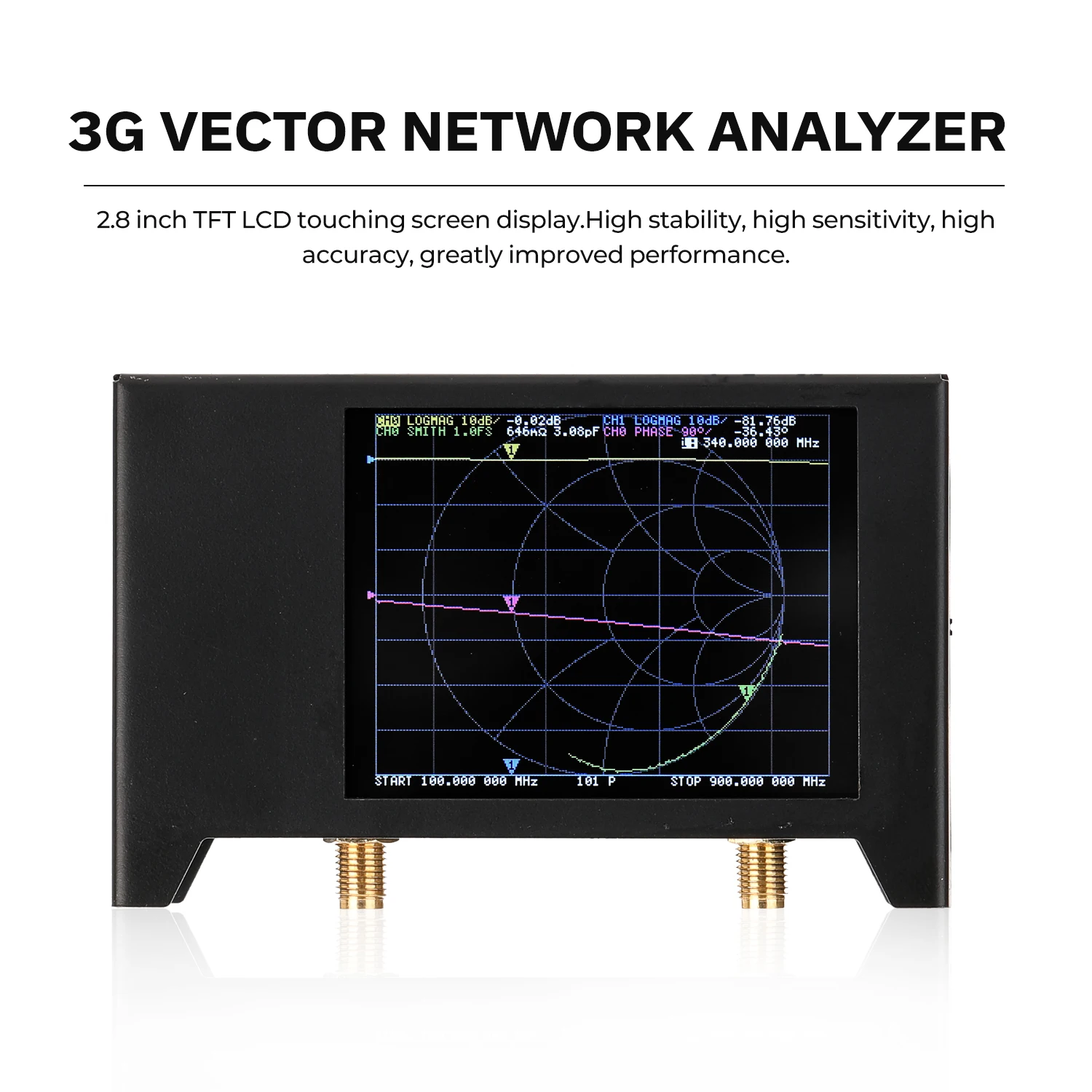

2.8 inch TFT LCD touching screen display.
Measurement frequency range is 50KHz~3GHz.
High stability, high sensitivity, high accuracy, greatly improved performance.

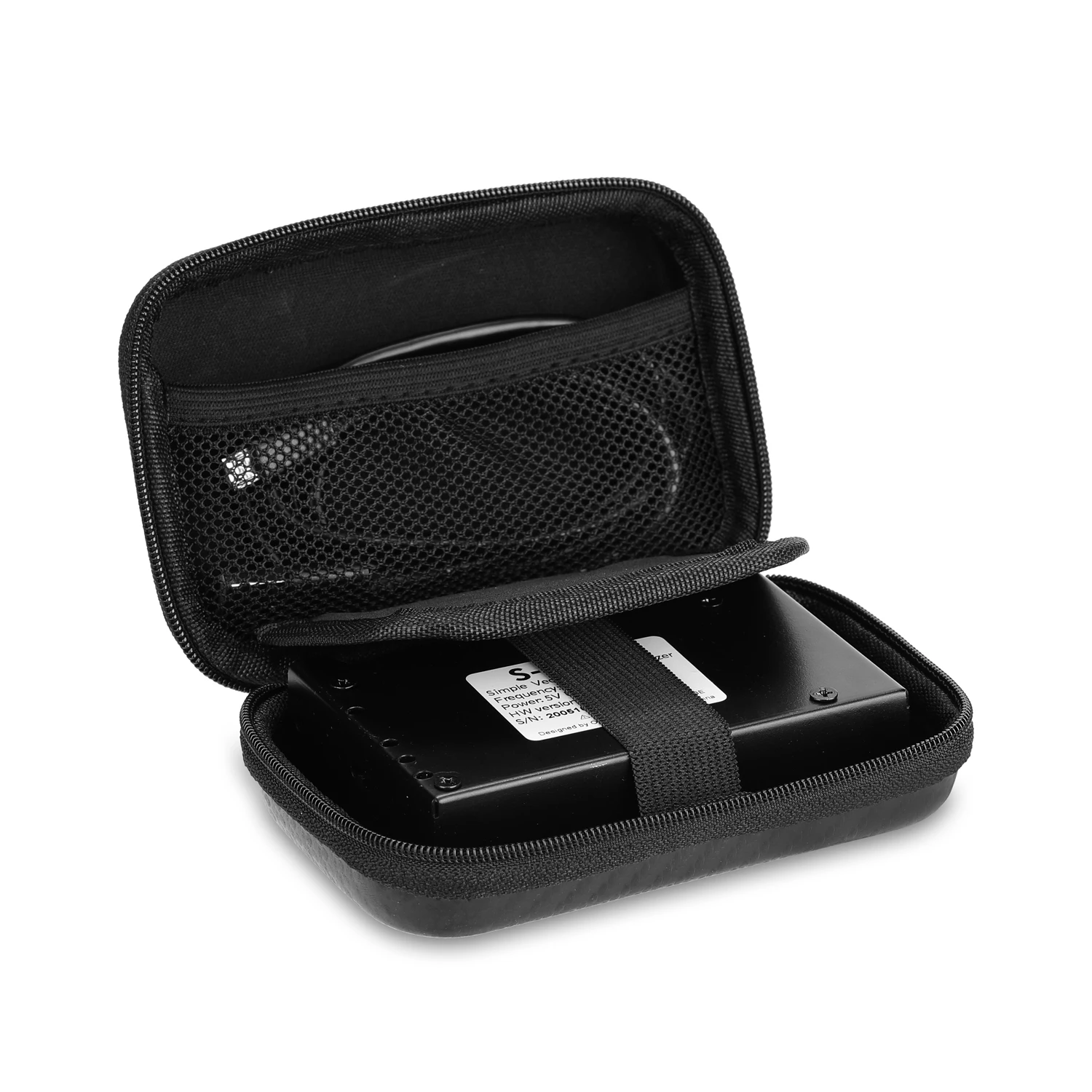

EVA storage bag is convenient for storage and carrying.

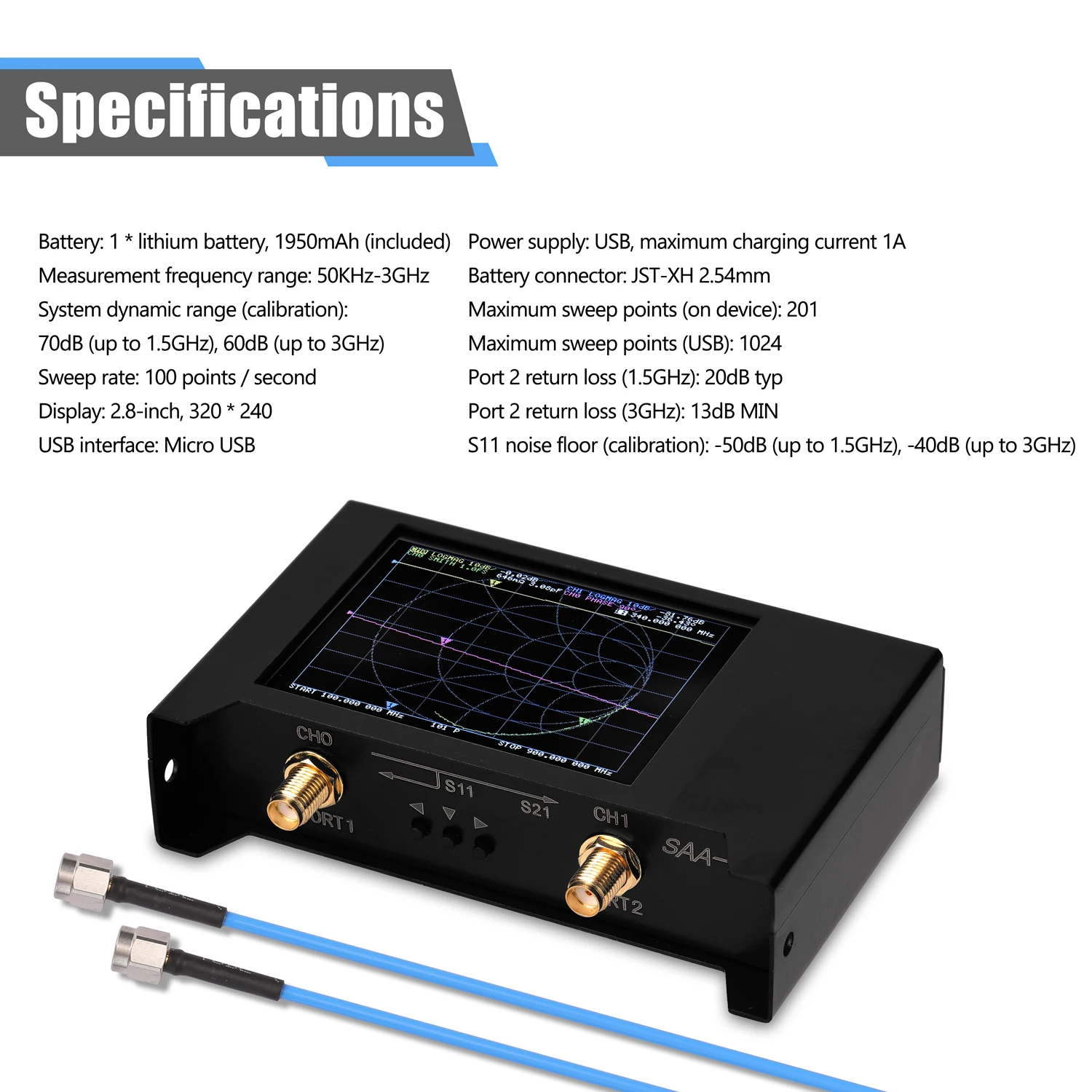

Specifications:
Main material: PCB+iron
Color: black
Battery: 1 * lithium battery, 1950mAh (included)

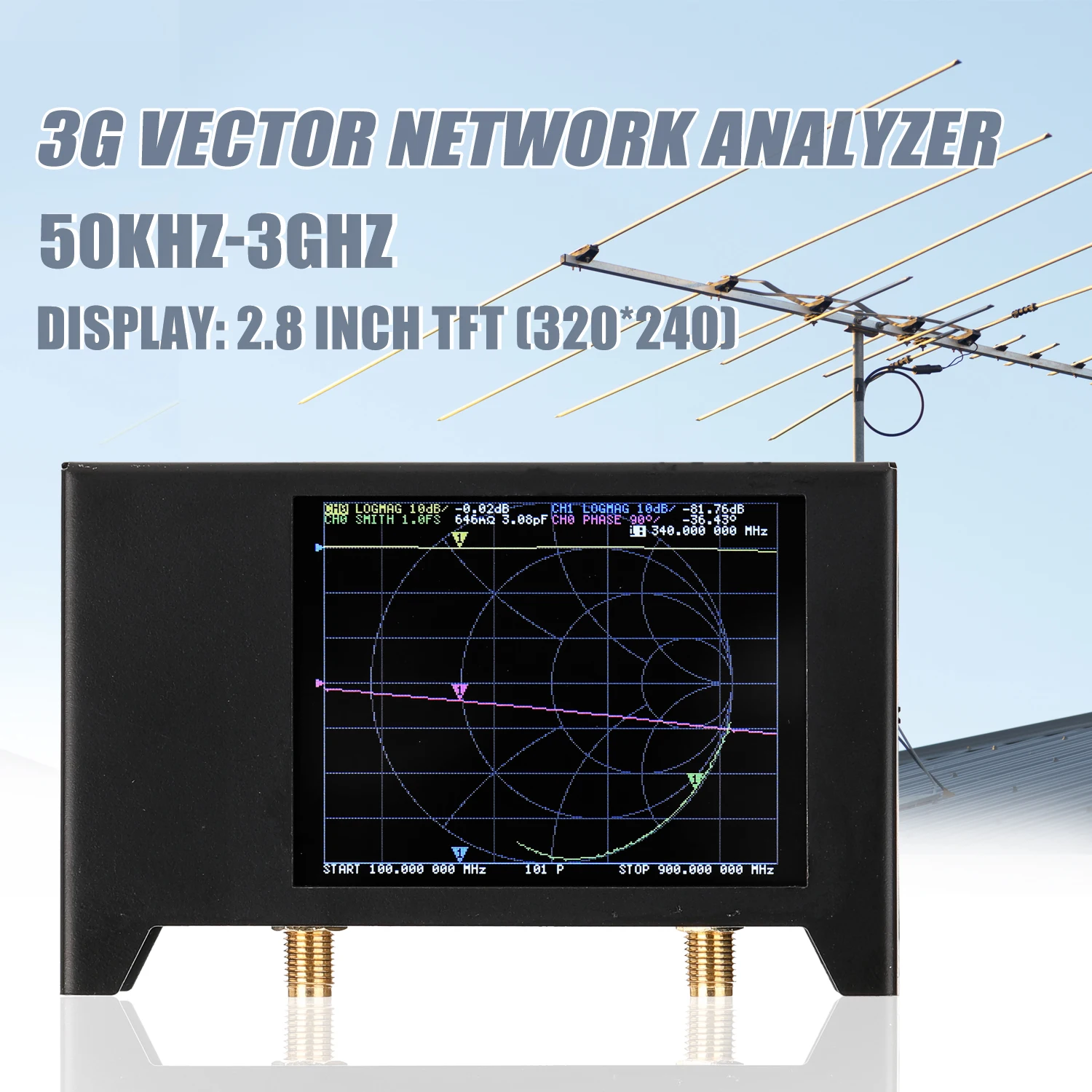

Measurement frequency range: 50KHz-3GHz
System dynamic range (calibration): 70dB (up to 1.5GHz), 60dB (up to 3GHz)
S11 noise floor (calibration): -50dB (up to 1.5GHz), -40dB (up to 3GHz)
Sweep rate: 100 points / second
Display: 2.8-inch, 320 * 240
USB interface: Micro USB
Power supply: USB, maximum charging current 1A
Battery connector: JST-XH 2.54mm
Maximum sweep points (on device): 201
Maximum sweep points (USB): 1024
Port 2 return loss (1.5GHz): 20dB typ
Port 2 return loss (3GHz): 13dB MIN
Package size: 160 * 110 * 55mm / 6.3 * 4.3 * 2.2in
Package weight: 365g / 12.9ounce

Note:
VNA-QT software download: https://github.com/nanovna/NanoVNA-QT/releases

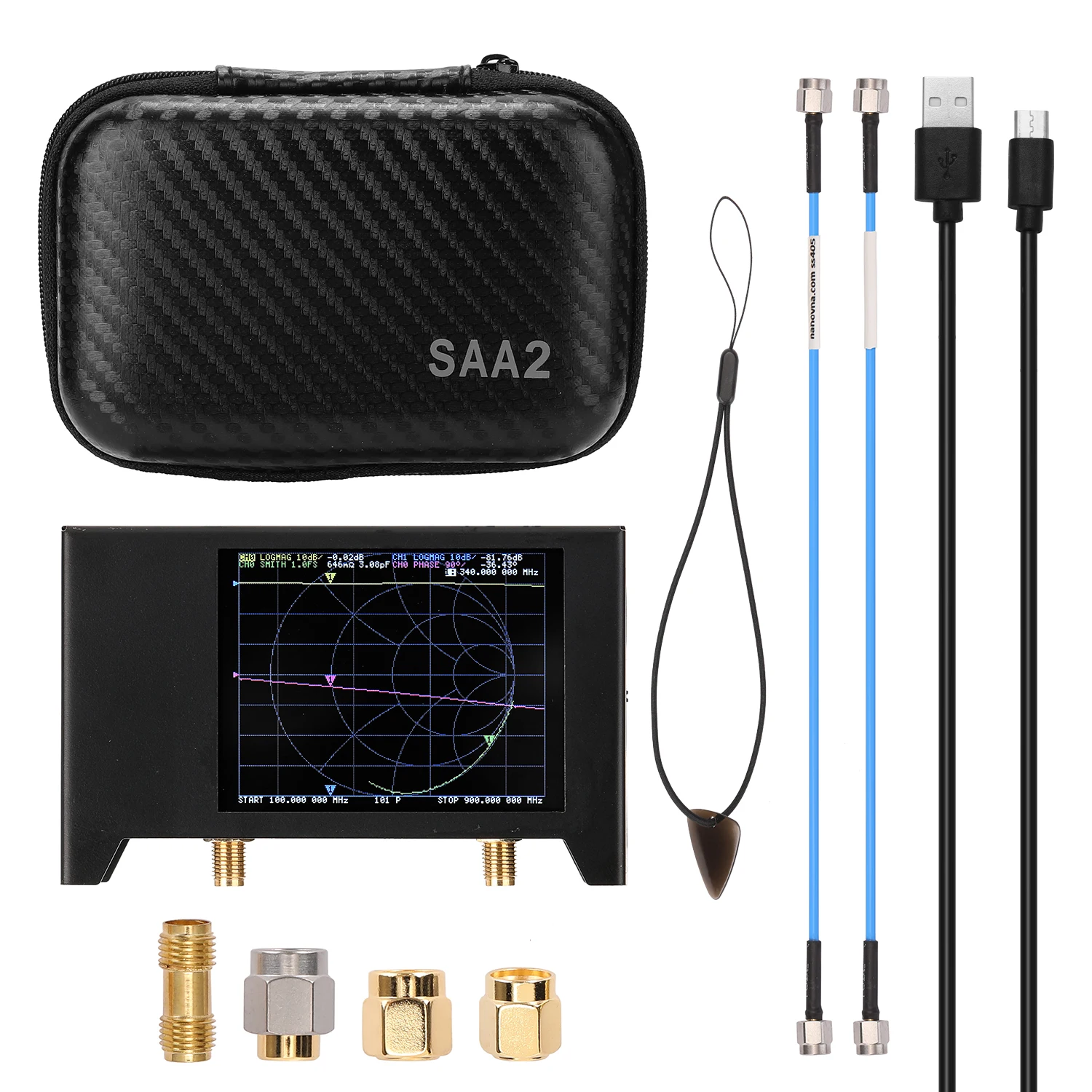

Packing List:

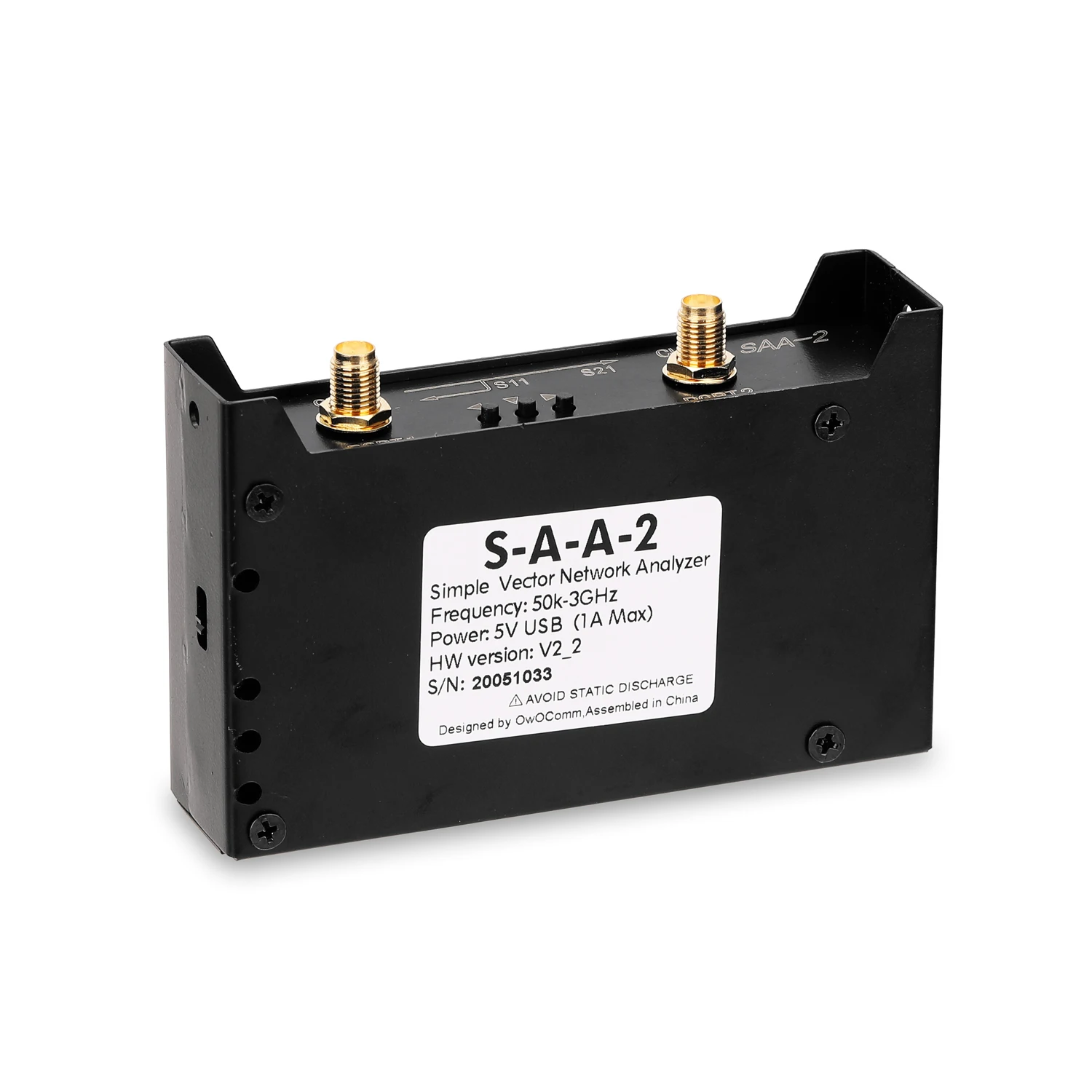

1 * S-A-A-2 Host

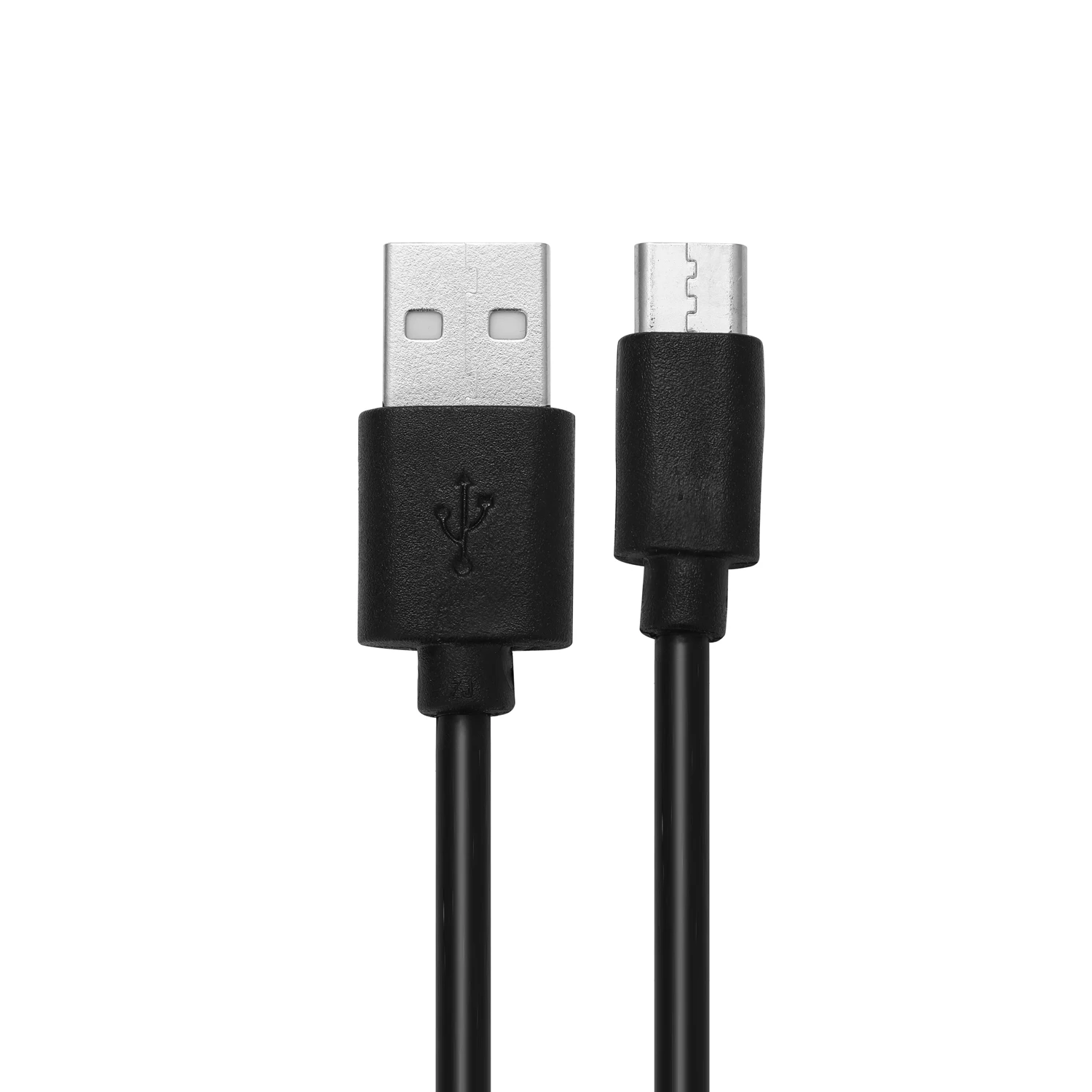

1 * USB Cable
2 * 300mm SMA Male to Male SS405 RF Cable

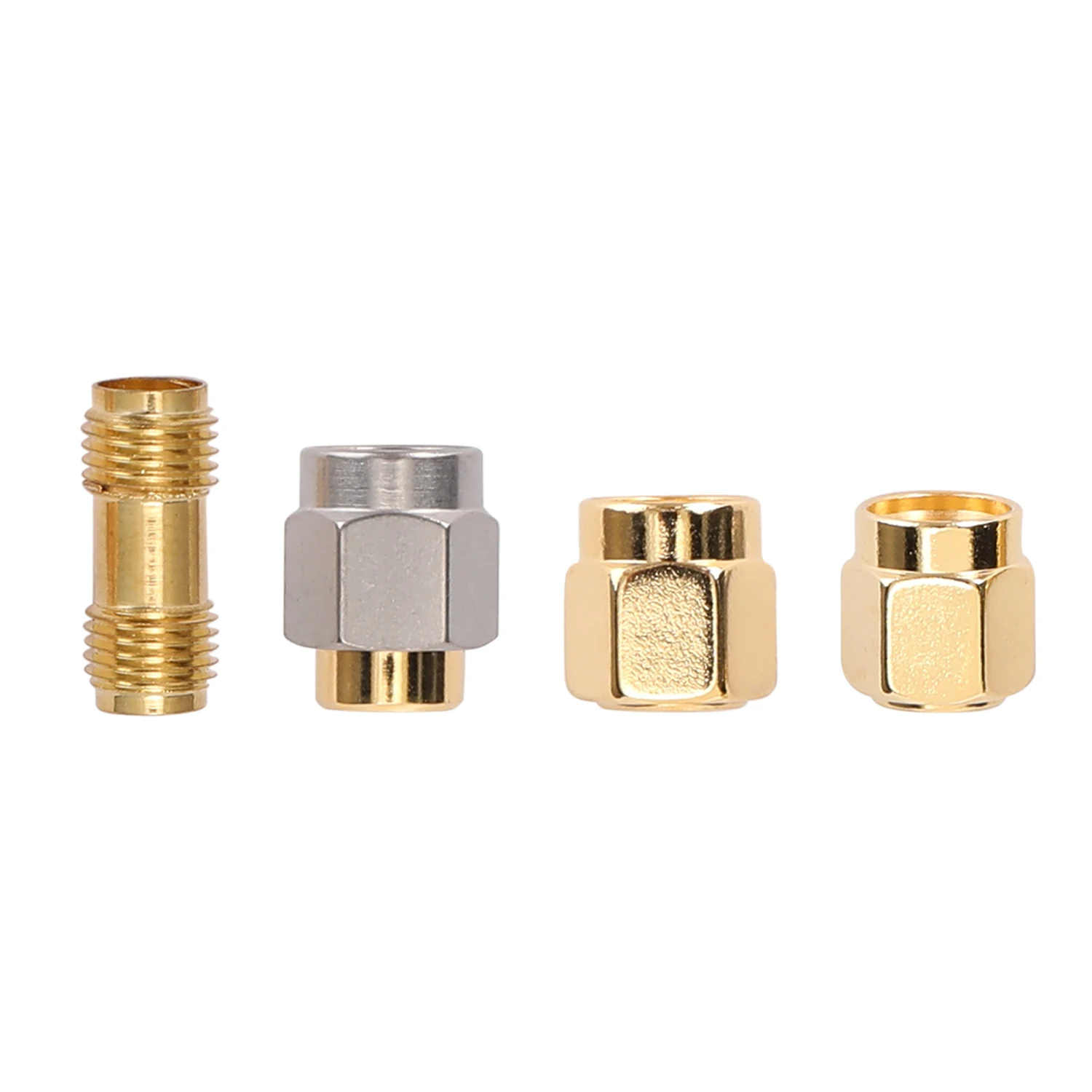

1 * SMA Simple Calibration Set OPEN
1 * SMA Simple Calibration Set SHORT
1 * SMA Simple Calibration Set LOAD
1 * SMA Female to Female Connector

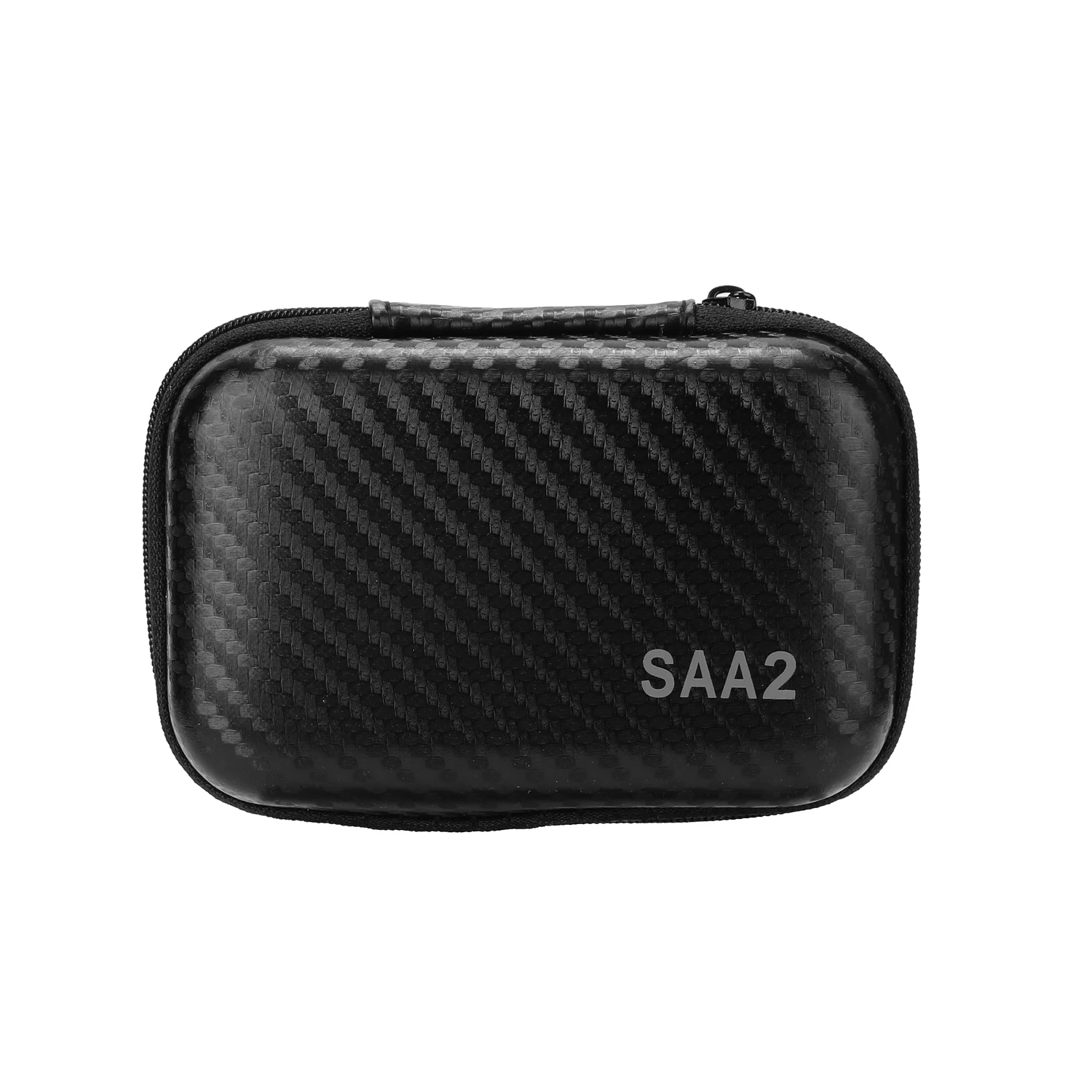

1 * EVA Storage Bag

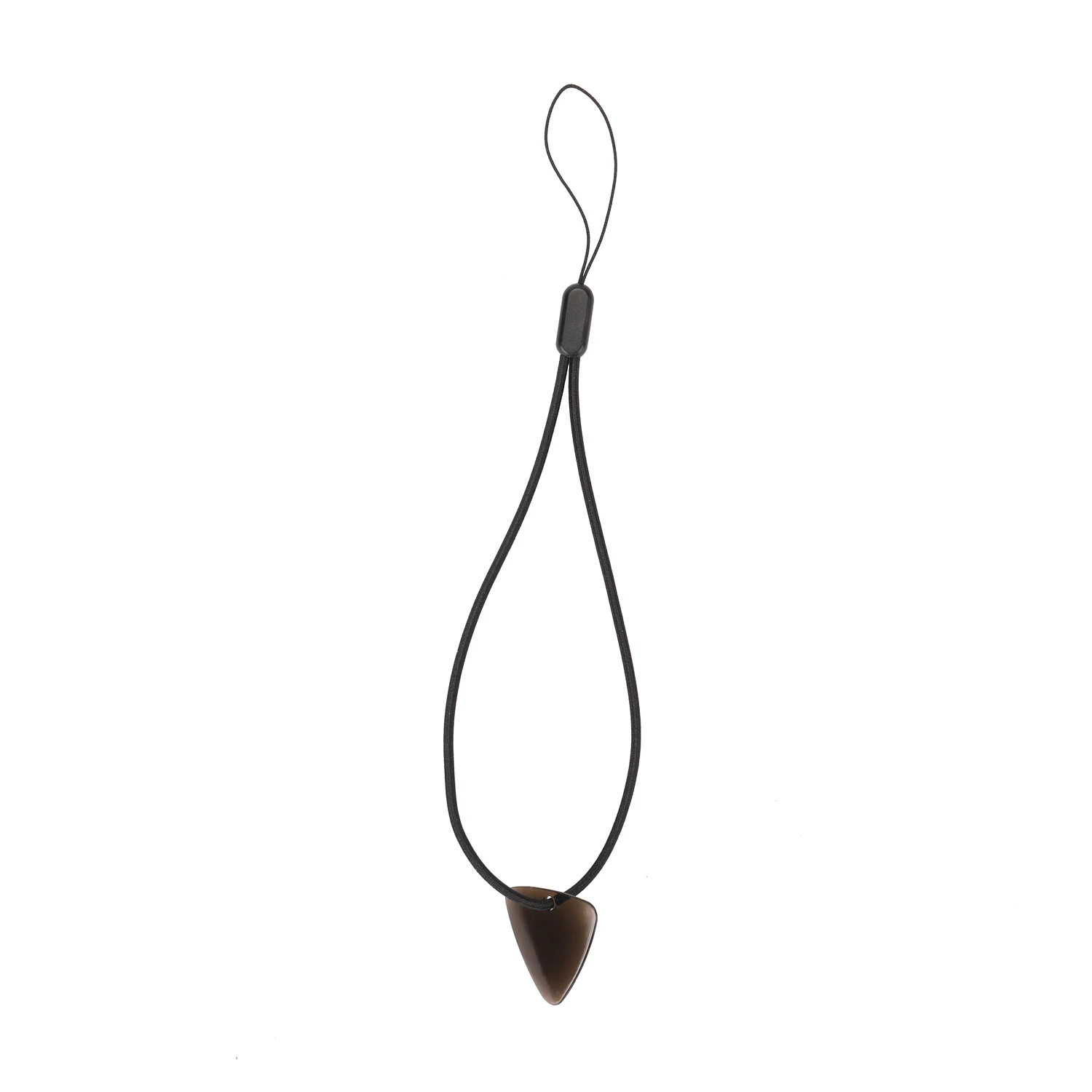

1 * Plectrum
