Профилегибочная машина для формовки листового металла 20 Калибр мягкая сталь 12 - купить

Купить Профилегибочная машина для формовки листового металла 20 Калибр мягкая сталь 12

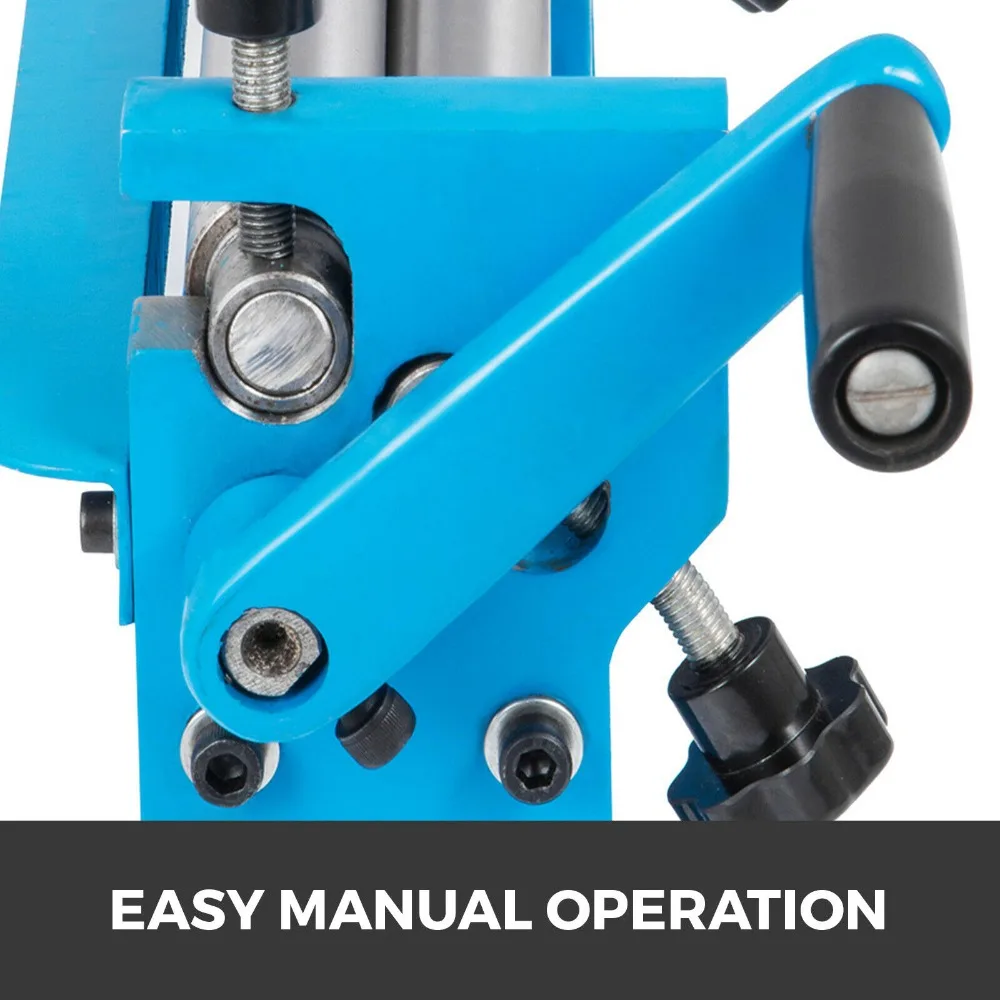

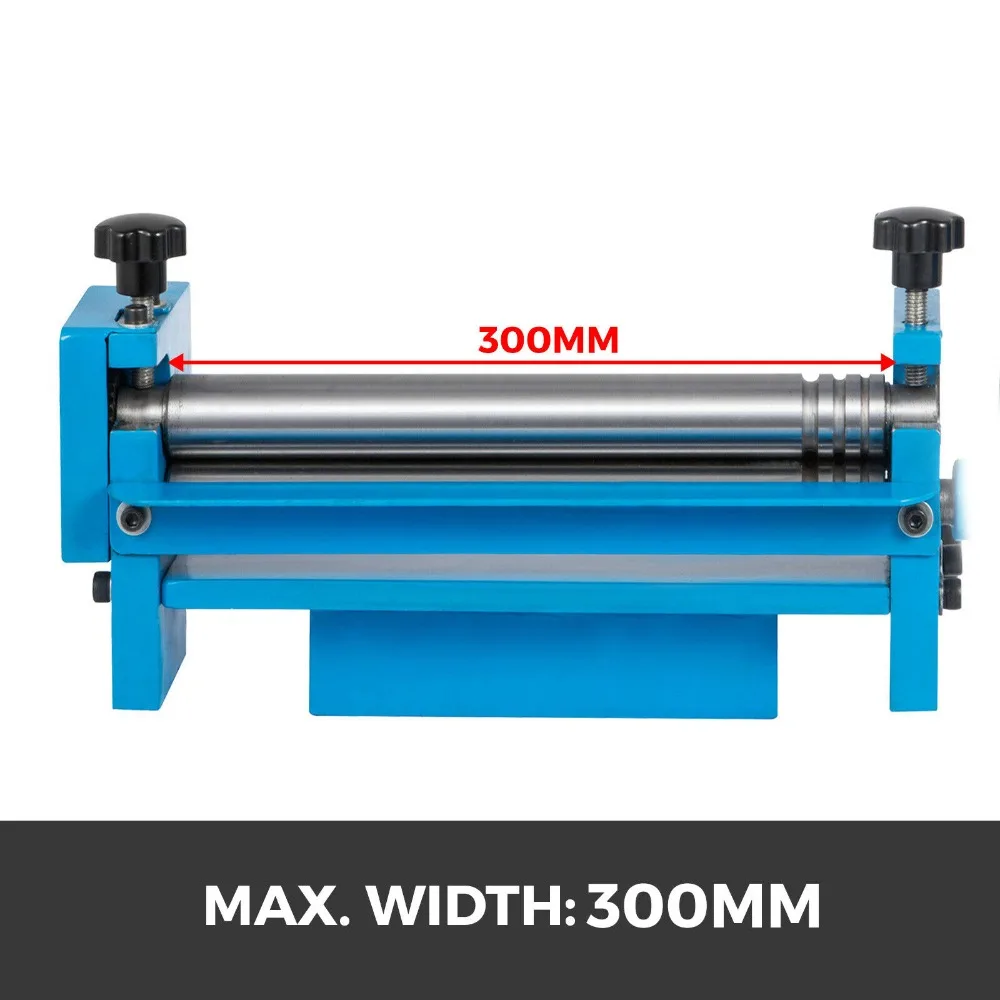

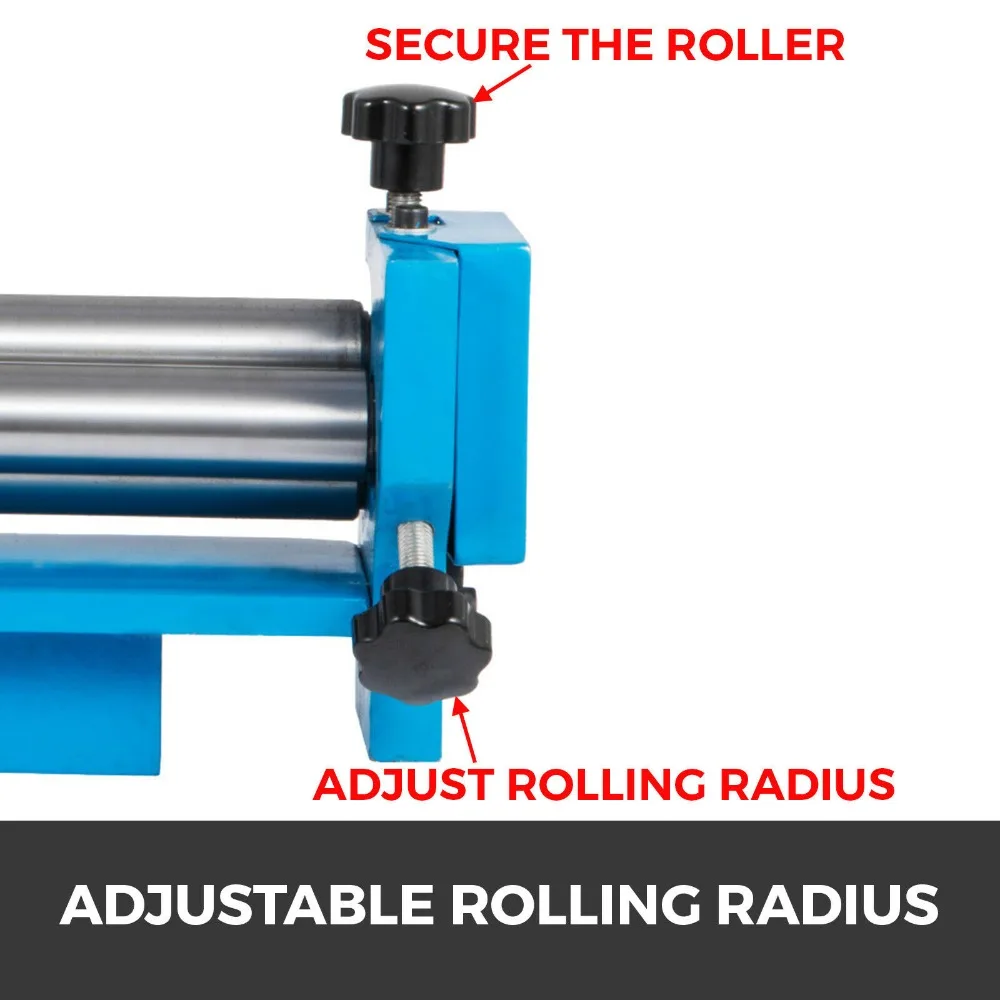

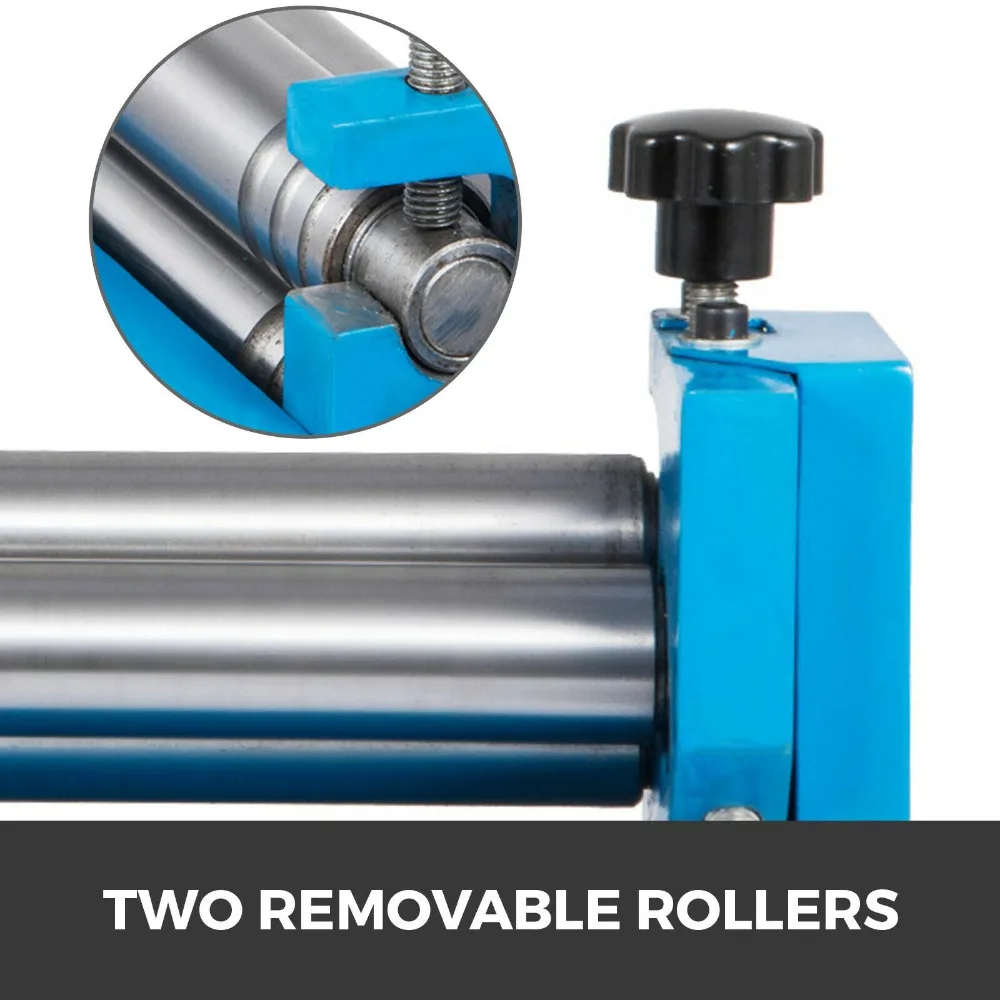

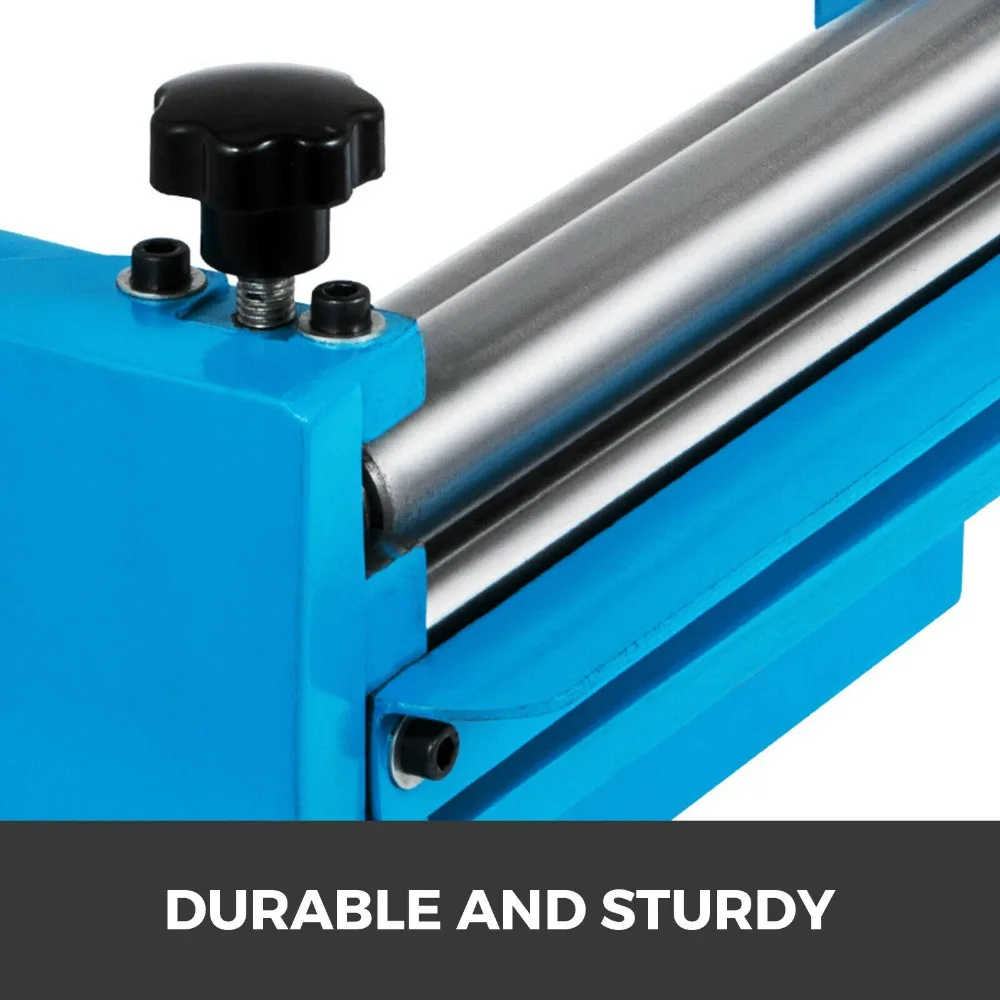

Slip Roll Forming Machine Sheet Metal Roller 20 Gauge Mild Steel 12" forming width Crank Handle & 2 Thickness Adjustment Pins Product Description SJ 300 Roller Bender   The sliding roller mounts easily to a sturdy workbench, providing strength and stability when forming sheet metal. The roller has adjustable knobs that allow the operator to adjust the spacing distance between the rollers to control the end radius and accommodate various sheet thicknesses.   Durable And Sturdy Rollers constructed of precision ground steel Slip Roll mounts easily to a sturdy bench, providing strength and stability while forming your sheet metal. It is hand operated and used for metal forming on metal plate up to 320mm in wide x 2.5mm in thick.   Easy manual operation The large crank and reinforced, hardened gears give you the mechanical advantage of rolling mild steel up to 20 gauge. Easily mounts on a bench.   Two removable rollers The upper axis of our sliding roller machine can be easily removed in order to remove the processed part. Two detachable rollers with three wire grooves (5/32 ’’, 15/64 ’’, 5/16 ’’). Minimum roll diameter: 1.5 ’’.   Adjustable rolling radius The roller has adjustable knobs that allow the operator to adjust the spacing distance between the rollers to control the end radius and accommodate various sheet thicknesses. Precision adjustment screw for upper and lower front rollers.   Maximum width: 320mm The 320mm sliding roller can create constant radius bends in sheets up to 20 gauges. This sliding roller machine is the ideal choice for sheet metal rolls up to 320mm.   Wide application The slip roller has three specially positioned rollers to make elbows, cones and cylinders. Our machine winds not only the materials but also the cones. It is a useful tool for press bending iron, steel, aluminum and other metals.   Feature 【DURABLE AND LARGE CAPACITY】 - The roller bender is constructed of precision ground steel. The non-slip roller provides strength and stability when forming your sheet. For forming metal on metal plate up to 320mm wide x 2.5mm thick. 【PORTABLE CRANK】 - Heavy duty reinforced crank and gear gives you the mechanical advantage of rolling mild steel up to 20 gauge. Easily climb onto a bench. Easily mount on a bench. 【REMOVABLE ROLLERS】 - The upper axis of the sliding roller machine can be easily removed in order to remove the processed part. Plus two detachable rollers with 3 wire grooves (5/32 ’’, 15/64 ’’, 5/16 ’’) 【ADJUSTABLE BEARING RADIUS】 - Adjustable knobs allow the operator to adjust the spacing distance between the rollers to control the radius of the ends and accommodate various thicknesses in the sheet metal. 【WIDE APPLICATION】 - Our sliding roller machine not only wind the materials, but also can make cones. The bender is a useful tool for press bending iron, mild steel, aluminum and other metals.   Specifications Maximum thickness: 2.5mm metal sheet; Stainless steel metal 2.0 mm Max diameter of steel wire: 6 mm Maximum width: 320 mm Roll diameter: 30 mm Package Content 1 x SJ 300 Sliding Roller Machine 1 x Gloves 1 x Iron sheet
