Мотор постоянного тока без щеток BLD-750 с контроллером движения 750 Вт для работы в обе стороны при напряжении 24/36/48 В - купить

Купить 750Вт Бесщеточный двигатель постоянного тока с контроллером вперед/назад 24В/36В/48В BLD-750.

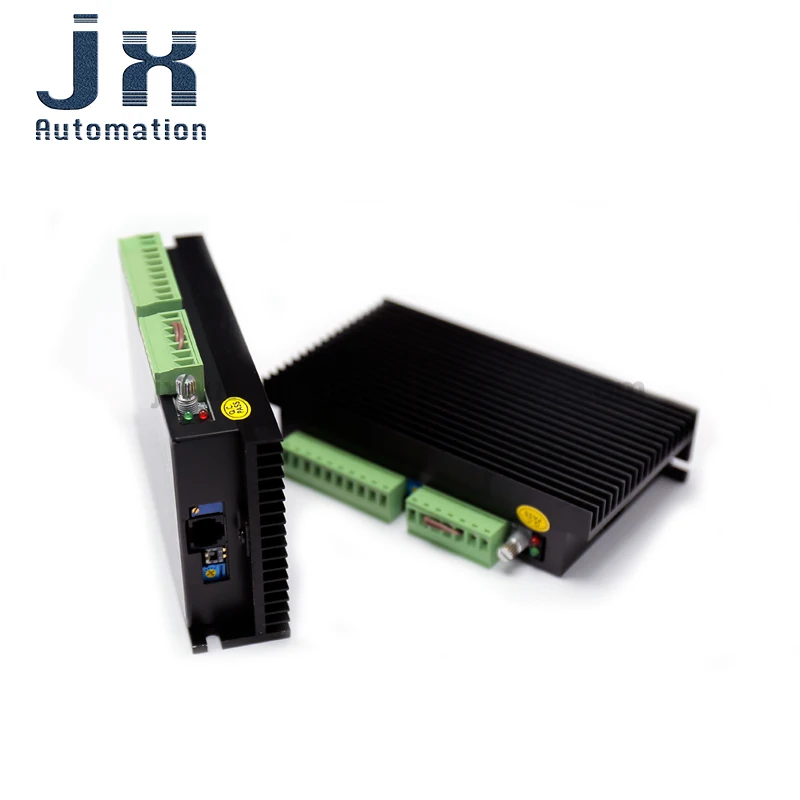

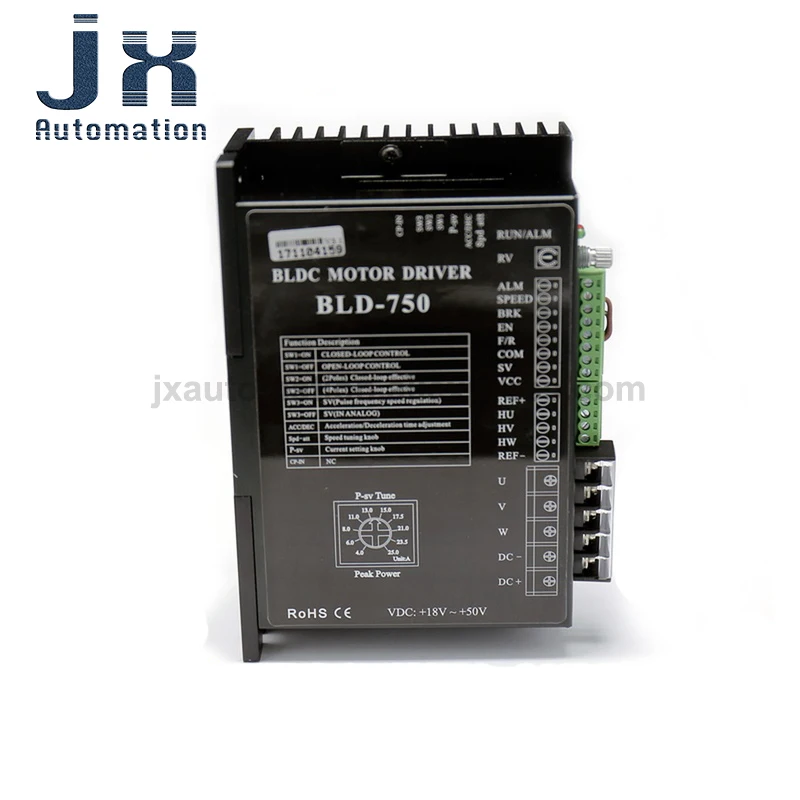

750W Brushless DC Motor Driver 24V/36V/48V Forward and Reverse Controller BLD-750

Characteristic
●PID speed, current double loop regulator
●High performance, low price
●20KHZ chopping frequency
●Start/stop control, forward/reverse control
●Speed classification function, pull code switch to set different speeds
●Electric brake function makes the motor react quickly
●Locked-rotor protection
●The overload multiple is greater than 2, the torque can always reach the maximum at low speed
●With over voltage, under voltage, over current, over temperature, Hall signal non
●Fault alarm function such as law,
●Drive size: 163*83* 30mm

Application field:
It is widely used in occasions that require speed regulation, such as frequency converters, DC speed regulators and other occasions that require stable speed regulation. Because of the built-in Hall signal sensor
The signal receiving circuit realizes the closed loop operation of the brushless motor. It can achieve rated torque output at low speed and realize stable operation. drive.
The device contains an electronic brake function, which can realize the rapid stop of the brushless motor. Various inputs of control signals (internal analog, external analog, external
Part pulse width) to meet the requirements of a variety of control systems; the new input signal loop design can use external active signals to control start and stop, or
Use external passive contact (relay, limit switch, etc.) input to control the start and stop of the motor.
Electrical indicators:
Standard input voltage: 24~ 48VDC
Maximum input overload protection current: 30A
Factory value of acceleration time constant: 0.5 seconds can be customized
