Купить Free Shipping HD-U60-75 U-disk Single Dual Color 2*HUB75 Asynchronous Controller Support 8M Memory for Full LED Display | Электронные
| Maybe you need related products |
![]() | ![]() | ![]() | ![]() |

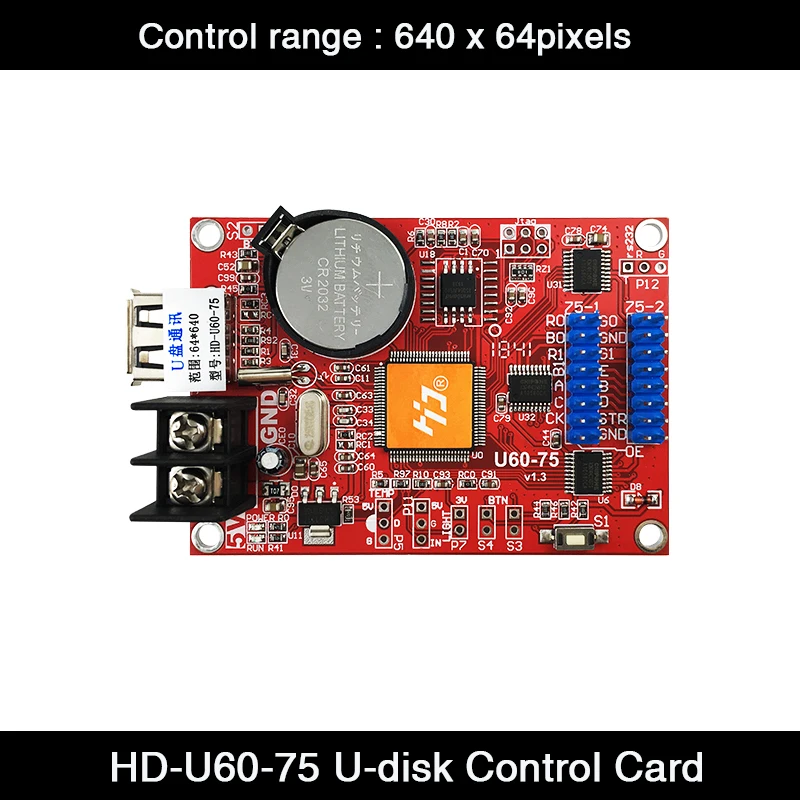

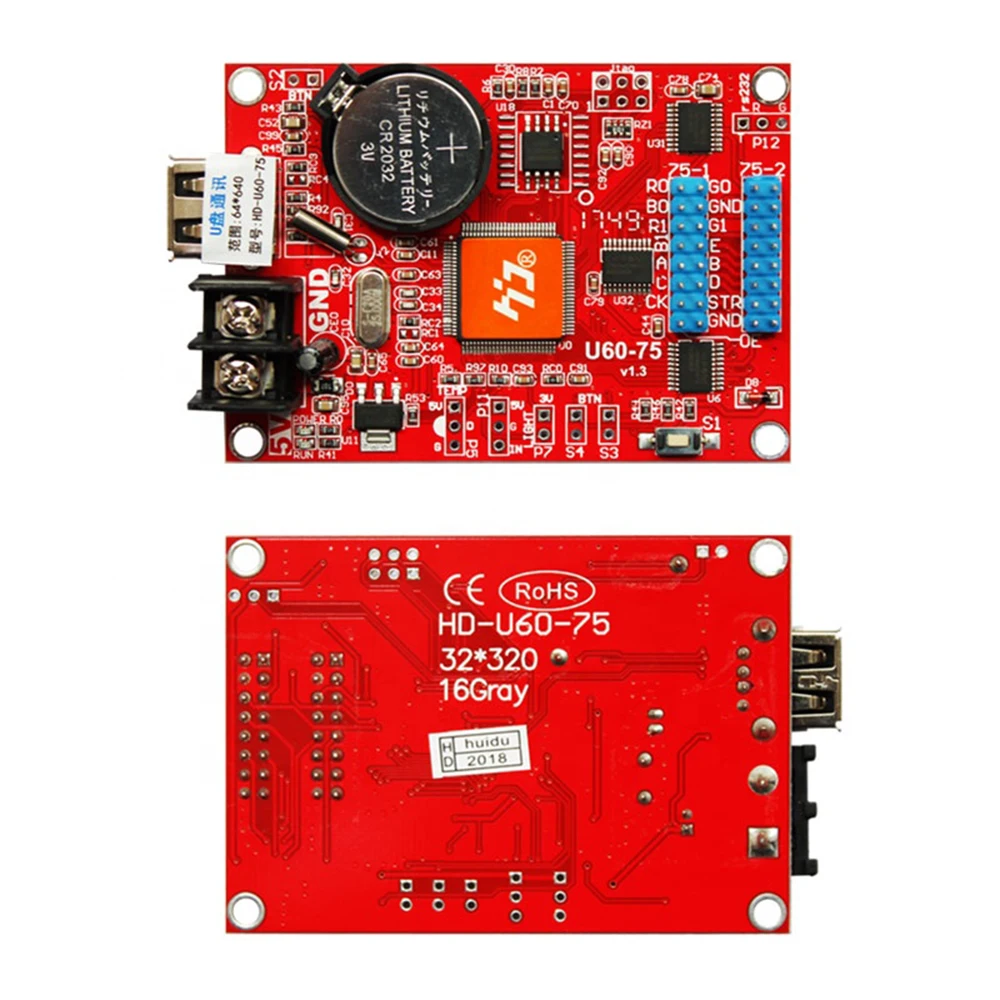

| HD-U60-75 Full Color Control Card(USB Port) |
|
| System Overview __ |
|
☆.For signage, store, outdoor advertising and otherinformation display, HUIDU technology launched our U-disk series control card, for updates the display programs by the USB port. |
☆.U60-75 is a U-disk series control card, through the USB port to update the program.Low cost, cost-effective, simplesoftware interface, easy to operate, better and richdisplay effect support for a variety of monochrome display. |
☆.Application softwareHD2018 HD2020(https://www.huidu.cn/en/download.html) |
|

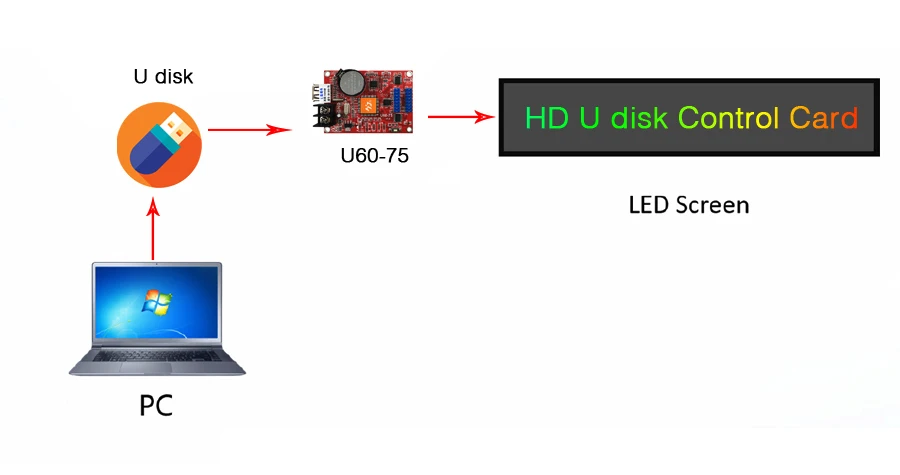

| Connection Demo __ |
|
![]()
|

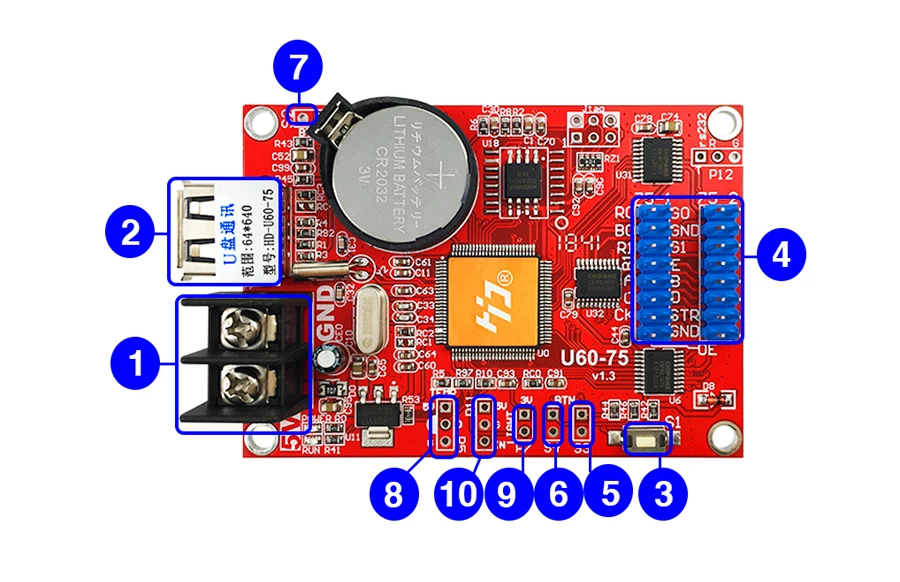

| Interface Description __ |
![]() |

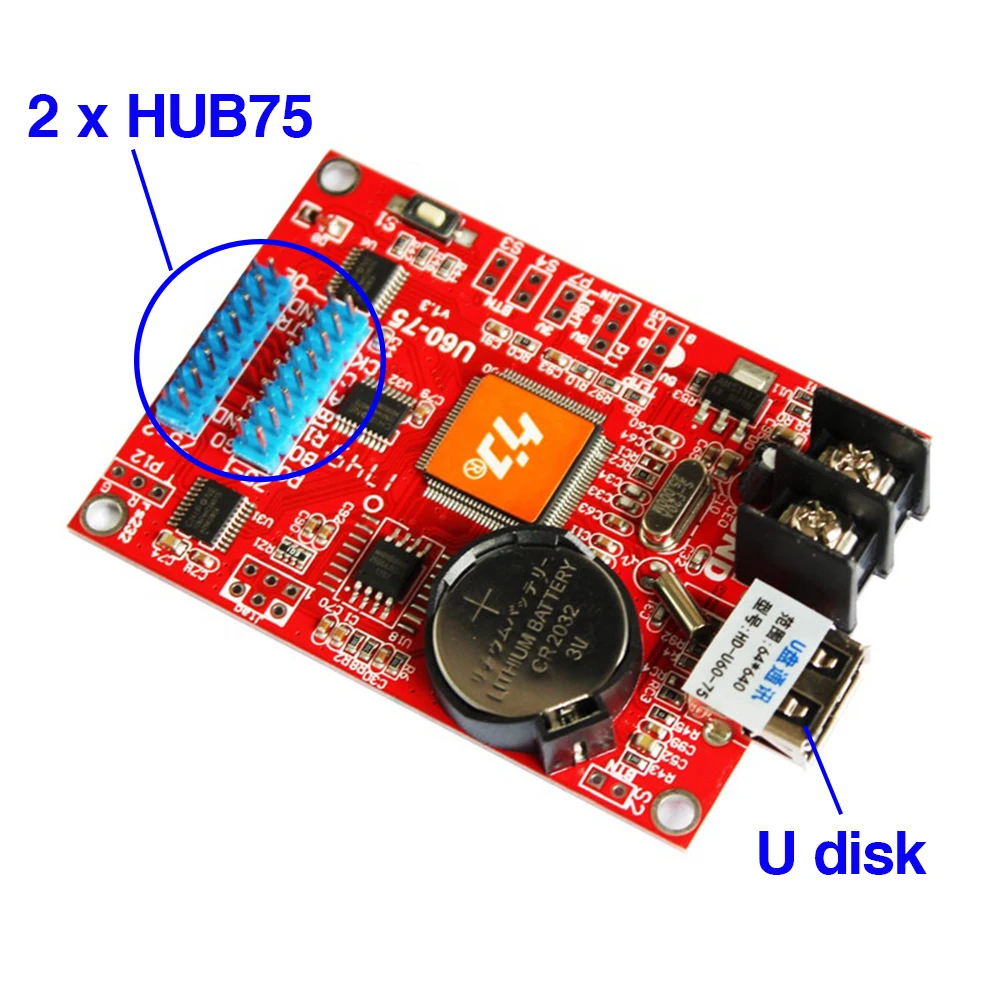

No. | Description | 1 | Power connector, connect 5V power supply； | 2 | USB ports，Updated program by U-disk； | 3 | Test button, click to switch screen test status； | 4 | 2*HUB75, connect the display； | 5 | S3，Connect the point switch, switch the previous program, timer reset, count down； | 6 | S 4，Connect the point switch, program control, timing pause, count reset； | 7 | S2，Connect the point switch, switch to the next program, the timer starts, count plus； | 8 | P5，Connect the temperature/humidity sensor； |
| 9 | P7，Connect the brightness sensor； | 10 | P11，Connect the IR, by remote control. | Note:1）To ensure that the control card is stored during normal operation, make sure the battery on the control card is not loose;
2）In order to ensure the long-term stable operation of the system, please try to use thestandard 5V power supply voltage.
|
|
|
| Product Features __ |
|
Content | Performance | Support module | Used indoor outdoor, semi-outdoor full color display | Control range | Full color:640 * 64pixels | FLASH Capacity | 8M Byte | Communication Port | U-Disk updated program | HUB Signal | 2 * HUB75 |
| Program Quantity | 1000pcs Programs. also can change program by buttonor remote if weld sensor (Remoter can select1-999 Programs) | Area Quantity | 20 areas with separate zone, and separated special effects and border | Display Showing | Text、Animation word、Time、Count、Lunar calendar | Display effect | 1. Support all languages(Software :HD2018)
2.Text、3D text, small video Picture, Time, Timing display
3. Border functions of Program border, area border and Custom design border.
4.gray level 256 and control range 320W*32H
5.support for simple animation characters
6.support for hollow fonts, strokes and other font settings
7.support for regional text background settings
8.support Excel form to add directly | Clock function | 1. Support Digital Clock/ Dial Clock / Lunar Time/
2. Countdown /Count up, Button Countdown / Count up
3. The font、size、color and position can be set freely
4. Support multiple time zones | Extended equipment | Remote function、temperature、humidity、brightness etc. (If weld sensor) .Remoter can select1-999 Programs | Automatic switch screen | Support switch on/off display by time automatically | Dimming | Brightness setting by Custom、Automatic(weld sensor) 、by time period regulation |
|
|
![]() |
| Product function comparison | Type | HD-U60-75 | HD-W60-75 | HD-W62-75 | Full color Ranges | 640*64pixels | 640*64pixels | 640*160; 1280*64pixels | Output | 2*HUB75 | 2*HUB75 | 5*HUB75 | Memory | 8M byte | 8M byte | 32M byte | Comunication | U-Disk | U-Disk & Wi-Fi | U-Disk & Wi-Fi | Scan | Static - 1/32scan | 7color | √ | √ | √ | Programs | Max 1000 Programs,Can play by time section or control by buttoms | Regions | Max 20 regions, support regions overlap | Content | Text/Picture/Timing/Animation/3D Text/EXCEL/SWF/Temperature | Control | Can play by time section or control by buttoms/remoter | Effects | More then 40 effects and image background,shaped boder | Cross screen | × | × | √ | Extention | Temprature/Humidity/IR Remoter/3buttoms for Program control | Auto shutdown | √ | √ | √ | Brightness | By Time section / By Sensor | Evironment | voltage: 4.2V-5.5V, temperature: -40℃ - 80℃， Consumption＜0.5W | Special Fuctions | 1.First 3D text effect in all LED trades,
2.Support regions overlap,
3.Support Graylevel,regions background,smart setting,
4.Suppory buttom counter up/down,buttom timer, realtime region,
5.Support text rotation,90°，180°and 270°.
6.Wi-Fi control card auto Search Controller, Support APP(LedArt). | HUB Define | ![]() |
|
![]() |
![]() |
![]() |
![]()
|
![]() |
