RK2672AM/RK2672CM/RK2672DM AC/DC 5KV Withstanding Voltage Tester Hipot tester 10mA/20mA/100mA/200mA RK2672BM AC 5KV/100mA Инструменты - купить

Купить RK2672AM/RK2672CM/RK2672DM AC/DC 5KV Withstanding Voltage Tester Hipot tester 10mA/20mA/100mA/200mA RK2672BM AC 5KV/100mA | Инструменты

Equipped With PLC Signal Input,Output Interface,It Can Constitute Easily Integrated Test System With PLC Expediently.(Optional)

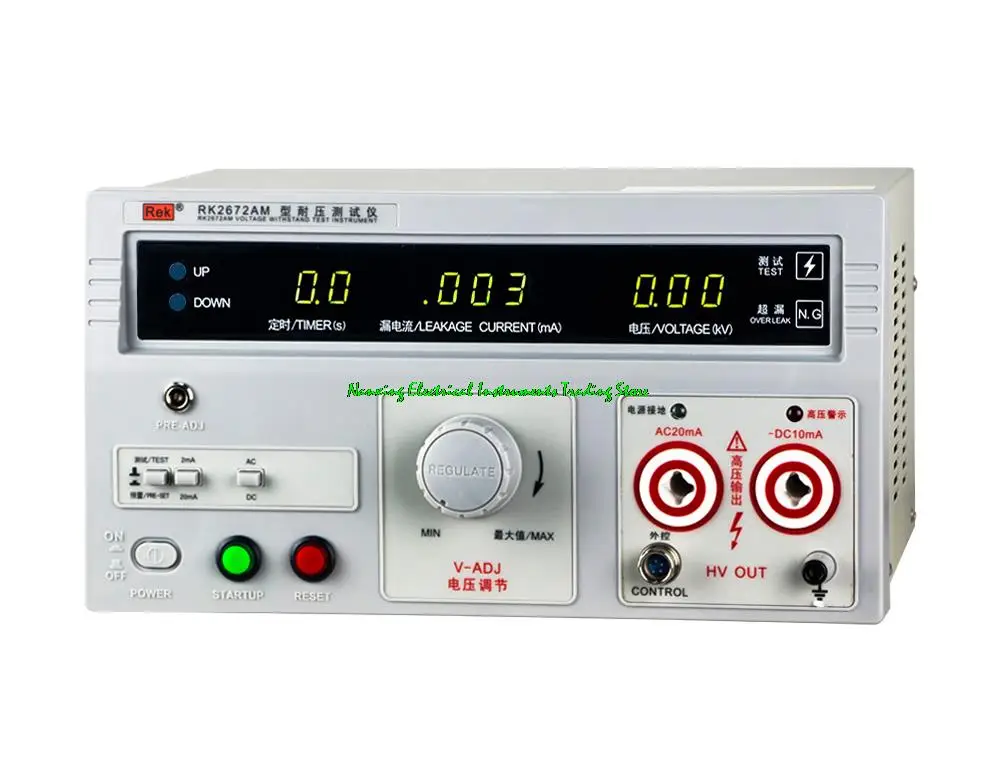

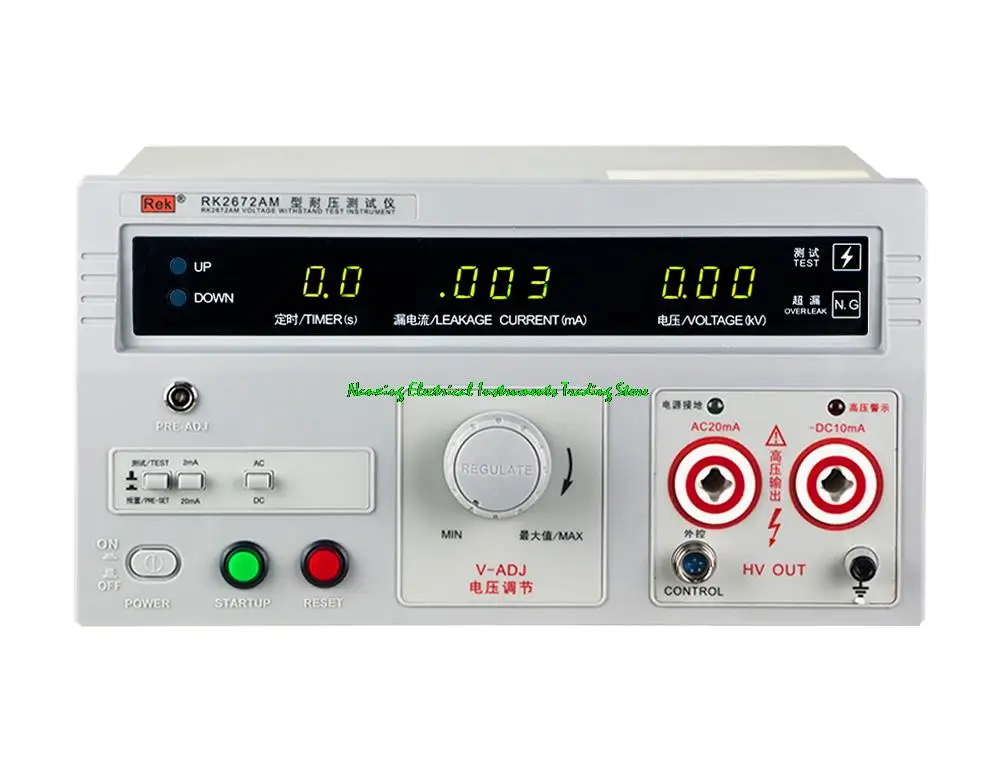

Product Introduction
The RK2672AM Withstand Voltage Tester Of Meiruike Is The Measurement Instrument For  Compressive Strength,It Mainly Used For Insulation Leakage Safety Test Of Product.It Can Test The Electrical Safety Performance Index Of Breakdown Voltage,Leakage Current Of Which All Kind Of The Measured Object Intuitive,Accurate And Fast,And Can Be Used For Testing The Components And Overall Performance As A High Voltage Source.
This Series Of Tester According To The Following Standards:Standard For Household Electrical Appliances(IEC6035,GB4706.1-2001, GB4706.1-1998),Standard For Lamp(IEC60598-1-1999, GB7000.1-2000),Standard For Information (GB8898-
2001,GB12113.GB4943-2001, IEC60065,IEC60950) And So On.

Application Area
Components:diode,Triode,High-Voltage Silicon Stack,All Kinds Of Electronic Transformer, Connector Assembly,High Voltage Electrical Equipment.
Household Electric Appliances:TV,Refrigerator,Air Conditioner,Washing Machine,Dryer, Electric Blanket,Charger Etc.
Insulation Material:heat Shrinkable Tube,Capacitor Film,High Pressure Tube,Insulating Paper,Insulated Shoes,Rubber Insulating Gloves,PCB Circuit Board Etc.
Instruments And Meters:oscilloscope,Signal Generator,DC Power Supply,Switching Power Supply And Other Types Of Machine.
Lighting Appliances:ballast,Road Lights,Stage Lights,Portable Lamps And Other Types Of Lamps.
Electric Heating Appliances:electric Drill,Pistol Drill,Cutting Machine,Grinding Machine,Electric Welding Machine Etc.
Wire And Cable:high Voltage Cable,Optical Cable,Electric Cable,Silicone Rubber Cable, Etc.

Performance Characteristics
AC/DC Voltage 5kV Universal Withstand Voltage Tester.
The Output Voltage Regulated Output By The Regulator,Which Has High Reliability And High Durability.
Using High Brightness LED Digital Displaying Test Time,Voltage,Current,It Can Display The Breakdown Current Value And Voltage Value In Real Time.
Alarm Current Value Can Be Preset Arbitrarily.
Test Time Using Three Digital Tube Display
Equipped With PLC Signal Input,Output Interface,It Can Constitute Easily Integrated Test System With PLC Expediently.(Optional)
