Купить 1U Rack 4 chanels H.265 /H.264 chs SDI input and SDI+IP output Video Encoder Support HTTP/RTSP/RTMP... | Электроника
| ModE | ZY-ES314-1U |
| Video | |
| Input interface | 4*SDI |
| Support resolution | 1080P\1080i\720P ,1600x1200\1400x1050\1440x900\1280x1024\ 1280x960\1280x800\1024x768\800x600 etc. |
| Frame rate | 25/30 frame |
| Output interface | 4*Ethernet port(RJ45),1*SDI |
| Video encoding | H.265 Main Profile H.264 Baseline Profile H.264 Main Profile H.264 High Profile |
| Code Rate control | 16kbps- 12Mbps |
| Code Rate | CBR/VBR |
| Audio | |
| Input interface | 4*External audio |
| Audio encoding | ACC, MP3 |
| Sampling rate | Auto |
| Bit-rate Option | 32k,44.1K,48K,64K,96K,128K,160K,192K,384K |
| Sampling Accuracy | 24 Bit |
| Audio Data-rate | 64Kb/s to 384Kb/s |
| Network | |
| RJ45 | 10M/1000M Ethernet port |
| Program streaming | HTTP, RTSP, RTMP, RTMPS, HLS, FLV,ONVIF(UDP/RTP) |

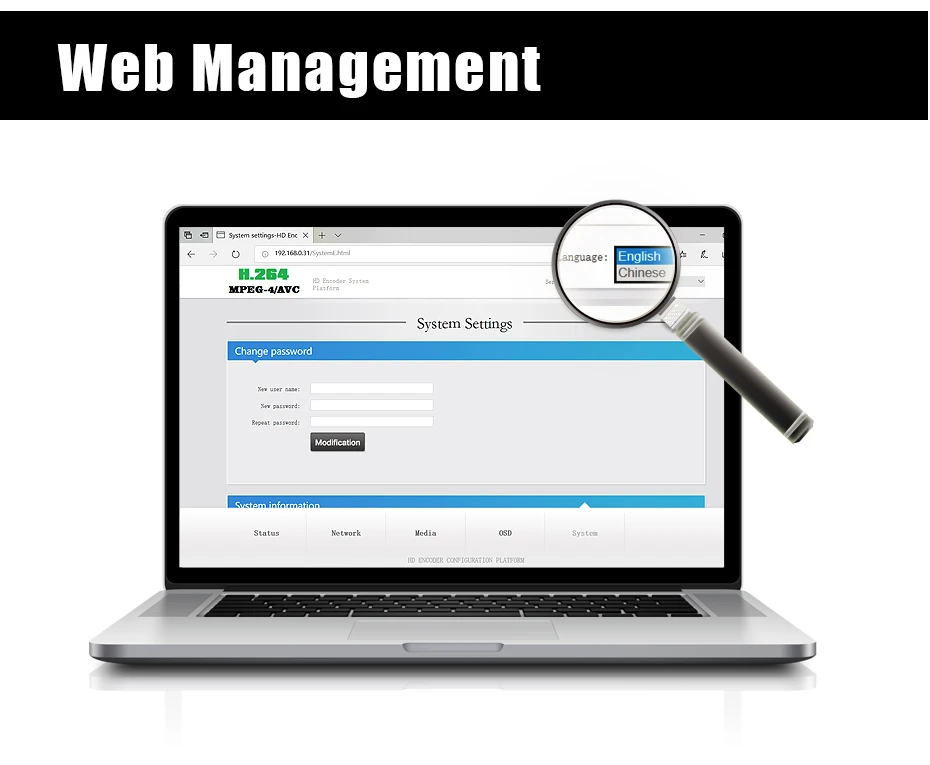

| Control Panel | Web panel ( Language is English), remote upgrade |
| Firmware Update | Enable by uploading files to the dashboard |
| General | |

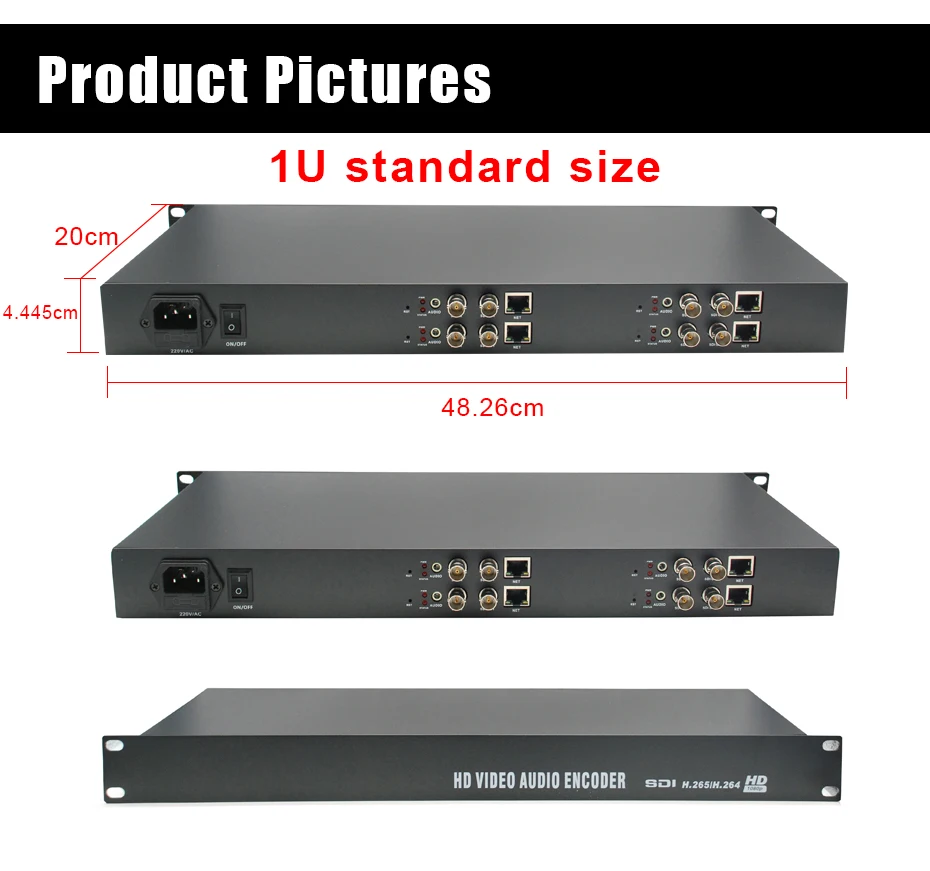

| Dimension(W*L*H) | 48.2*20*4.4cm |
| Gross Weight | 1.5kg |
| Temperature | 0 ~ 45℃(for working),-20~60℃(for storing) |
| Humidity | <90%, non-condensing |
| Input Voltage | AC/DC 110-240V |
| Power Consumption | 5W |

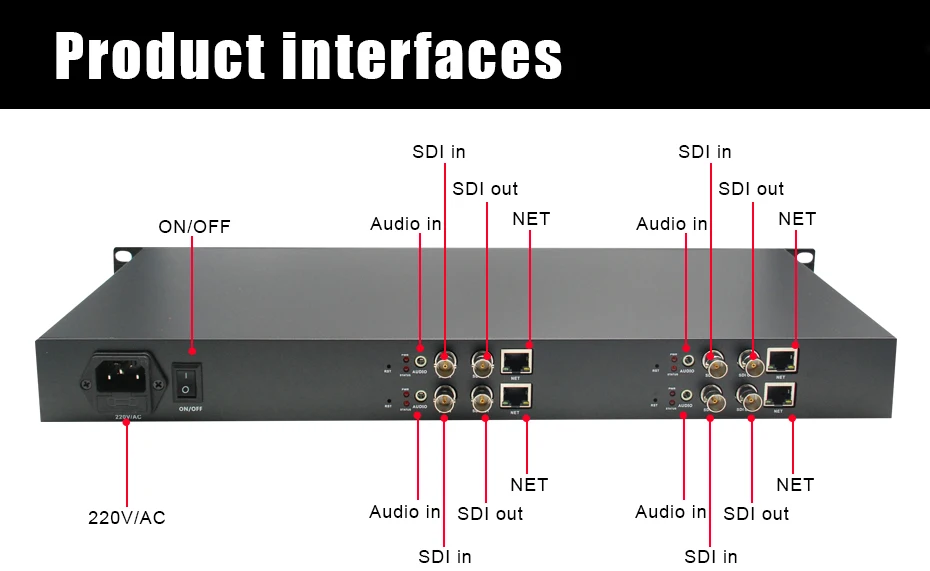

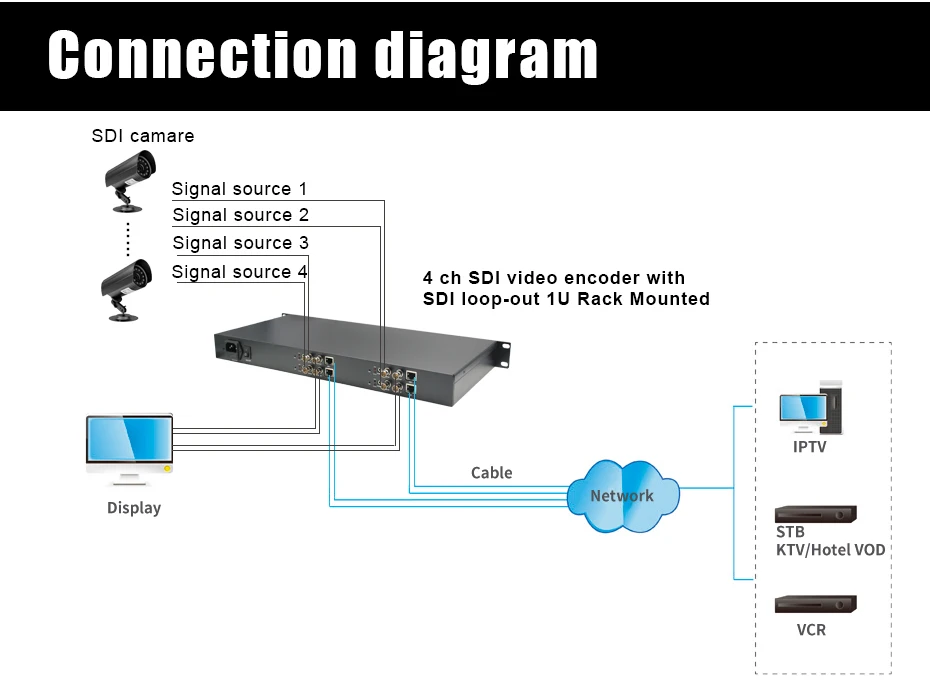

The 1U Rack-mounted SDI Video Encoder with loop-out is our professional HD audio and video encoding device with powerful functionality. It is equipped with 4 channels SDI and 4 channels stereo audio(3.5mm) input supporting H.265& H.264 /AVC high profile /main profile /baseline profile coding format and two video streamings output each channel, which is streaming by HTTP, RTSP, UDP /RTP, RTMP, RTMPS, HLS, FLV, ONVIF. Also, there is 4 channel SDI loop out for local display. Its high integration and cost-effective design make this device widely used in a variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also, the encoder works with the online live broadcast platform, such as YouTube, Ustream, Twitter, Facebook, etc.
This encoder support SDI embedded audio or external audio optional from output video streaming each channel.
Not only 4 channel, we also produce 1 channel SDI video encoder with 1U rack and multi-channel SDI video encoder which is packed by 3U box. For 3U rack, max supports 16pcs encoder cards to be installed.
Features:

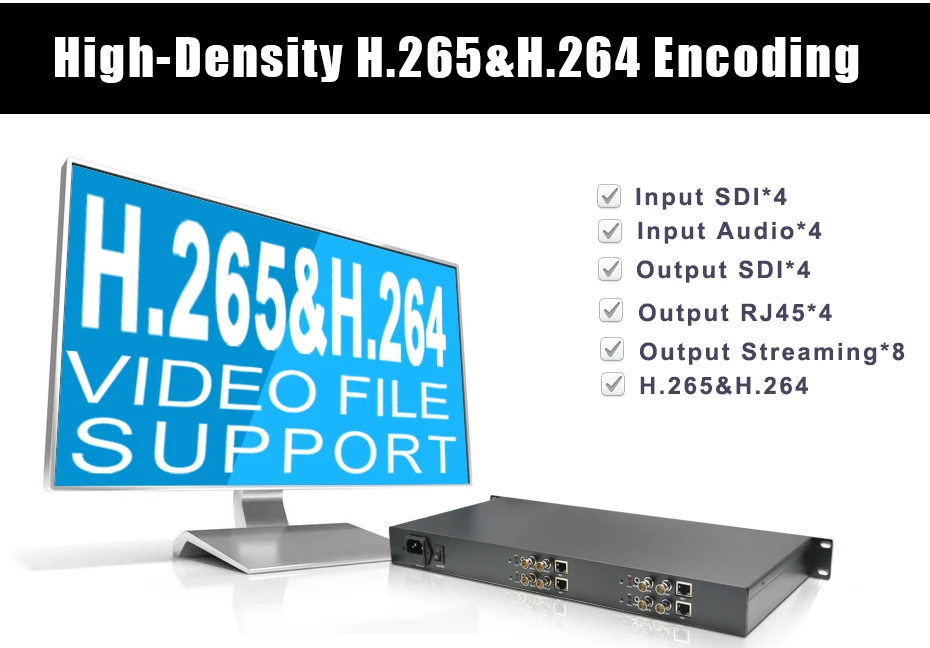

Support H.265 & H.264 /AVC baseline /main /high profile encoding
From 16Kbit/s to 12Mbit/s for CBR /VBR code rate controlling

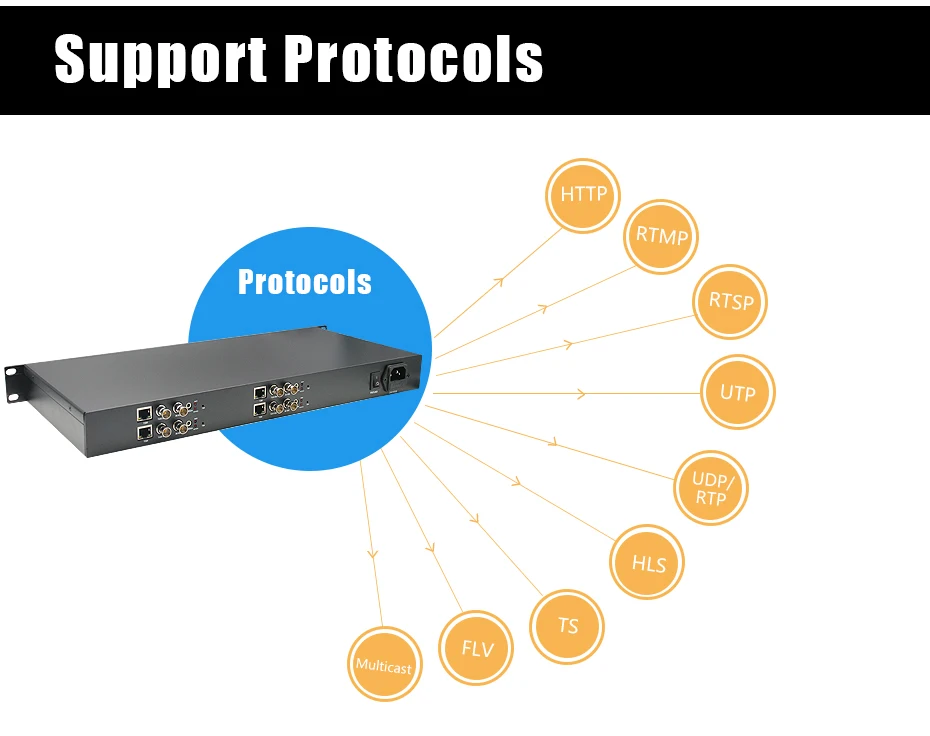

Support HTTP, UDP /RTP, RTSP, RTMP, RTMPS,HLS, FLV, ONVIF streaming protocol

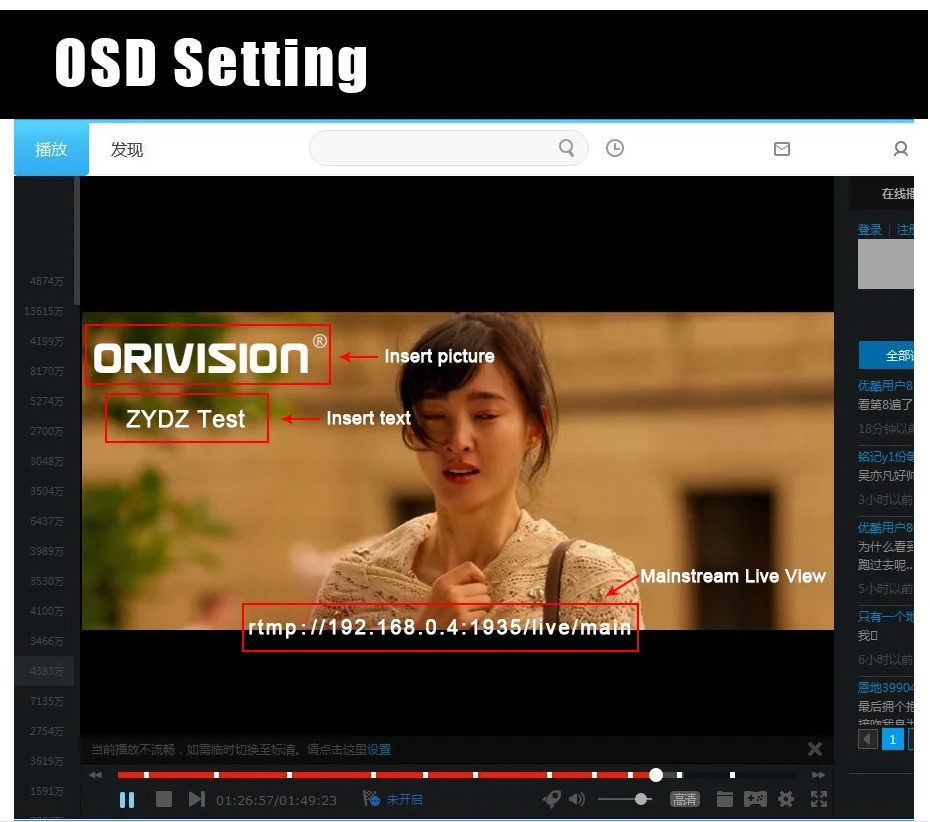

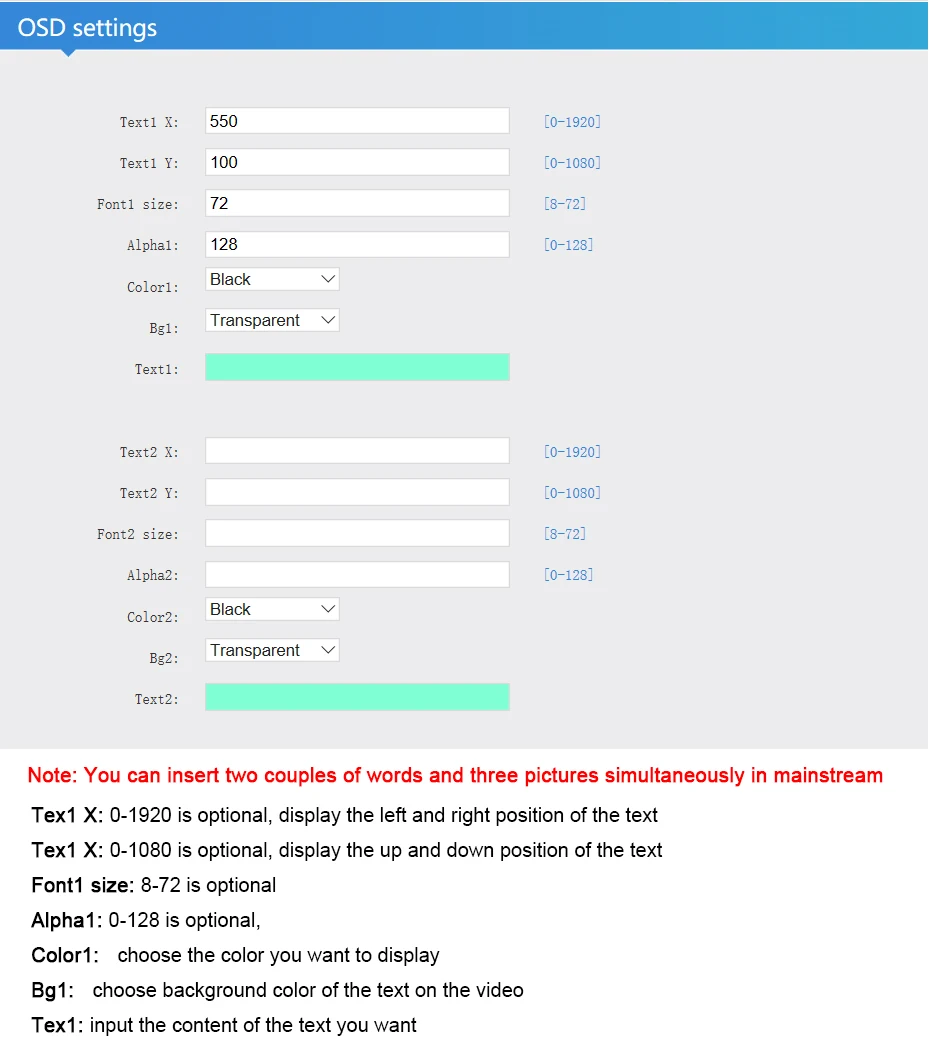

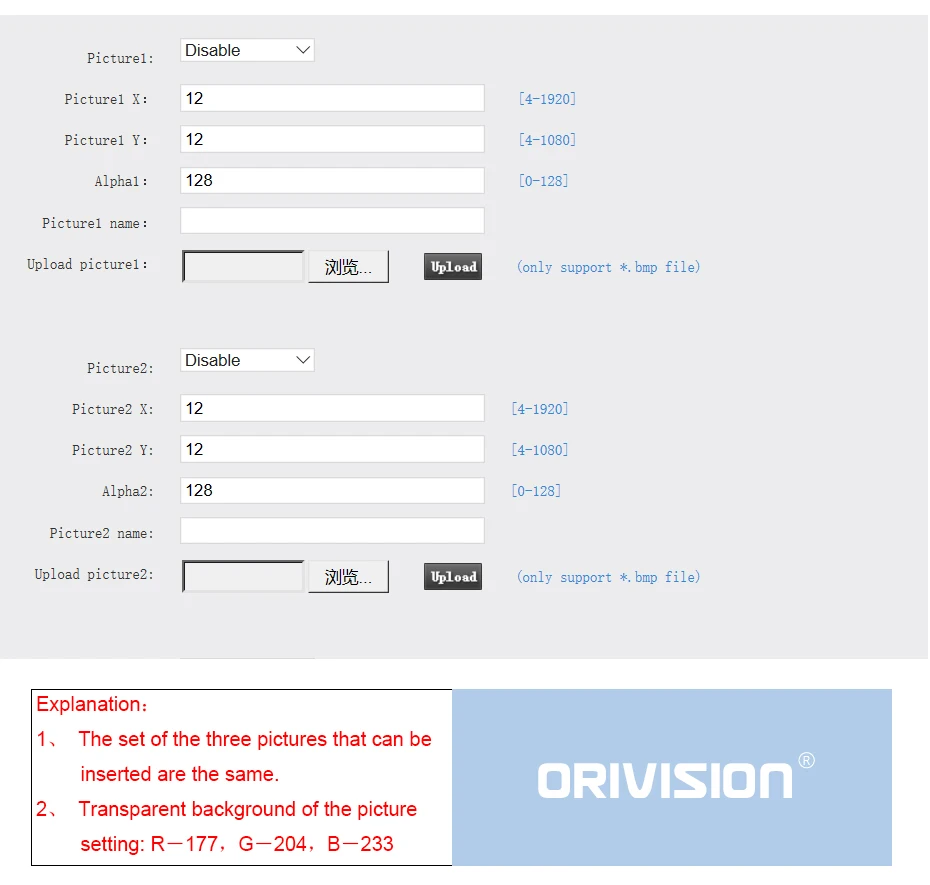

Support image, logo, text parameter settings on the output video streaming

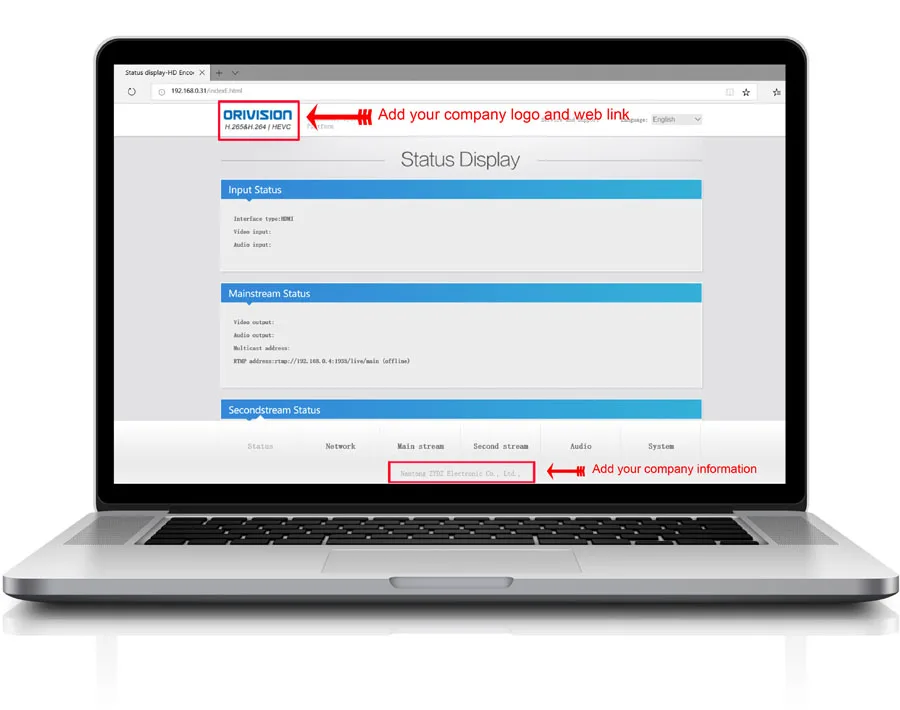

Support English WEB operating interface and language customizable
Support output video streaming resolution setting(Up to 1920 * 1080P /30fps)
Support SDI embedded audio or external audio optional from output video streaming
Support GOP frame rate settings
Support output 2 RTMP (mainstream & 2nd stream) to different streaming media server each channel
Network interface full-duplex mode with 1000M speed
Support two video streamings output (Mainstream and second stream) each channel
Support HDCP and HD blue-ray
A wide area network remote management (Web control panel)
Support different protocol transmission for the mainstream & 2nd stream each channel
Support MP3 and AAC audio coding format selection
A click to restore the default configuration
Stable and effective, support 7 x 24h working time
Support 4, 8, 16 channels 1U /3U chassis structure available, max support 16pcs encoder cards to be installed
