SPECIFICATIONS

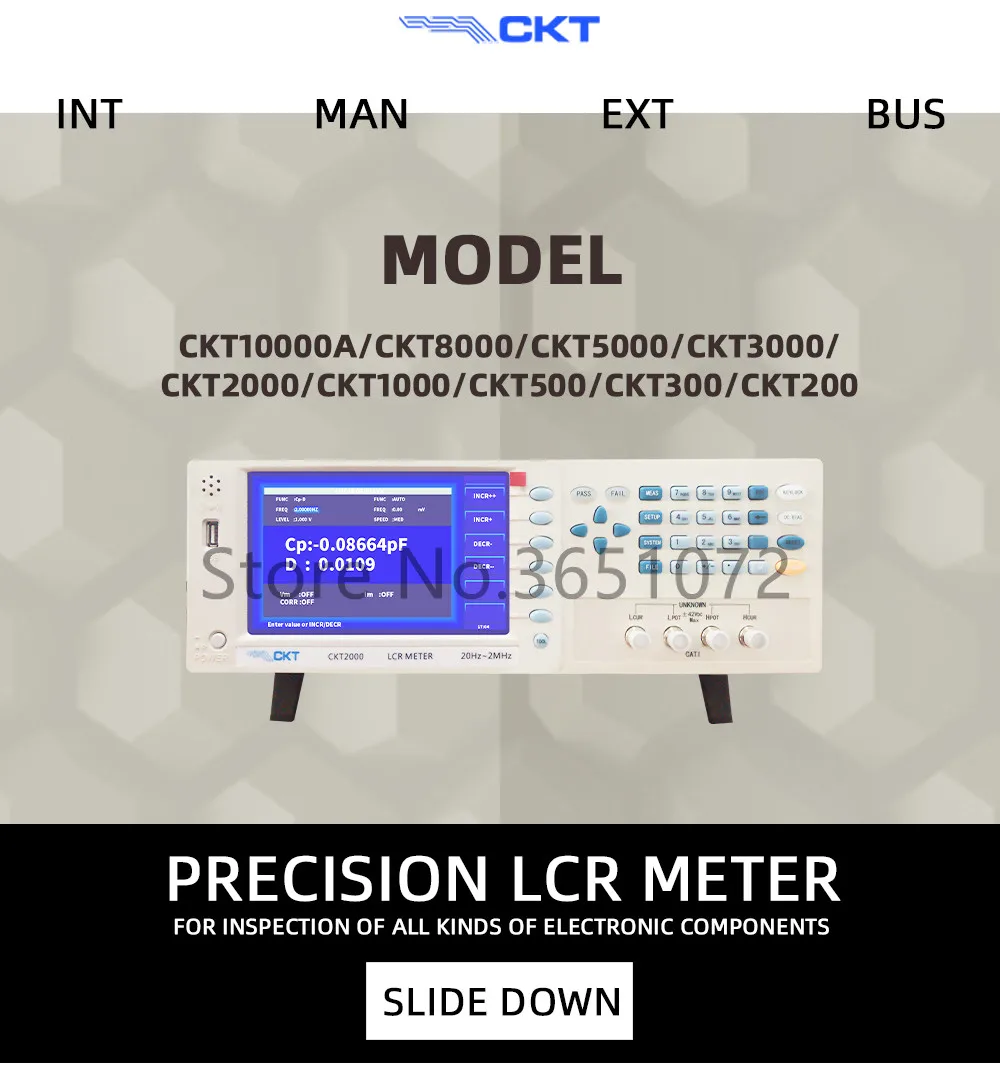

CKT10000A/CKT8000/CKT5000/CKT3000/CKT2000/CKT1000/CKT500/CKT300/CKT200

Precision
Digital LCR Meter

Parameters

| Z|, |Y|, C, L, X, B, R, G, D, Q, θ, DCR

Display Mode

Direct，Δ，Δ%，V/I

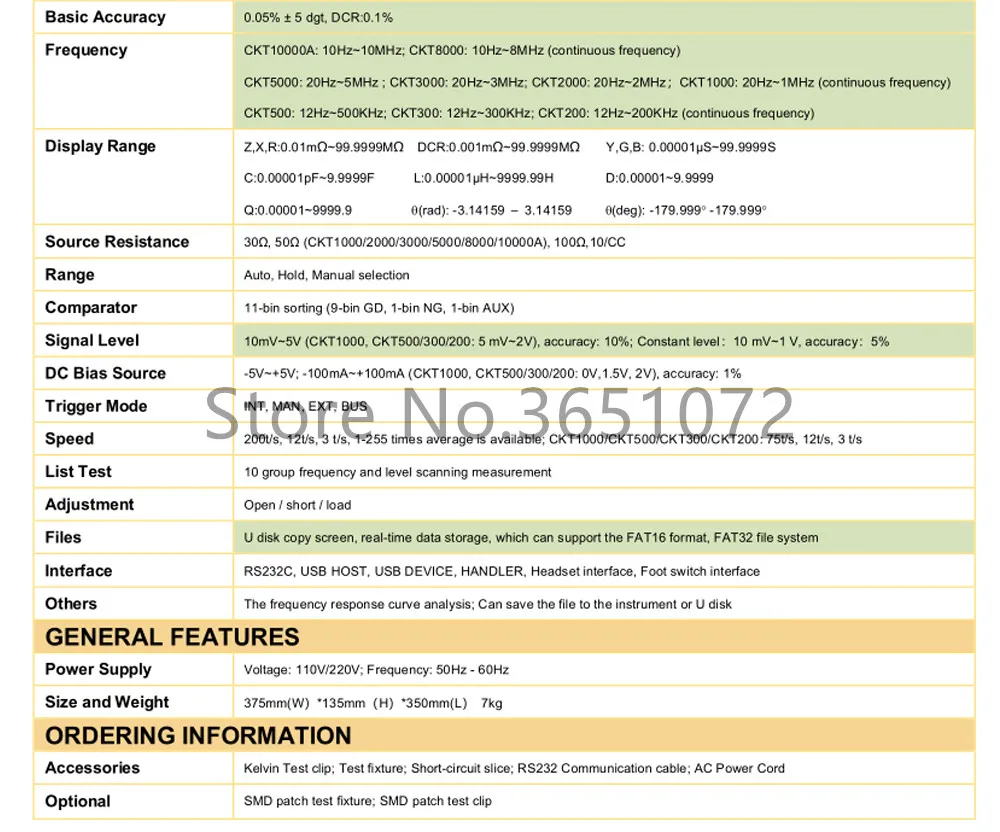

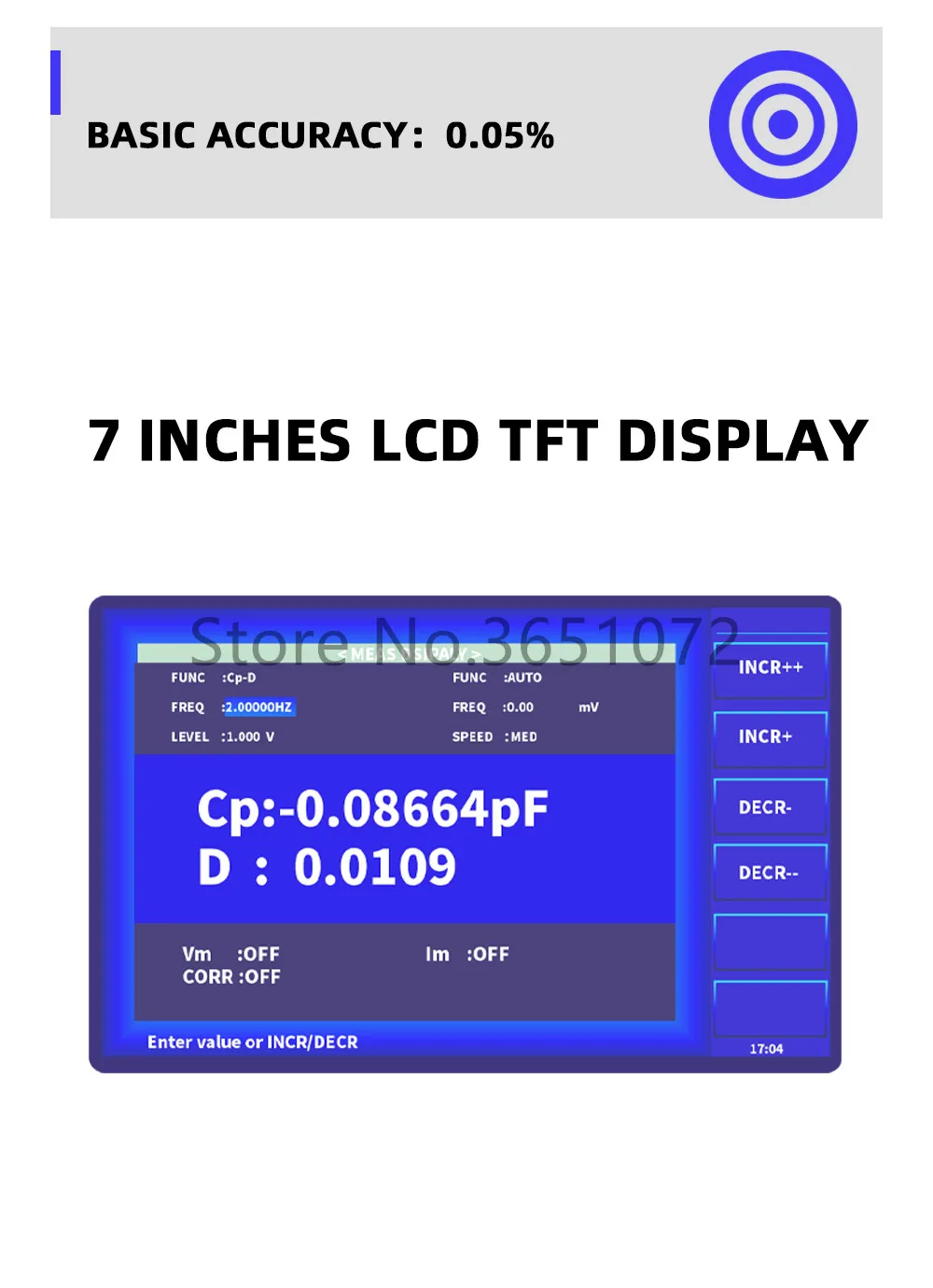

Basic Accuracy

0.05% ± 5 dgt, DCR:0.1%

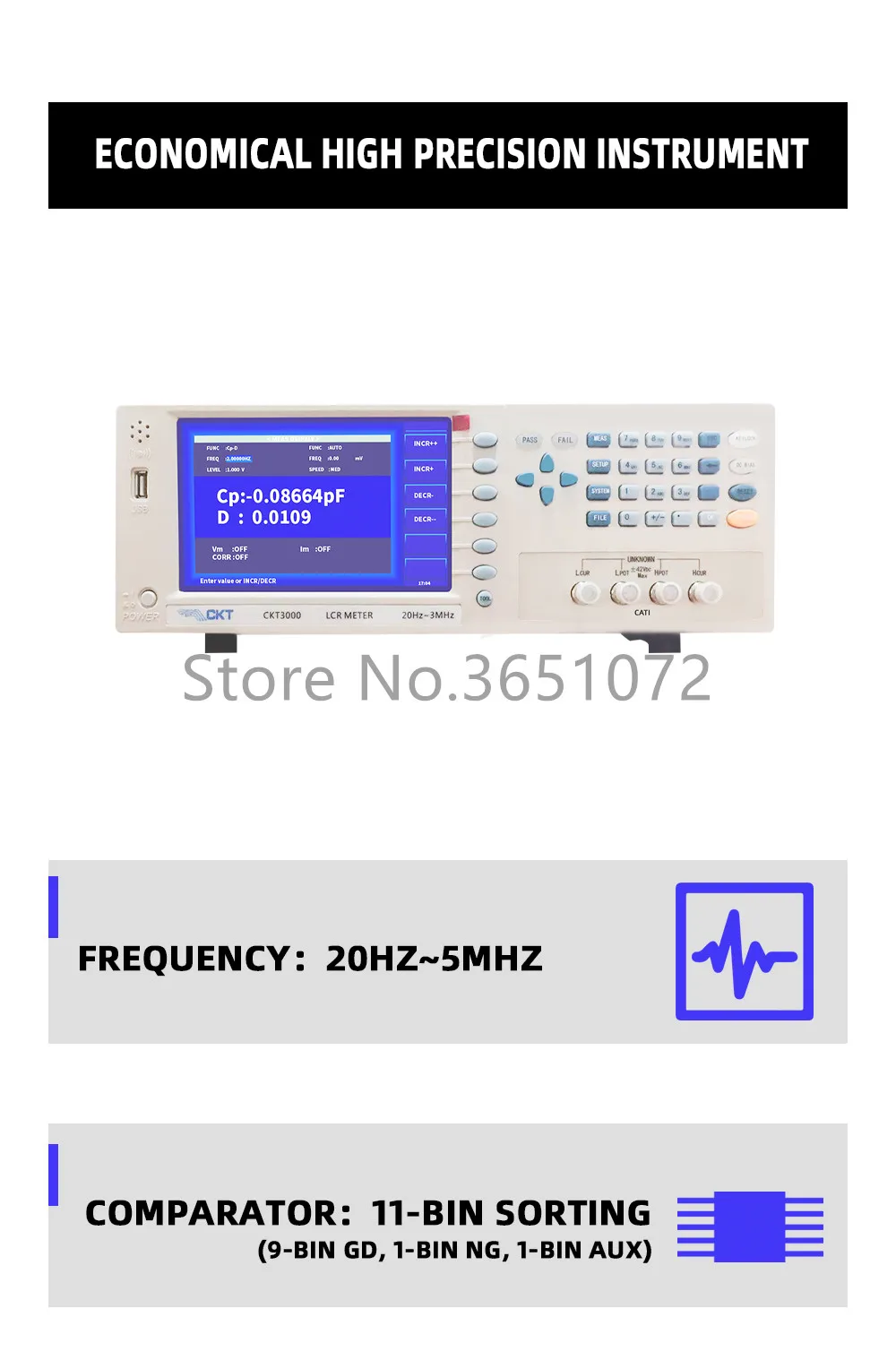

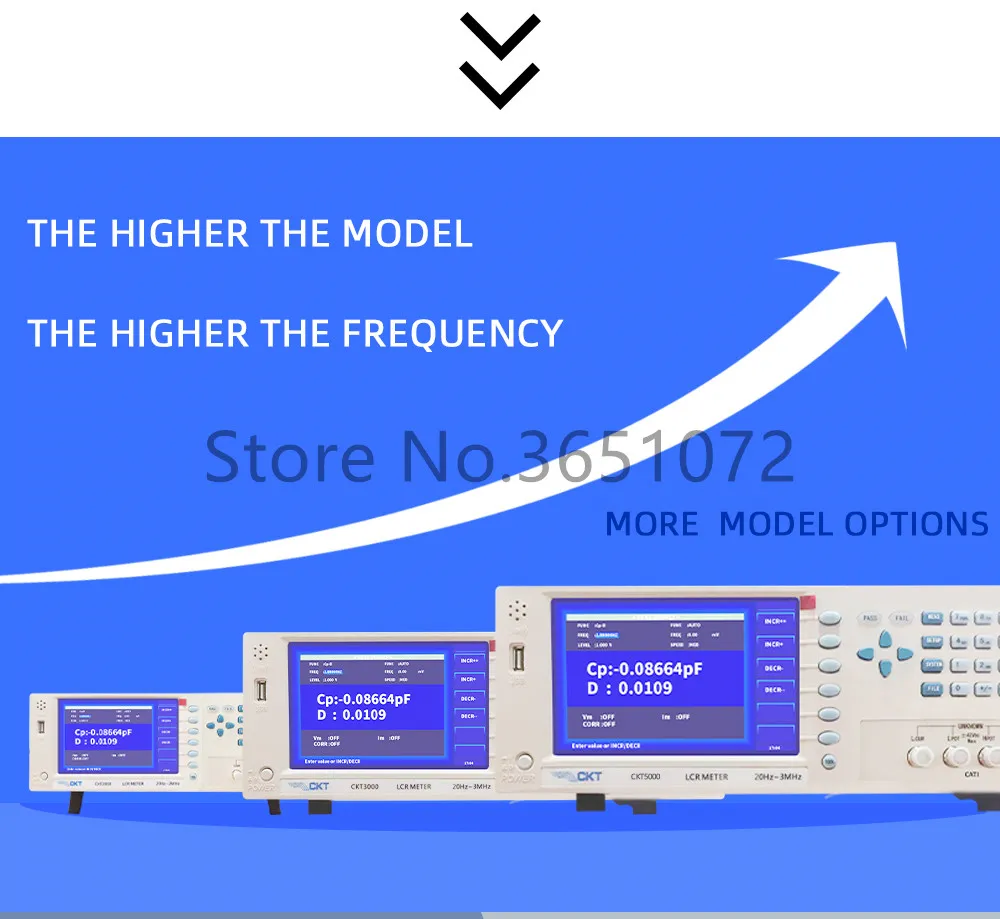

Frequency

CKT10000A: 10Hz~10MHz; CKT8000:
10Hz~8MHz(continuous frequency)

CKT5000: 20Hz~5MHz; CKT3000:20Hz~3MHz; CKT2000:
20Hz~2MHz；CKT1000: 20Hz~1MHz (continuous frequency)

CKT500: 12Hz~500KHz; CKT300: 12Hz~300KHz; CKT200:
12Hz~200KHz (continuous frequency)

Display Range

Z,X,R:0.01mΩ~99.9999MΩDCR:0.001mΩ~99.9999MΩY,G,B: 0.00001µS~99.9999S

C:0.00001pF~9.9999FL:0.00001µH~9999.99HD:0.00001~9.9999

Q:0.00001~9999.9q(rad): -3.14159 – 3.14159q(deg): -179.999° -179.999°

Source Resistance

30Ω, 50Ω (CKT1000/2000/3000/5000/8000/10000A),
100Ω,10/CC

Range

Auto, Hold, Manual selection

Comparator

11-bin sorting (9-bin GD, 1-bin NG, 1-bin AUX)

Signal Level

10mV~5V (CKT1000, CKT500/300/200: 5 mV~2V),
accuracy:10%; Constant level：10 mV~1 V, accuracy：5%

DC Bias Source

-5V~+5V; -100mA~+100mA (CKT1000, CKT500/300/200:
0V,1.5V, 2V), accuracy: 1%

Trigger Mode

INT, MAN, EXT, BUS

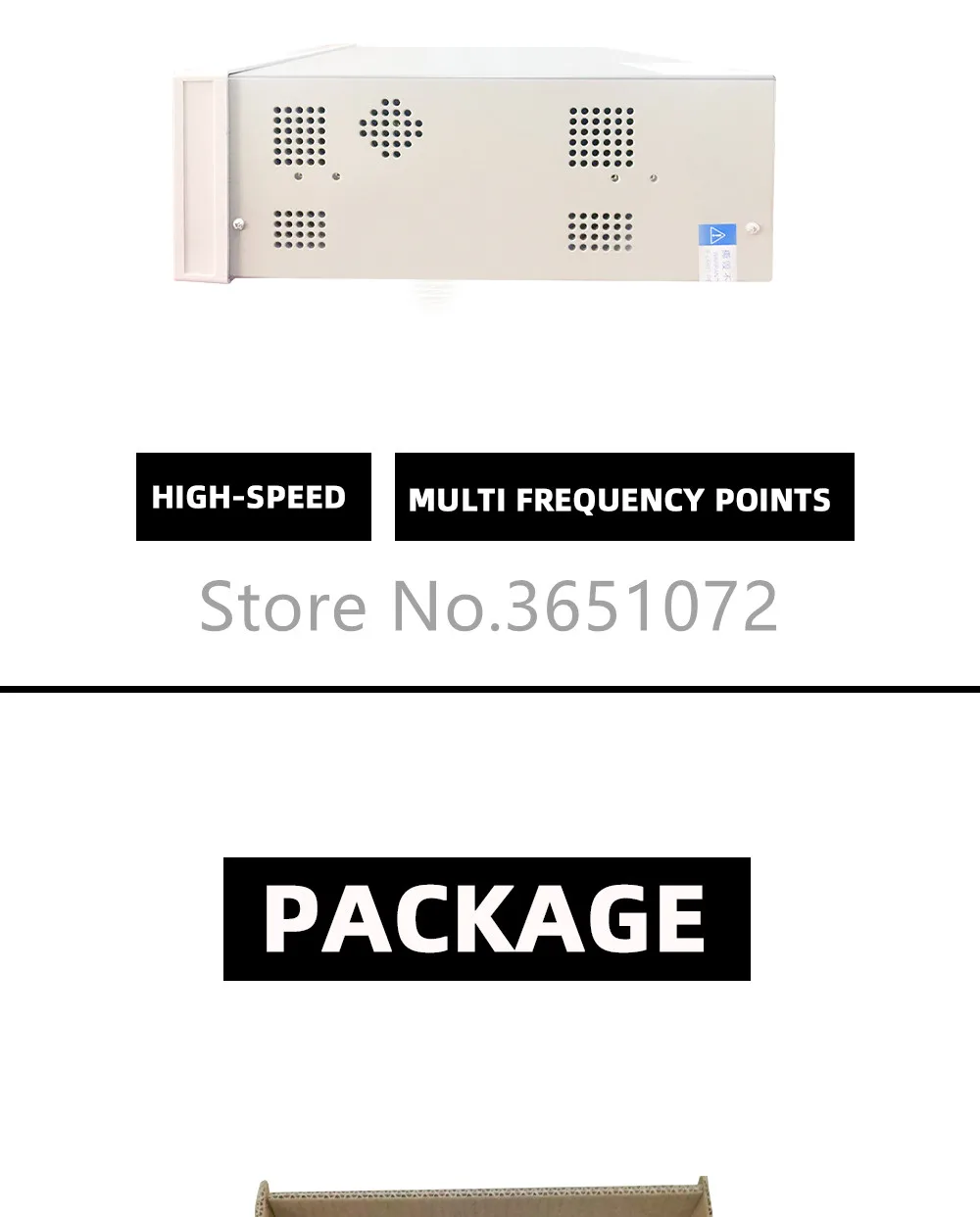

Speed

200t/s, 12t/s, 3 t/s, 1-255 times average is
available; CKT1000/CKT500/CKT300/CKT200: 75t/s, 12t/s, 3 t/s

List Test

10 group frequency and level scanning
measurement

Adjustment

Open / short / load

Files

U disk copy screen,
real-time data storage, which can support the FAT16 format, FAT32 file system

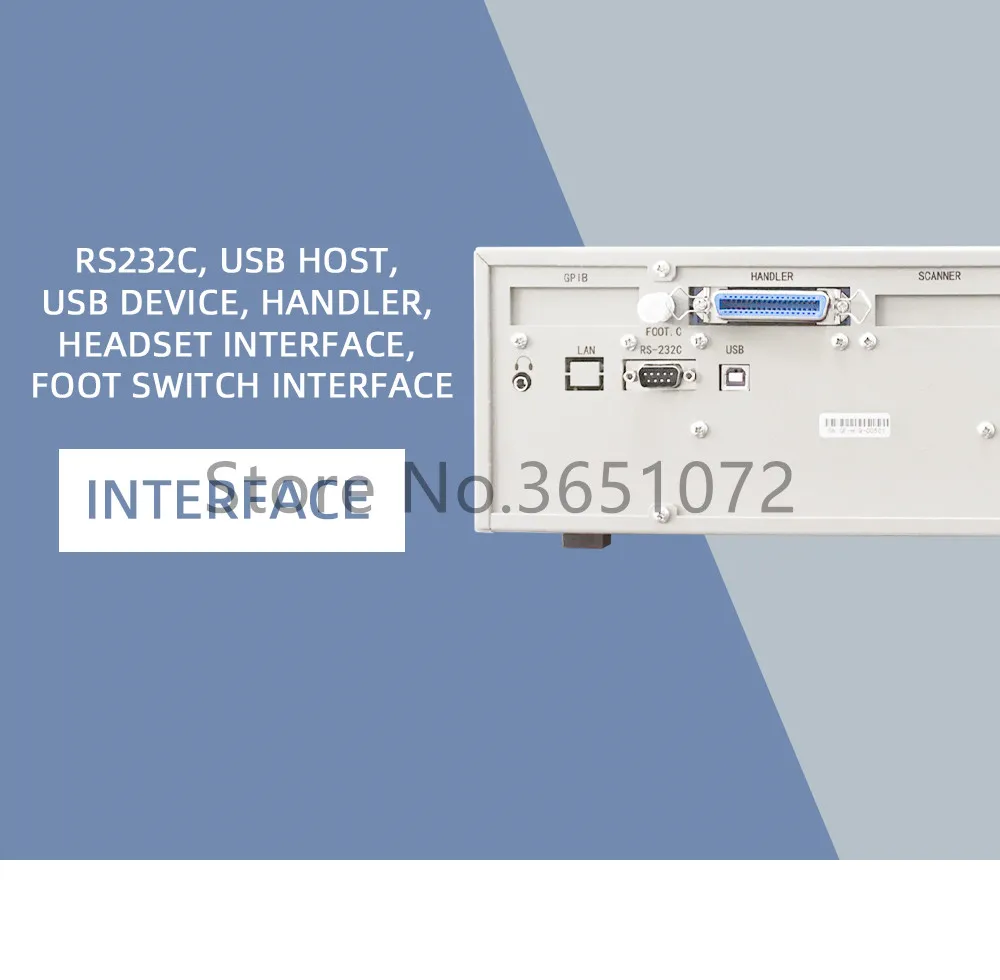

Interface

RS232C, USB HOST, USB DEVICE, HANDLER, Headset interface,
Foot switch interface

Others

The frequency response curve analysis; Can save
the file to the instrument or U disk

GENERAL FEATURES

Power Supply

Voltage: 110V/220V; Frequency: 50Hz - 60Hz

Size and Weight

375mm (W) *135mm (H) *350mm (L); 7kg

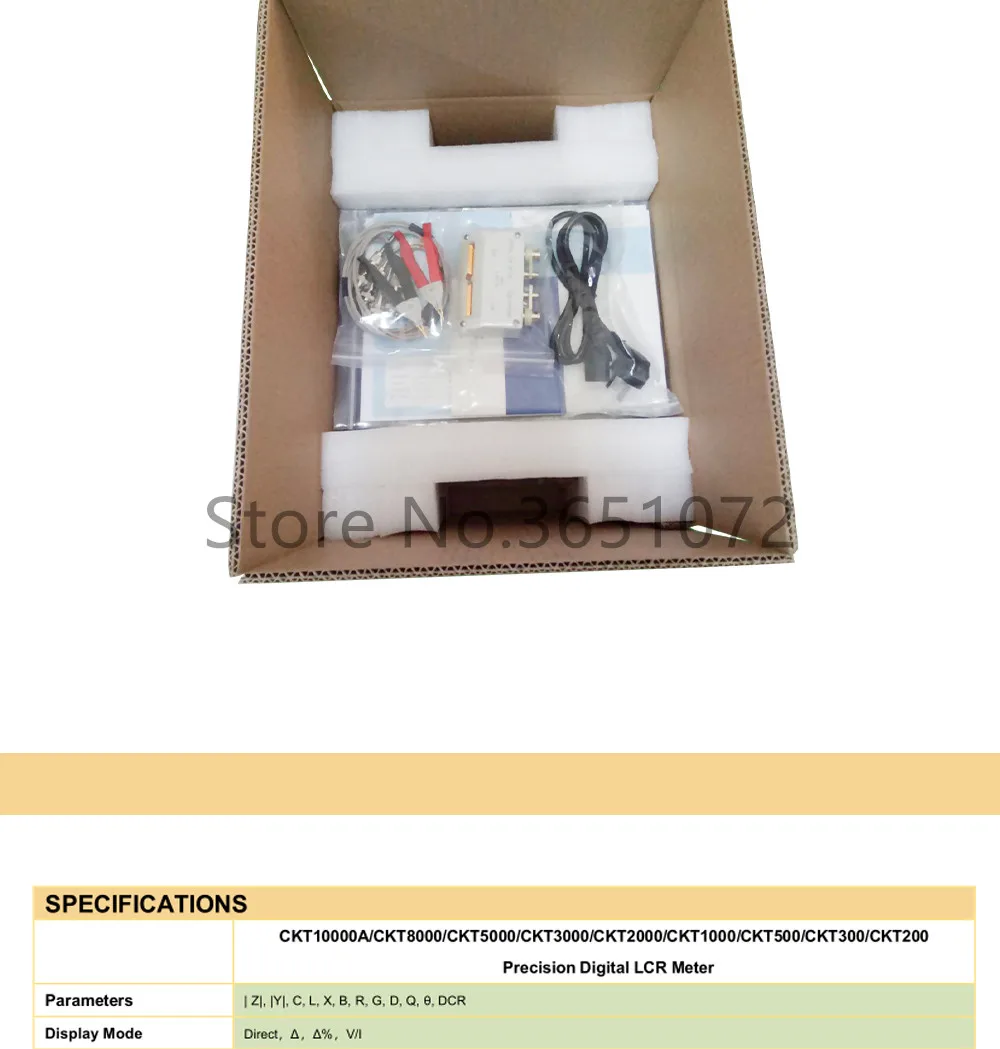

ORDERING INFORMATION

Accessories

Kelvin Test clip; Test fixture; Short-circuit
slice; RS232 Communication cable; AC Power Cord

Optional

SMD patch test fixture; SMD patch test clip
