Highlight Full Display V-3.1 LCD Screen For SEGA Game Gear GG Adjustable Brightness Support VGA output Mod HighLit LCD Kits

For Sega SEGA Game Gear GG Highlight Screen LCD Retrofit Kit V-3.1 Version

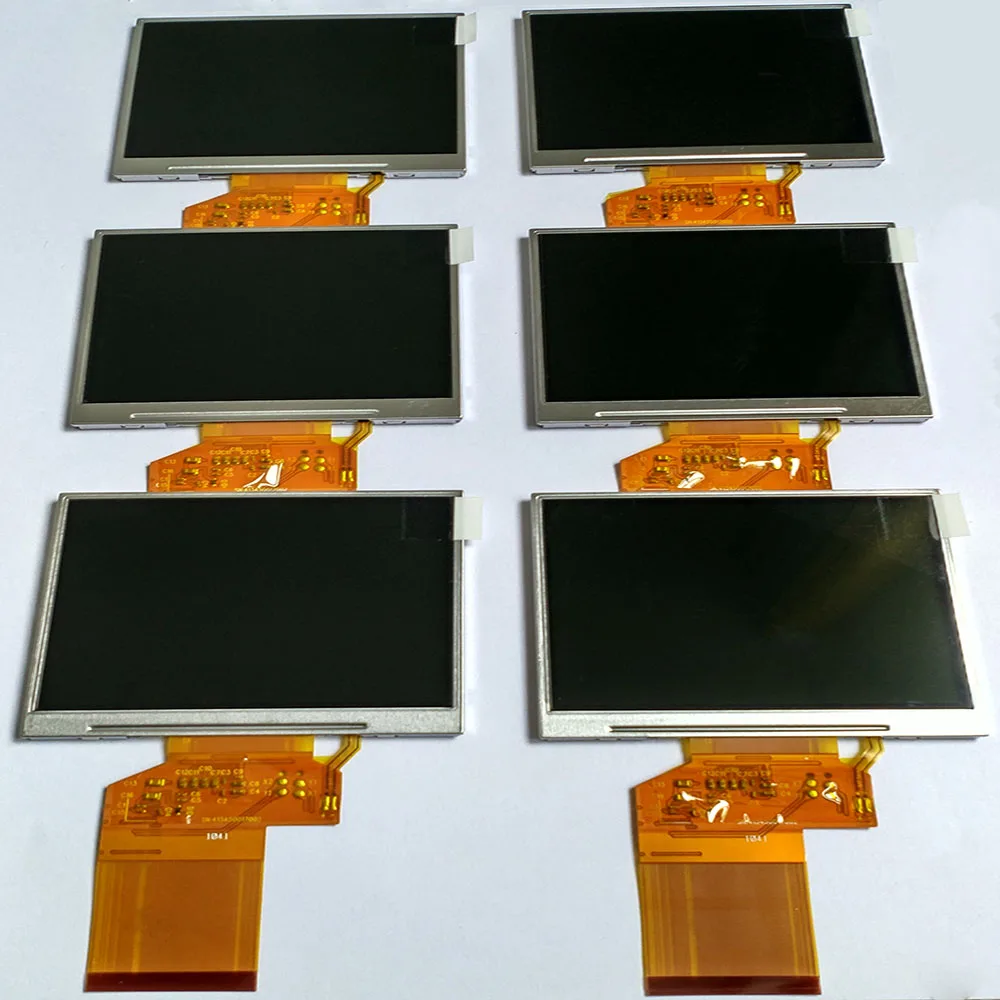

1. 3.5-inch a-Si TFT LCD liquid crystal screen, 320*240 resolution, point-to-point full-screen display, high refresh rate, bright colors

2.Support Sega single chip motherboard and dual chip motherboard:

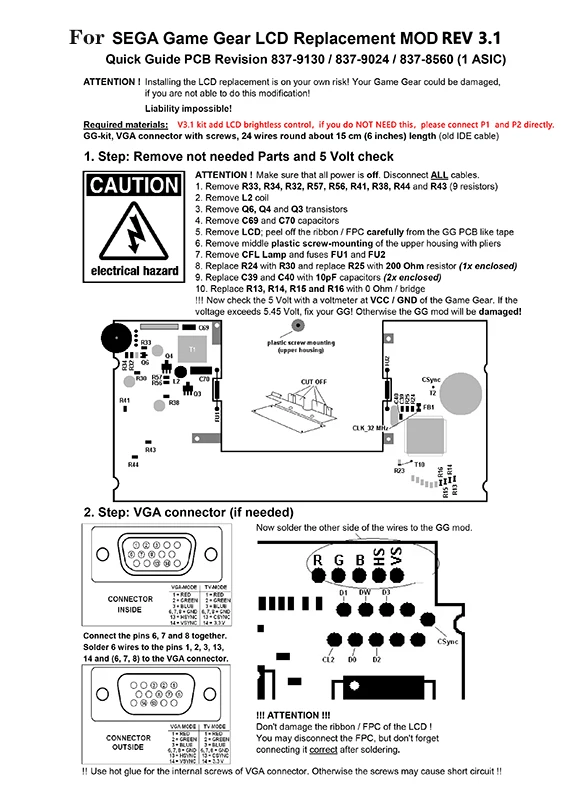

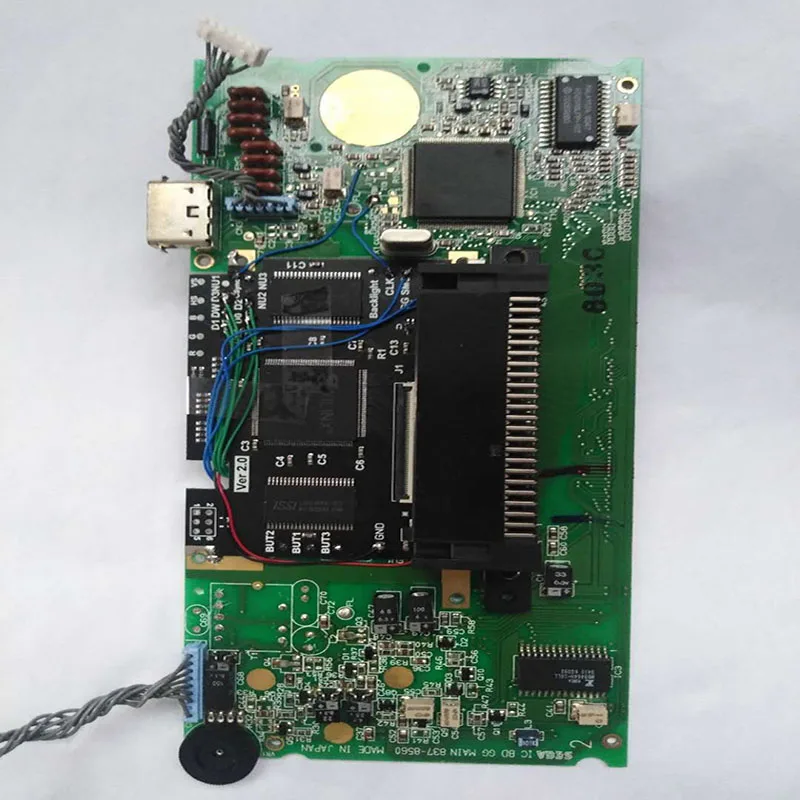

Single chip motherboard:1 ASIC PCB revisions 837-9130 / 837-9024 / 837- 8560

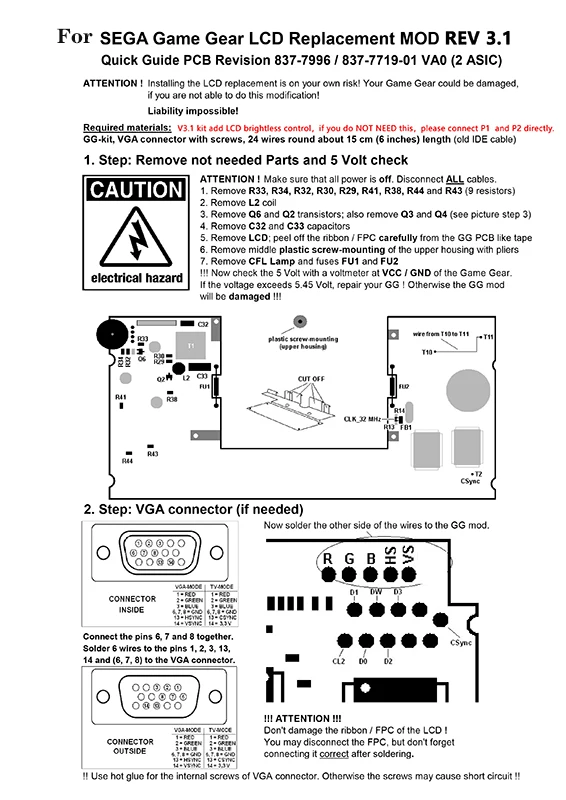

dualchip motherboard:2 ASIC PCB revisions 837-7996 / 837-7719-01 VA0

3.Not supported: Majesco Game Gear VA4 / VA5

NOTE:The motherboard with the "MADE IN TAIWAN" logo on the motherboard of the game console does not support

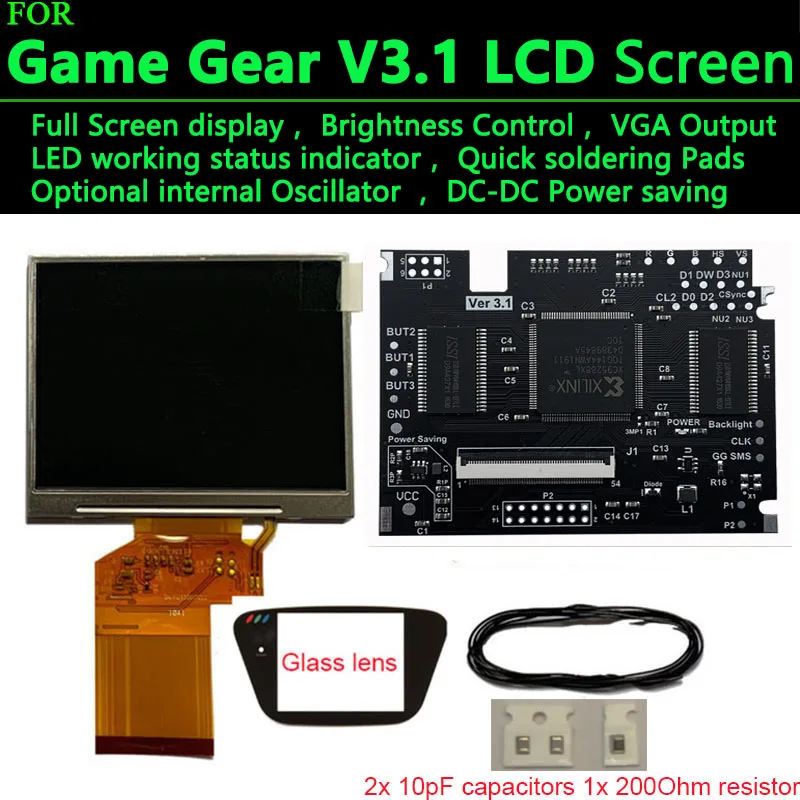

Package included:

1x 3.5-inch LCD screen

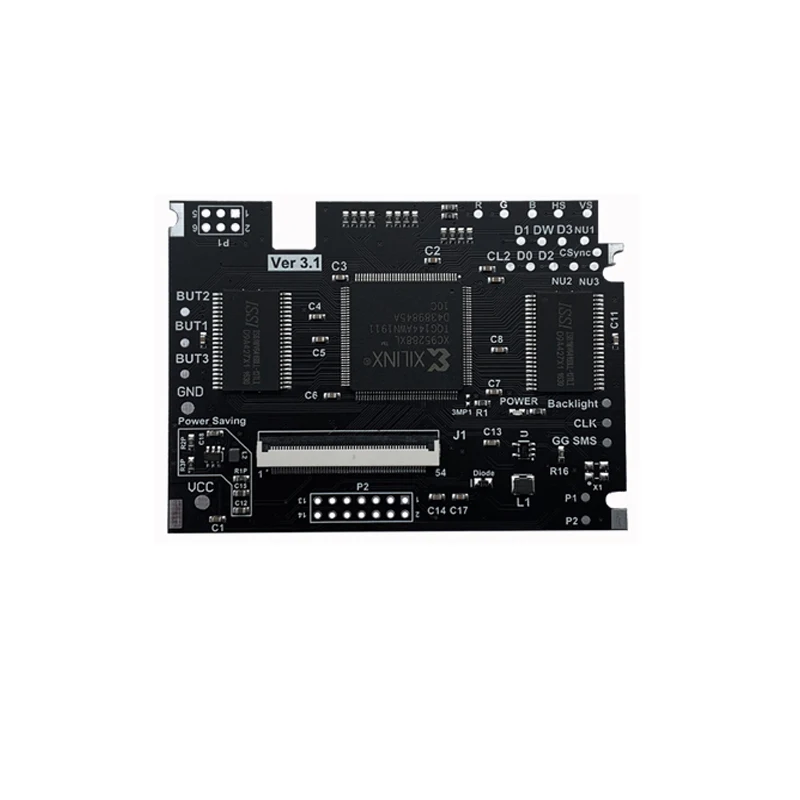

1x Screen drive board

1x Several wires

2x 10pF capacitors

1x 200Ohm resistor

if you need Glass screen lens，you can choose： with Glass lens set

There are 3 options, what you choose is what you get

V-3.1 New features：

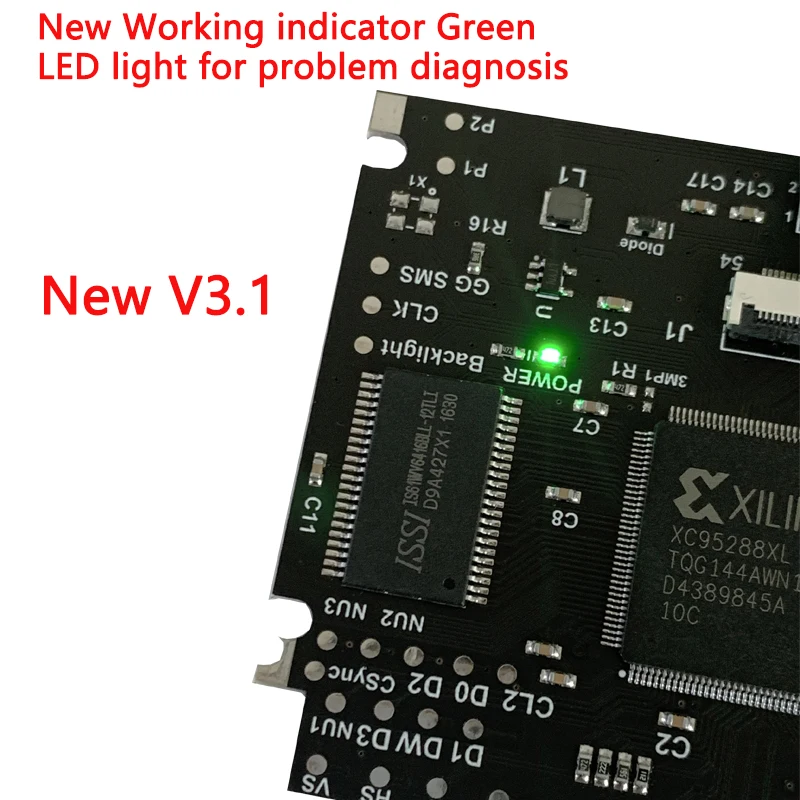

1: Increase the working status indicator, which can quickly judge the working status

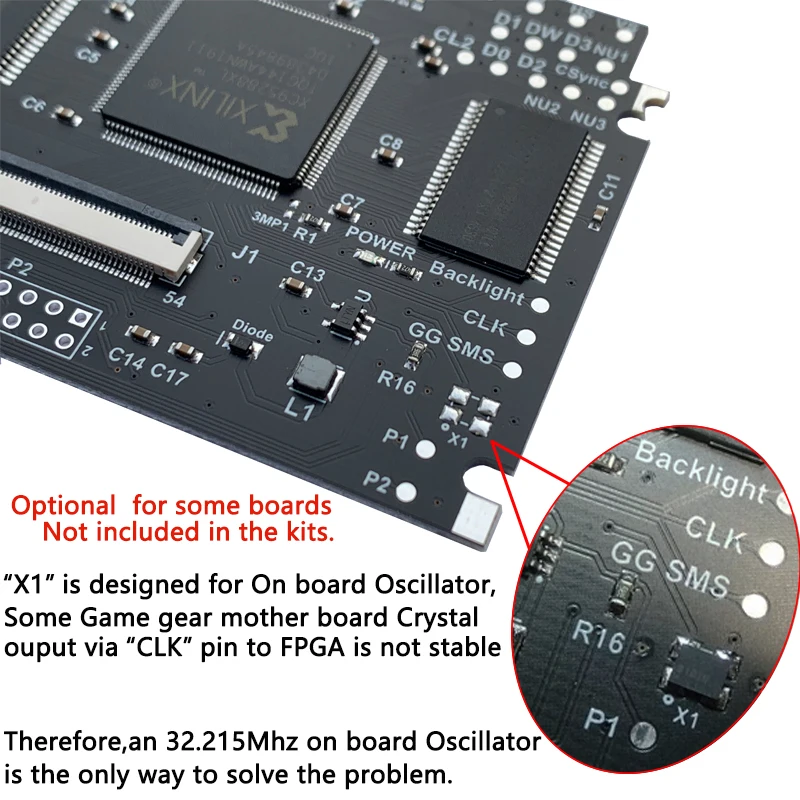

2: Increase the position of 3225 X1 active crystal oscillator. For individual motherboards with interference, you can choose to install the built-in crystal oscillator yourself.

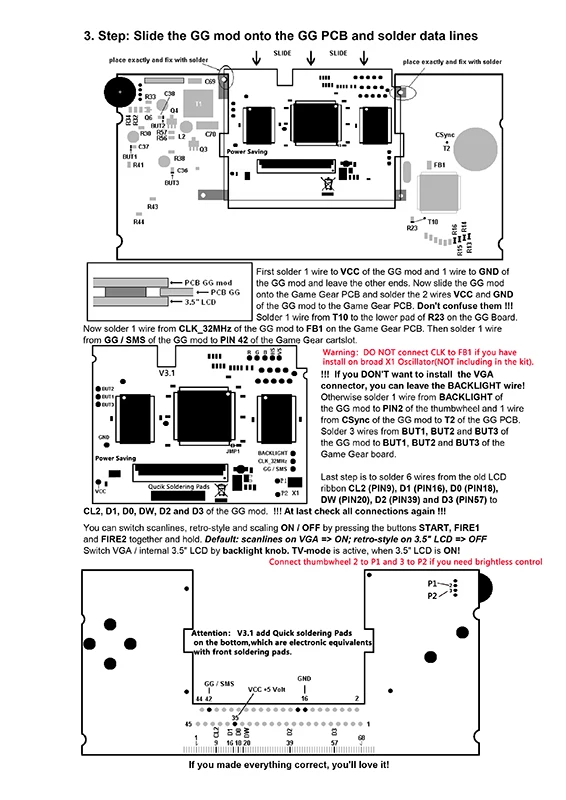

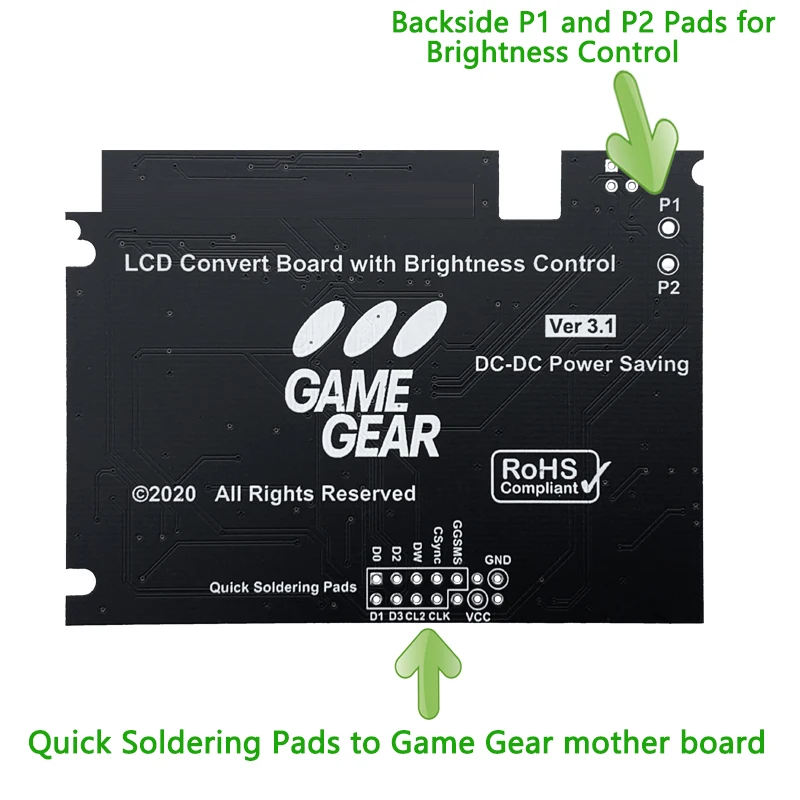

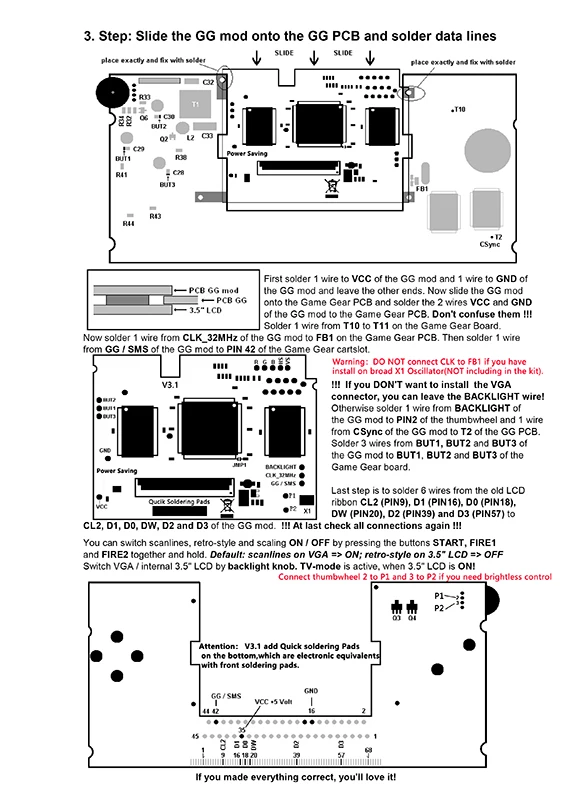

3: Add P1 and P2 quick welding points on the back

V2-B version improvements:

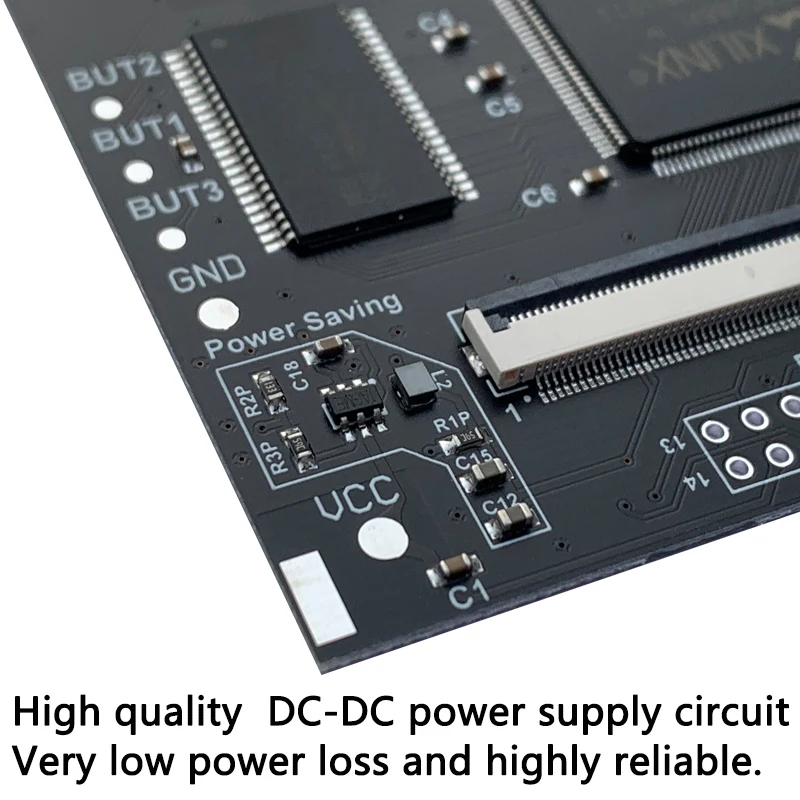

①Power saving design with DC-DC power supply chip,MP1471chip.

② Better SMS Game compatibility.

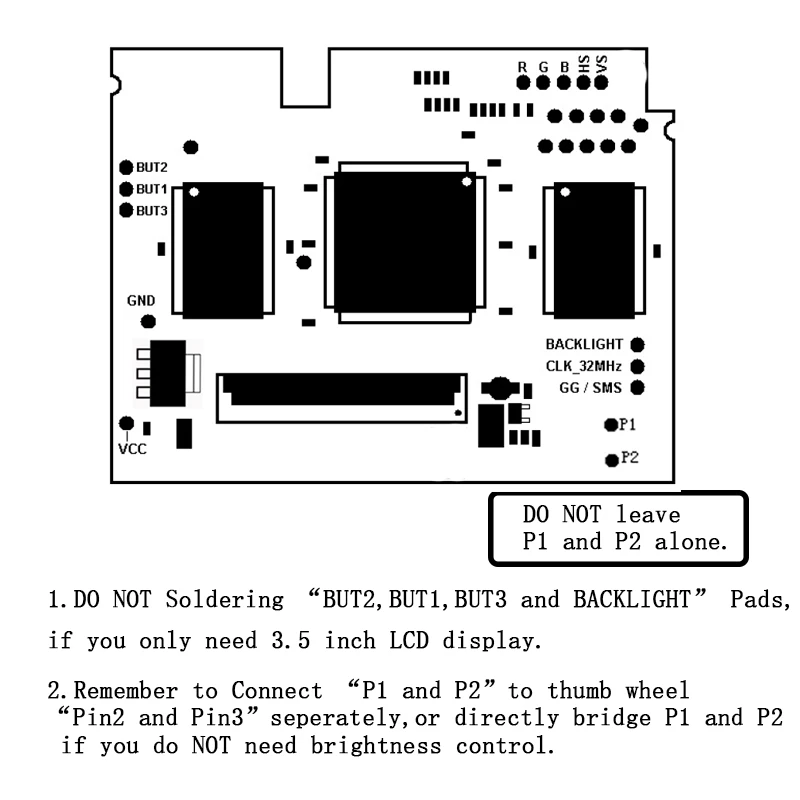

③Add P1 P2 label，Add 3MP1 jumper point.

④High quality PCB than V1 and V2.

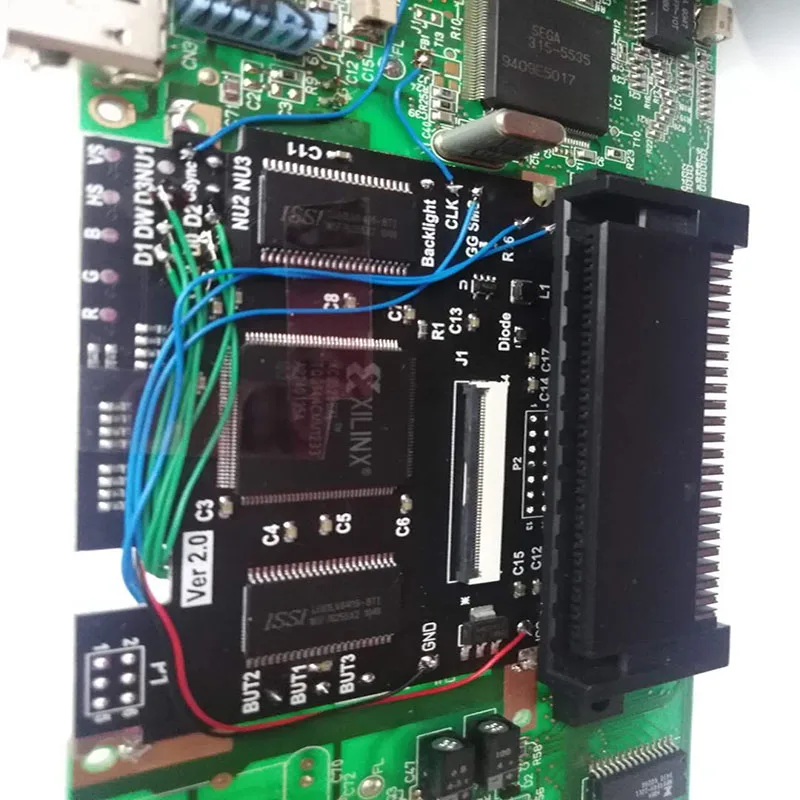

V2 version improvements:

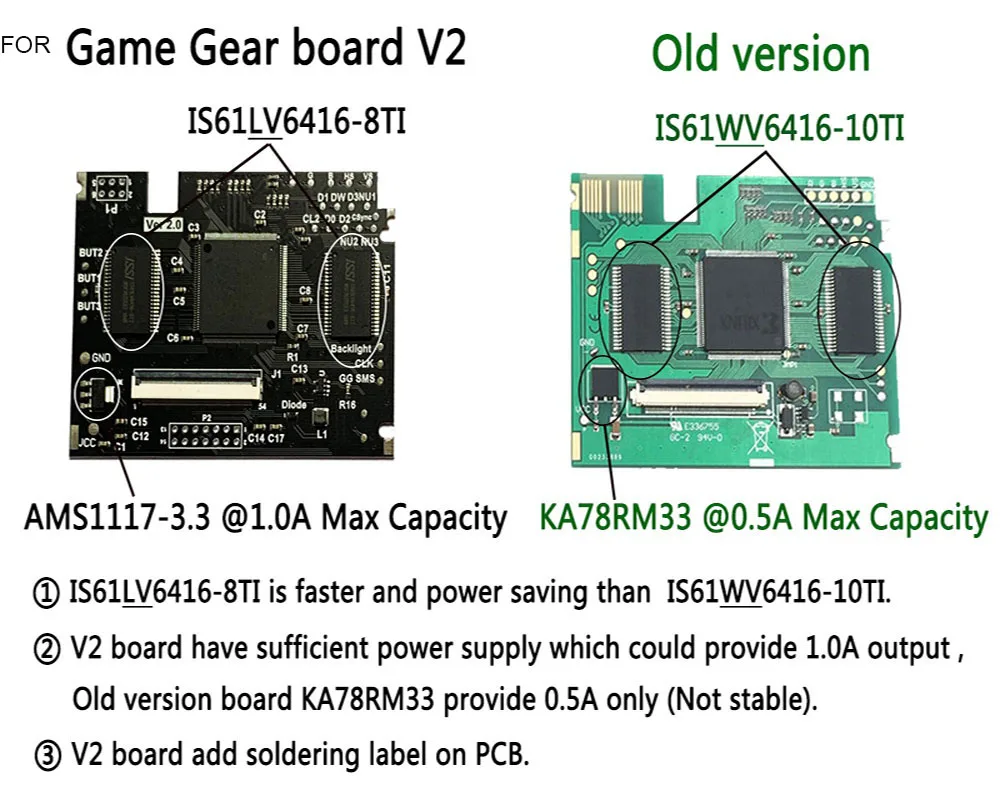

① The model of SRAM cache chip is changed from IS61WV6416-10TI to IS61LV6416-8TI, which is more power-saving, faster and has no image tearing.

② The power supply is improved to AMS1117 3.3, the maximum load is 1.0A, and the operation is more stable

③ Replacement of backlight drive circuit to reduce power consumption

④ Welding marks are newly added to optimize the position of welding points, making welding easier
