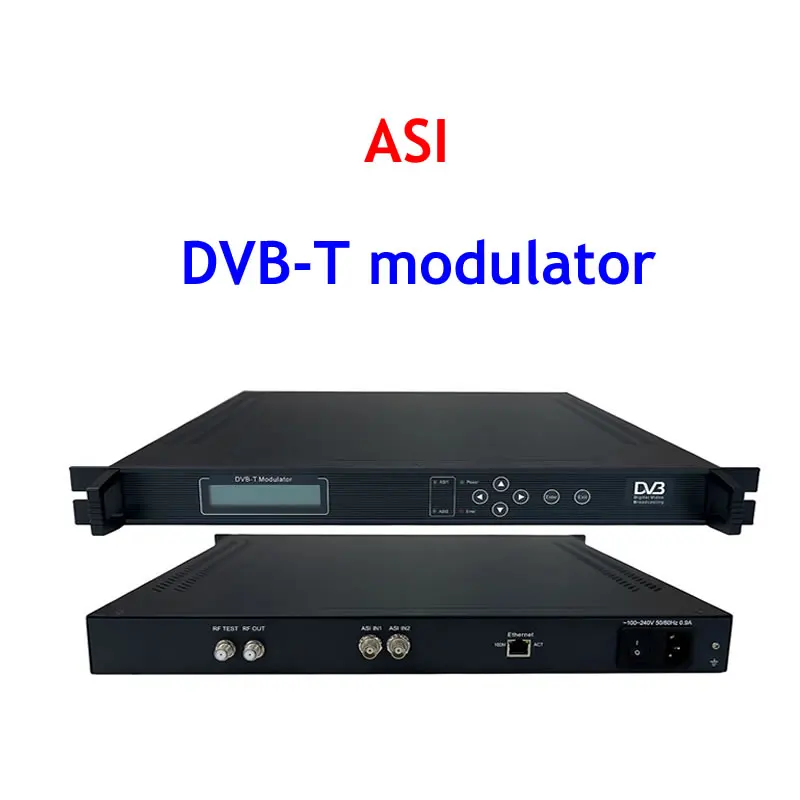

ASI to DVB-T modulator COFDM Terrestrial DVB-T Modulator CATV RF modulator(ASI/IP IN DVB-T RF out) SC-4106

SC4106 ASI DVB-T

Overview

DVB-T Modulator supports all DVB-T standard channel coding and modulation parameters. It meets DVB-T and EN300744 standards, supporting FEC and RS correction and encoding, which makes it convenient to connect other analogue and digital signals, such as video conference, internet and IP phone and other DVB standard equipment. It is suitable for HFC, MMDS and 8GHz broadband digital system.

Features

1. Comply with DVB-T, EN300744

2. ASI input

3. PID filtering and re-mapping

4. LCD/Keyboard control by front panel and network management by Ethernet

Technical Specification





Input

ASI

DVB standard, BNC interface

Modulation

Standard

DVB-T (EN300744)

Transmode

2K, 8K

Bandwidth

6M, 7M, 8M

Constellation

QPSK, 16QAM, 64QAM

Protection Interval

1/4, 1/8, 1/16, 1/32

Baudrate

1/2, 2/3, 3/4, 5/6, 7/8

Output

Interface

RF, F-head

Impedance

75Ω

Level Attenuation Range

-26dbm~+3dbm (0.1db step)

Frequency Range

30~960MHz, 1Khz step

MER

≥ 42db

Control

network RJ-45, 10/100M

Keyboard+LCD

General Features

Size

482mm×280mm×44mm

Temperature Range

0~45°C (Operation); -20~80°C (Storage)

Power

100-240VAC, 50Hz, 25W



Network Management

Device can be configured by Network Management Software. Below is an example of Video/Audio confirguration interface screenshot.

Network Management Software: http://211.149.232.3/download/DvbManager.exe

 asi dvbt dvb-t rf modulator for digital tv project

Related Products

Similar Products



Supporting Products

   Typical Application

 This product is mainly used for Hotel Coaxial RF (DVB-T) System, DVB-T wireless TV system.  It's called as DVB-T COFDM Modulator , Terrestrial wireless RF modulator, ASI to DVB-T converter, radio tv broadcasting modulator etc.
