File Download Way

1, User manual, PC software installation instruction and PC software and Android APP download link: https://www.mediafire.com/folder/l44s11h6c8gdg/DT24P
2, IOS APP: search E_test on iphone APP store to download
3. Android APP: https://www.mediafire.com/file/0jiio43c0vuu1wx/U_Meter-Phone_mobile.apk/file

Product use

This product is used to test the capacity of various batteries, discharge and age various power adapters, and detect the voltage, current, and other parameters of various DC power supplies.

Product Size

Installation size: length 76mm X width 53mm
Panel size: length 85.7mm X width 63mm
Electrical parameters:
Voltage measurement range under test voltage power supply mode: 0 ~ 1000V
Voltage measurement range in independent voltage supply mode:5 ~ 24V
Measuring power range: 0 ~500000W (0 ~ 500 kW)
Measuring current range: 0 ~ 500A

Reminder

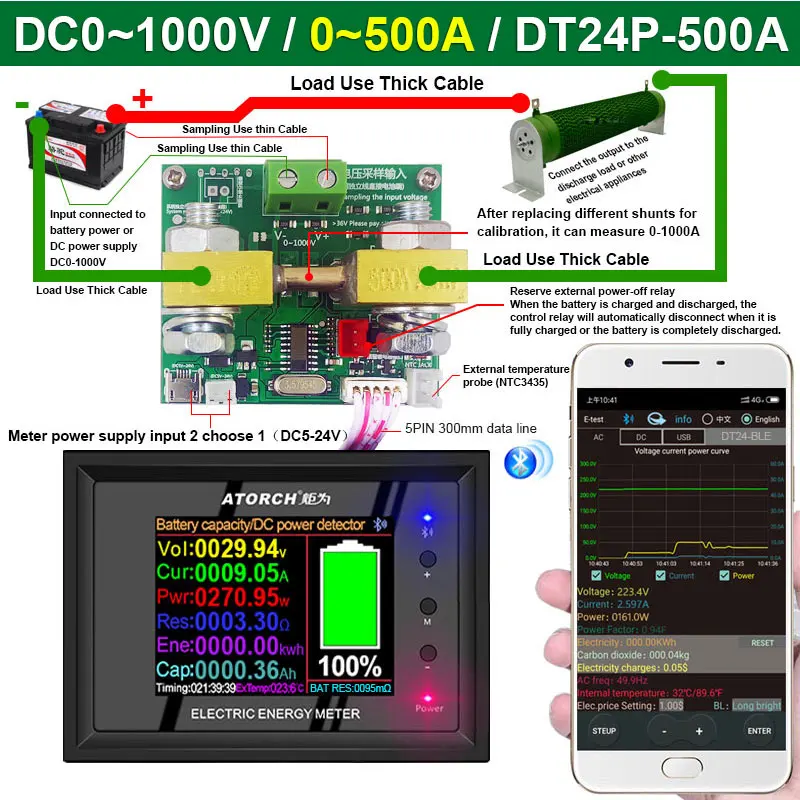

If you enable the external power-off relay, please be sure to supply the system with independent power supply 5V /> 1A power supply to avoid the failure of the relay control current and system instability

Voltage accuracy evaluation

Current accuracy evaluation

7 in 1 Large Screen 2.4 Inch HD Wide Color Screen Interface Design

Application modification

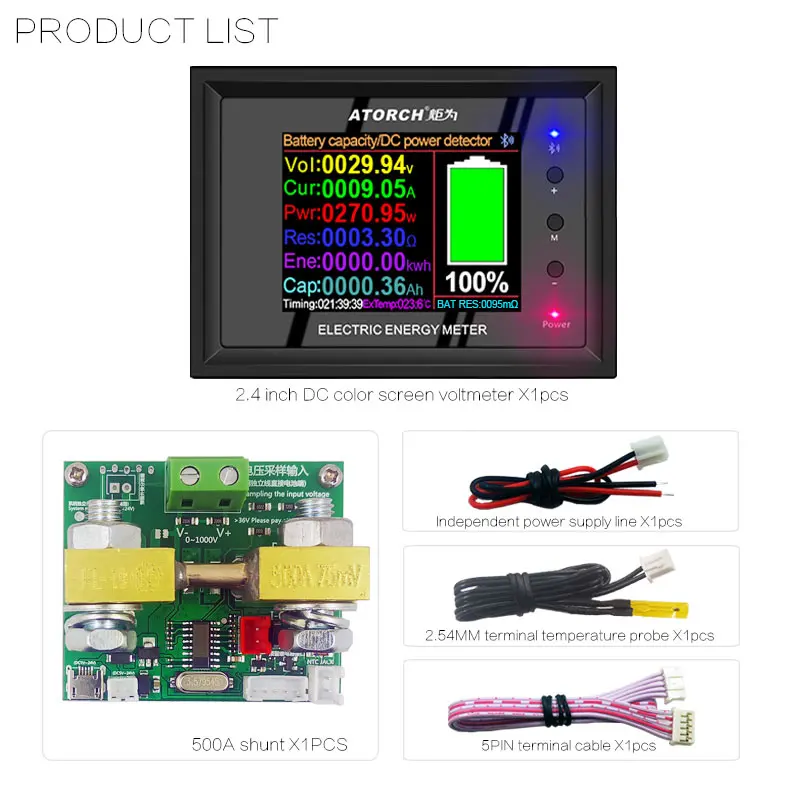

Products List

1.2.4 inch DC color screen voltmeter X1pcs
2.2.54MM terminal temperature probe X1pcs
3.500A shunt x1pcs
4.Independent power supply line X1pcs
5.5PIN terminal cable X1pcs
